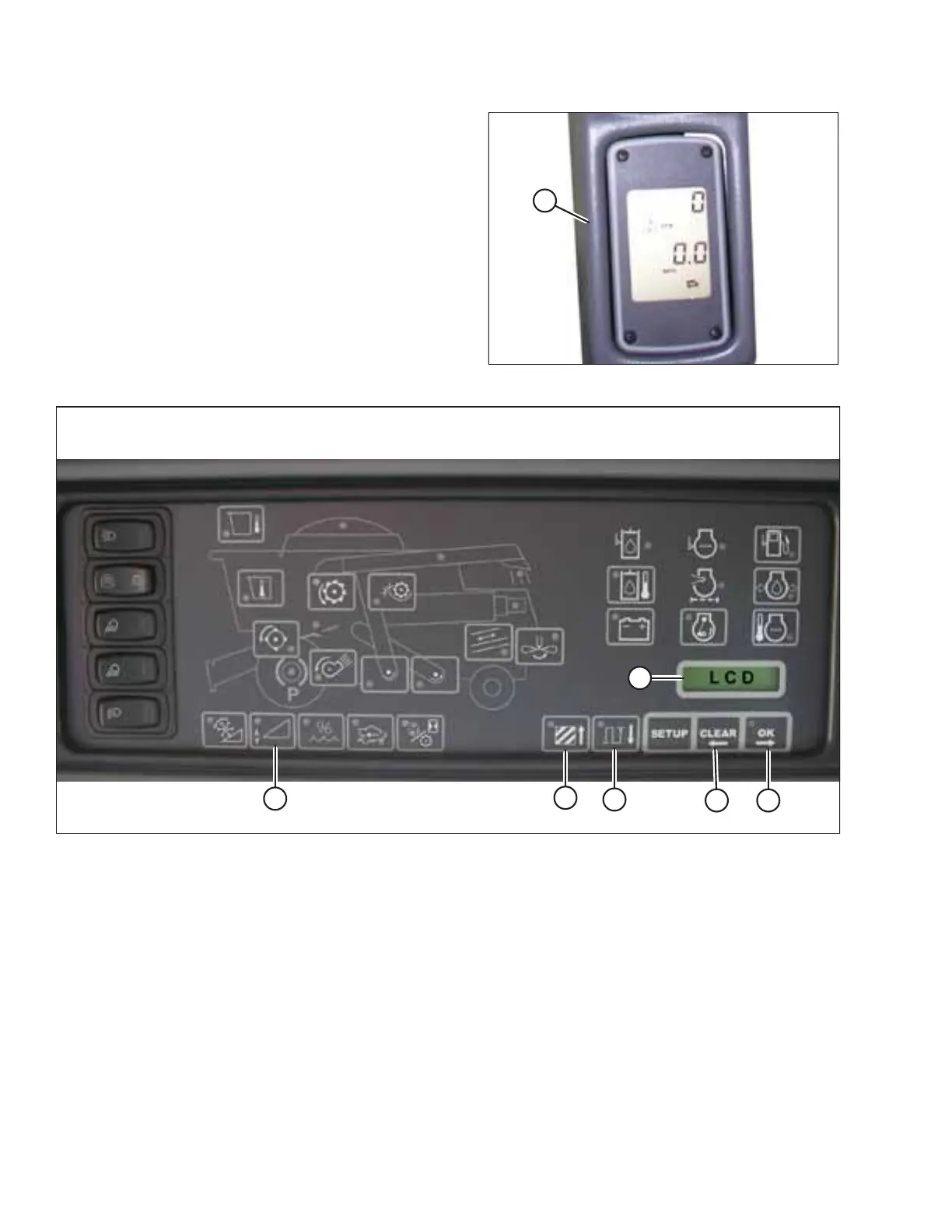

Figure 4.140: Tachometer
Display type
Errors will appear on tachometer (A) as XX or XXX.
1003626
A
B
C
D
E
F
Figure 4.141: Combine Heads-Up Display
Errors will appear on LCD (A) as XXX cm or XX in.
Alarm conditions
If an error message is received from the fuse panel, an alarm will sound. The LCD on the electronic instrument panel (EIP)
indicates a header system error as HDR CTRL followed by HGT ERR for height, and HDR CTRL followed by TILT ERR for tilt.
The header height LED will flash yellow twice per second.
When this alarm occurs, a buzzer will also sound 5 times every 10 seconds.
When an alarm condition occurs, a green LED begins flashing; the LED will be green, yellow, or red. A message will also
appear on the LCD which explains the nature of the alarm (for example: HYD TEMP, OPEN, SHRT).
Diagnostic fault failures
Pressing header height switch (B) for a minimum of 5 seconds will put the EIP in header diagnostic mode. LCD (A) will
display the message HDR DIAG when the EIP has entered header diagnostic mode.
