MacDon FlexDraper FD75 - Page 253

214323 235 Revision B
1003571
A
B

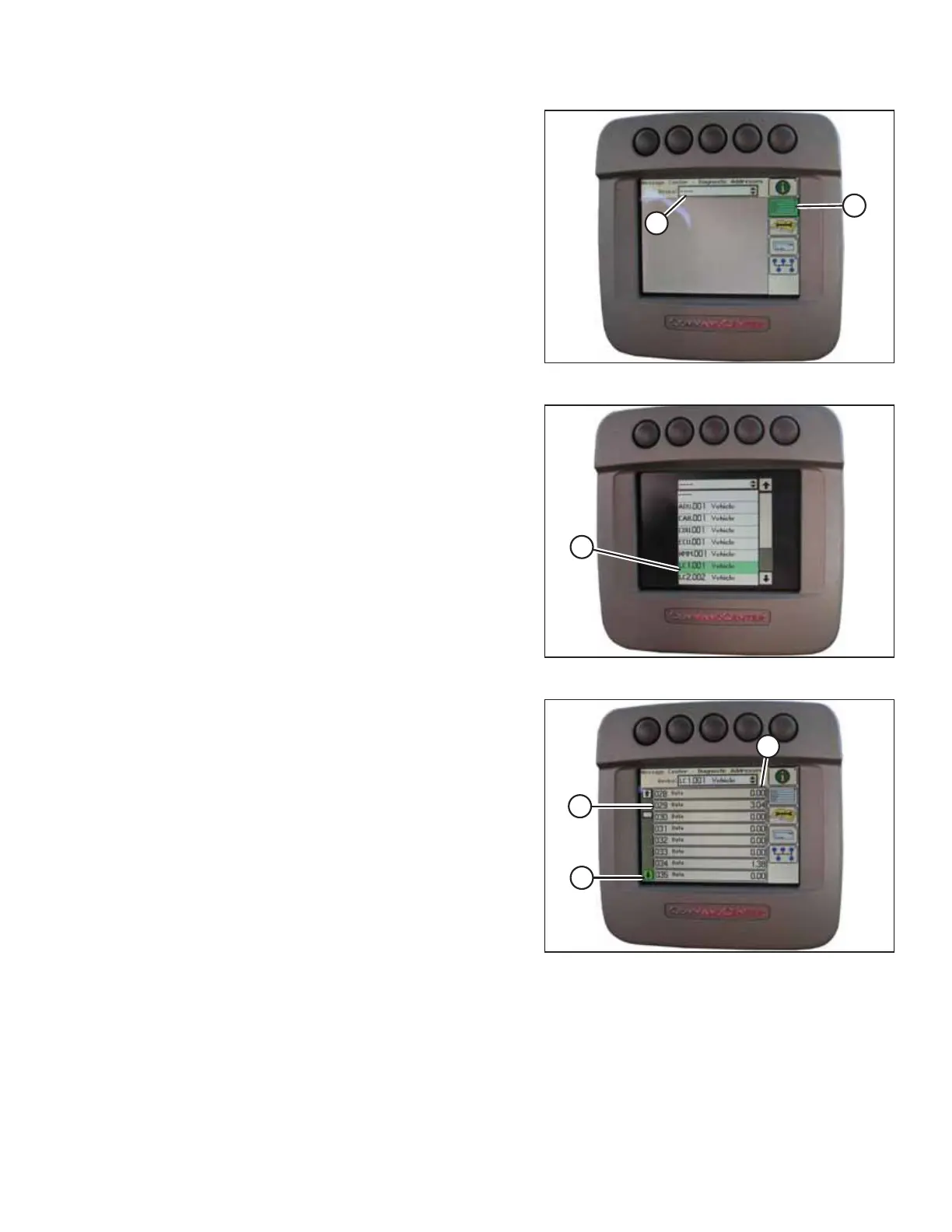

Figure 4.207: John Deere Combine Display
7. Use the scroll knob to highlight DIAGNOSTIC ADDRESSES (A)
from the right column. Select it by pressing the check mark
button.
8. Use the scroll knob to highlight drop down box (B). Press
the check mark button to select it.
1003572
A
Figure 4.208: John Deere Combine Display
9. Use the scroll knob to highlight LC 1.001 VEHICLE (A). Press
the check mark button to select it.
1003573
B
A
C
Figure 4.209: John Deere Combine Display
10. Use scroll knob to highlight down arrow (A) and press the
check mark button to scroll through the list until 029
DATA (B) is displayed and voltage reading (C) appears on
the combine display.
11. Ensure that the header float is unlocked.
12. Start the combine and fully lower the feeder house to the
ground.
NOTE:
You may need to hold the HEADER DOWN switch for a few
seconds to ensure that the feeder house is fully lowered.
13. Check the sensor reading on the monitor.
14. Raise the header so that it is just off ground and recheck
the sensor reading.
15. If the sensor voltage is not within the low and high limits or if the range between the low and high limits is insufficient,
refer to 4.4.2 Adjusting Voltage Limits, page 137.
AUTO HEADER HEIGHT CONTROL
