214323 243 Revision B

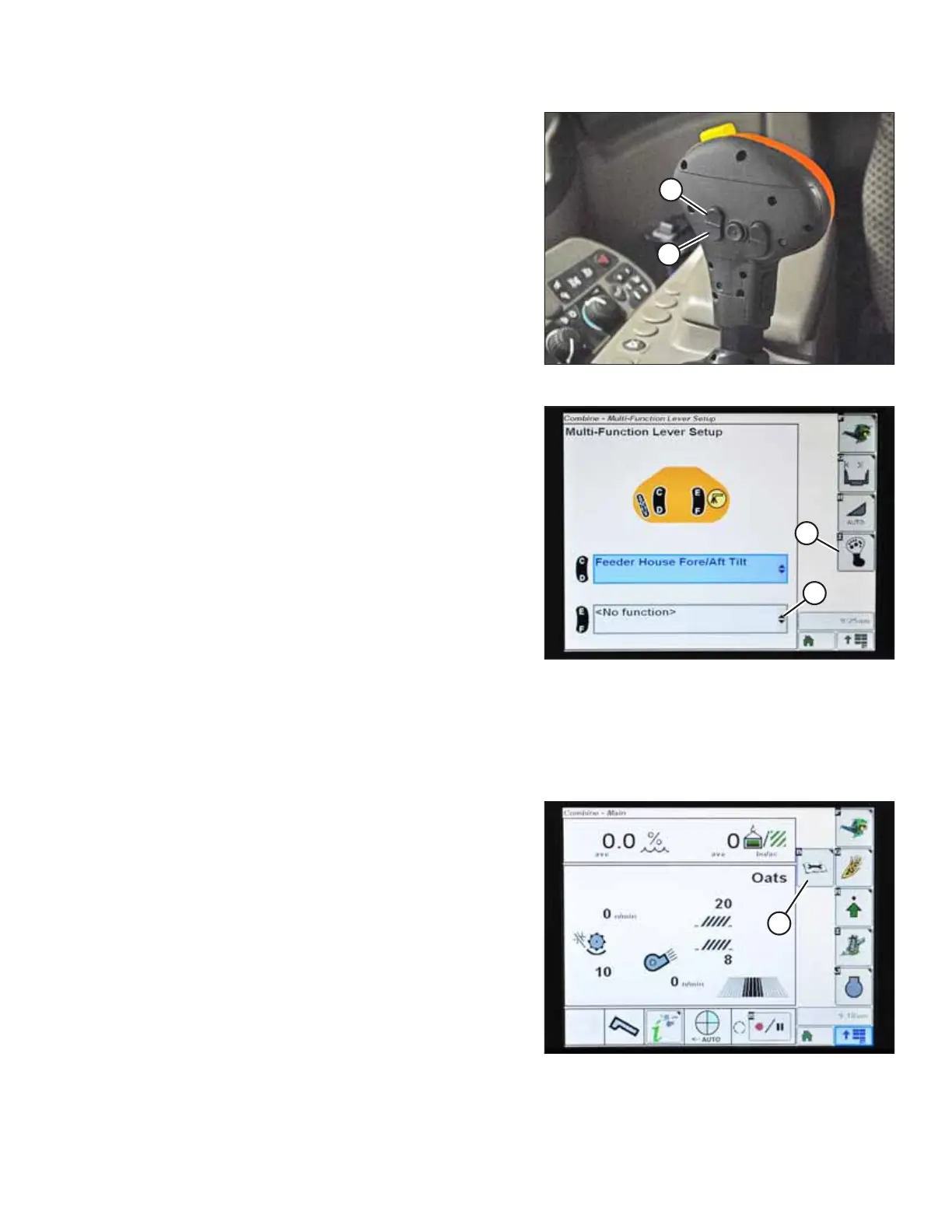

Figure 4.224: John Deere Hydro Handle
The feeder house fore-aft tilt feature is controlled by buttons
C (C) and D (D) on the back of the hydro handle.
Figure 4.225: John Deere Combine Display
NOTE:
The feeder house fore-aft tilt controls can be configured to work
with buttons E and F by pressing hydro handle icon (A) and then
selecting FEEDER HOUSE FORE/AFT TILT from drop-down
menu (B) on the combine display.
1. Ensure that the center-link is set to D.
2. Rest the header on the down stops and unlock the adapter float.
3. Place the wings in the locked position.
Figure 4.226: John Deere Combine Display
4. Press DIAGNOSTIC icon (A) on the main page of the
combine display. The CALIBRATION page appears.
AUTO HEADER HEIGHT CONTROL
