MacDon FlexDraper FD75 - Page 340

214323 322 Revision B
1001441
A
B
C

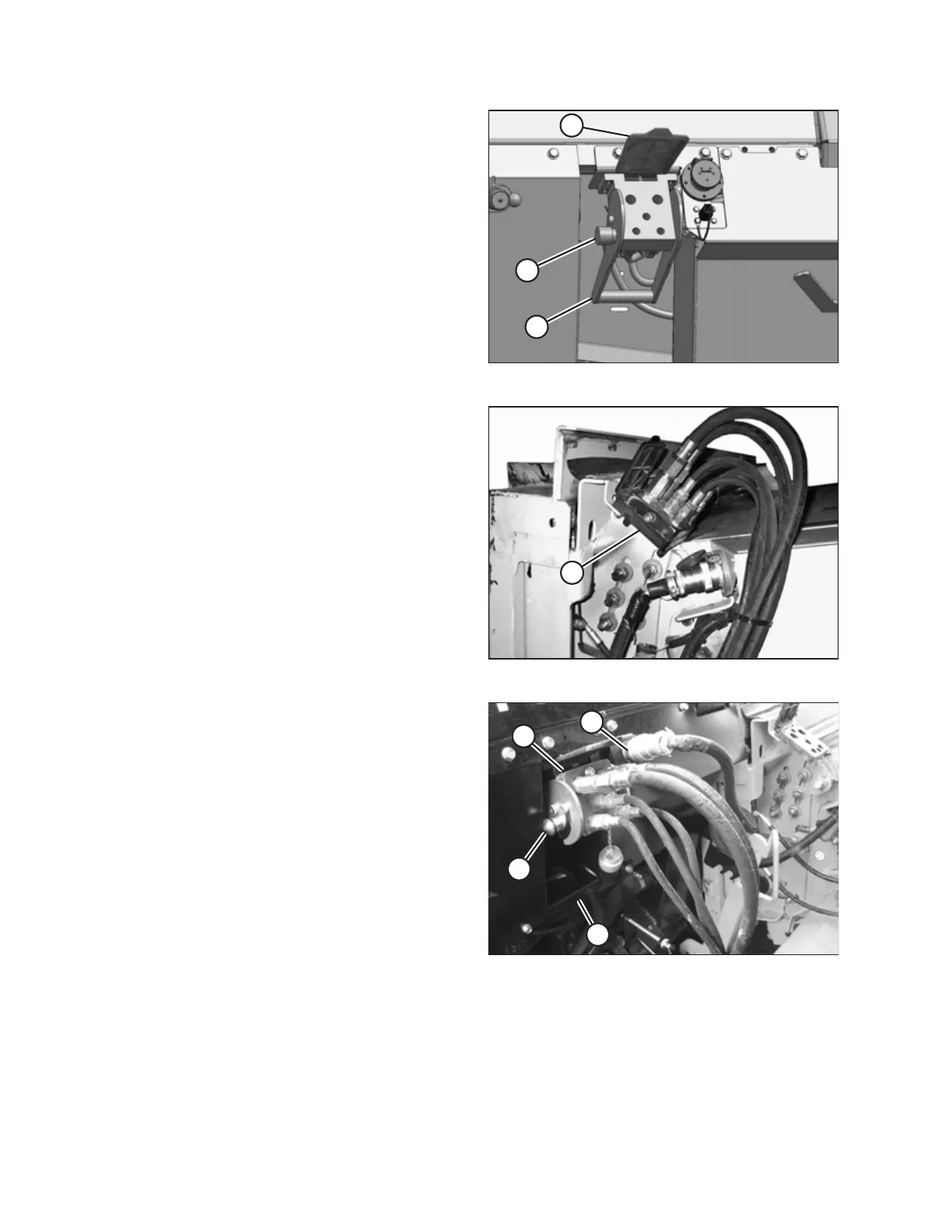

Figure 5.78: Adapter Receptacle
8. Open receptacle cover (A) on the adapter.
9. Push in lock button (B) and pull handle (C) to the fully open
position.
10. Clean the receptacle mating surfaces.
1005606
A
Figure 5.79: Combine Coupler
11. Remove hydraulic quick coupler (A) from the storage plate
on the combine, and clean the mating surface of
the coupler.
1001501
1001501
B
C
A
D
Figure 5.80: Connections
12. Place coupler (A) onto the adapter receptacle and push
handle (B) to engage pins into the receptacle.
13. Push handle (B) to the closed position until lock button (C)
snaps out.
14. Remove the cover on the electrical receptacle.
15. Remove connector (D) from the combine.
16. Align the lugs on connector (D) with the slots in the adapter
receptacle, and push the connector onto the receptacle.
Turn the collar on the connector to lock it.
HEADER ATTACHMENT/DETACHMENT
