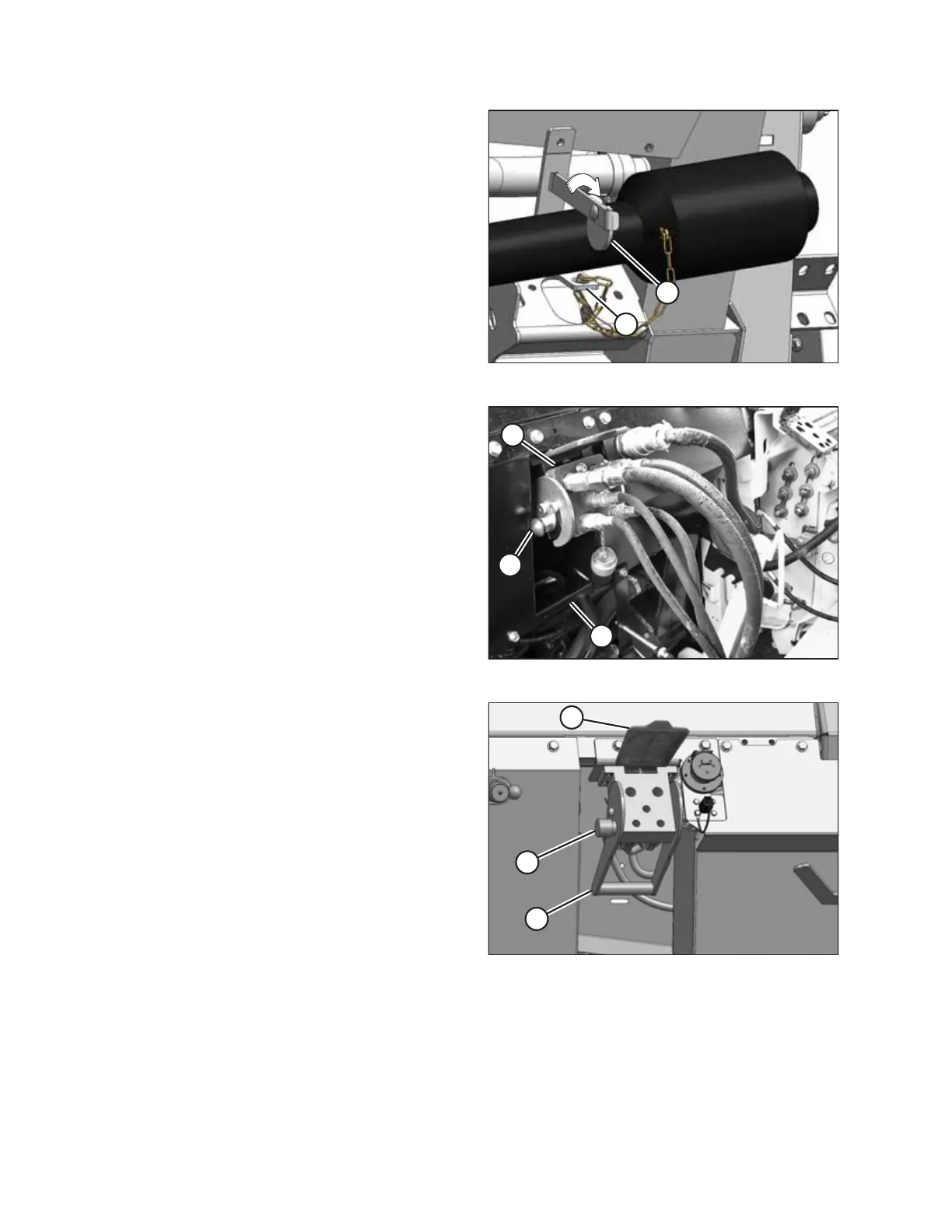

Figure 5.86: Driveline
5. Slide the driveline into hook (A) until disc (B) drops.
1001503
C
B
A
Figure 5.87: Adapter Connections
6. Push in lock button (B), and pull handle (C) to release
multicoupler (A).
1001441
A
B
C
Figure 5.88: Adapter Receptacles
7. Push handle (C) to the closed position until lock button (B)
snaps out. Close cover (A).
