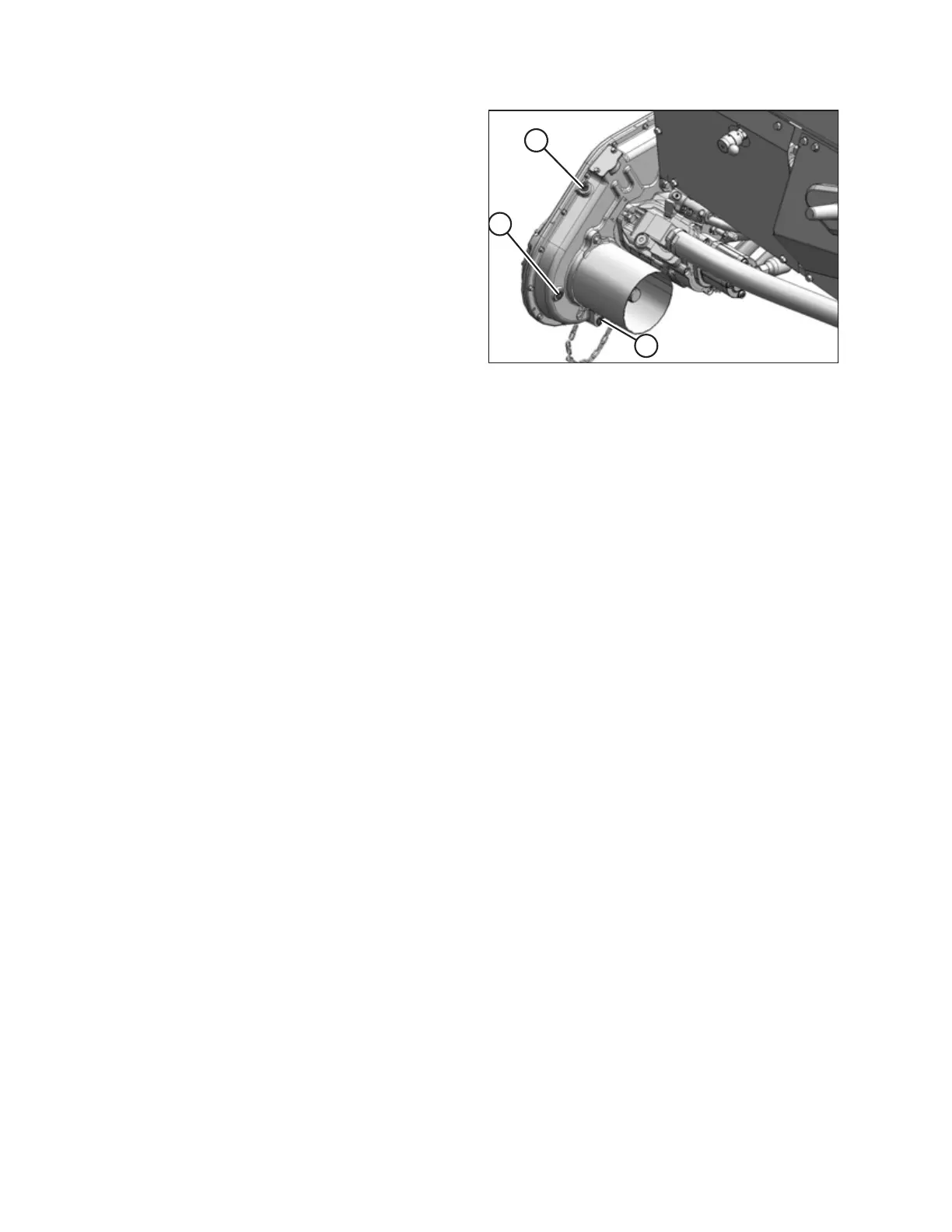

Figure 6.28: Header Drive Gearbox
1. Raise or lower the header to position oil drain plug (A) at its
lowest point.
2. Shut down the engine, and remove the key from the
ignition.
3. Place a suitably sized container (approximately 4 liters
[1 US gallon]) underneath the gearbox drain to collect
the oil.
4. Remove oil drain plug (A) and filler plug (C), and allow the
oil to drain.
5. Replace oil drain plug (A) and remove oil level plug (B).
6. Add SAE 85W-140 (API service class GL-5) oil into filler
plug (C) until it runs out of oil level hole (B).
NOTE:
The header drive gearbox holds approximately 2.5 liters
(5 US pints) of oil.
7. Replace oil level plug (B) and filler plug (C).
