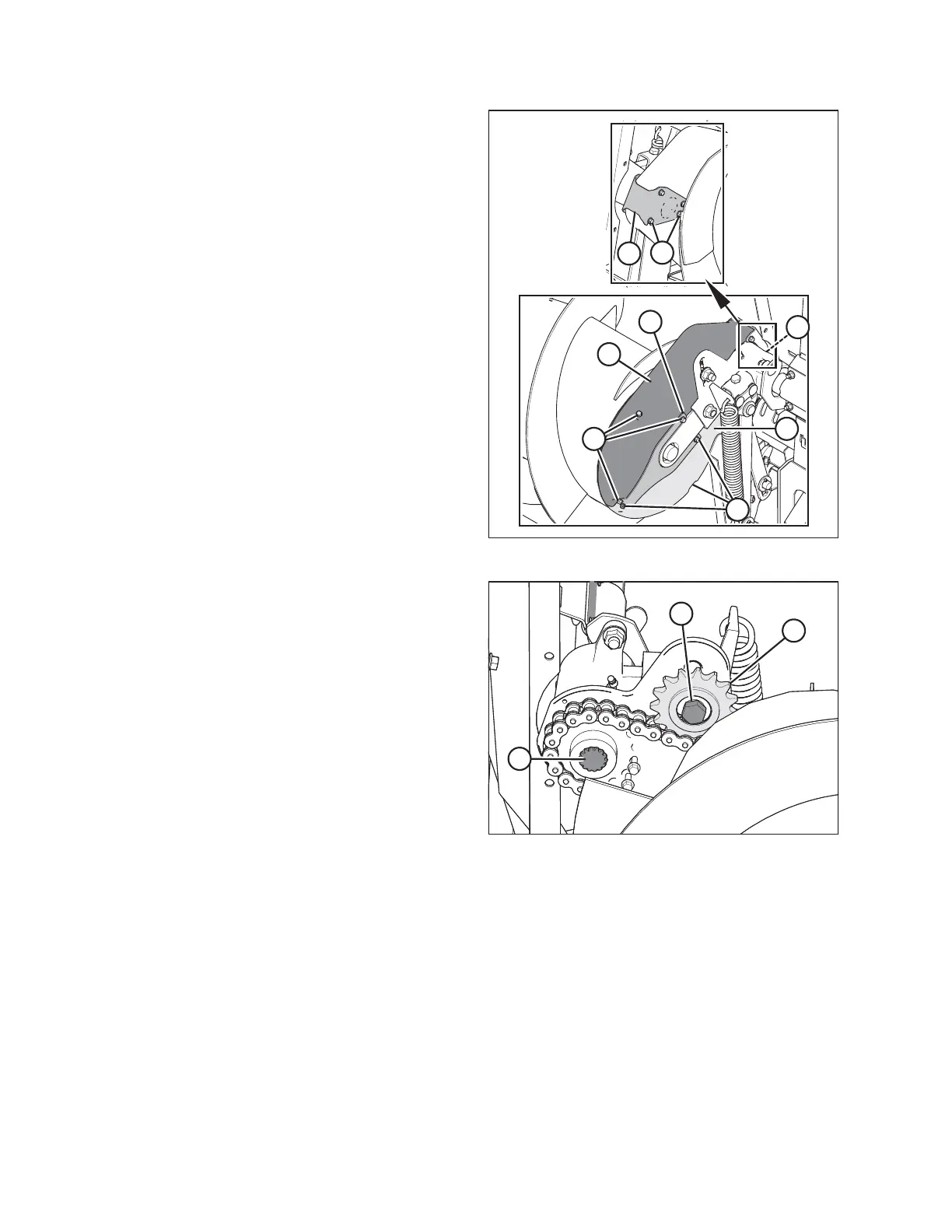

Figure 6.67: Auger Drive
3. Remove four bolts (A) securing the top cover to the left
side of the auger chain case.
4. Loosen bolts (B) on cover retainer plate (F).
5. Remove top cover (C) complete with cover retainer
plate (F).
6. Remove three bolts (D) securing the bottom cover.
7. Remove drive cover retainer (G).
8. Remove bottom cover (E).
Figure 6.68: Auger Drive
9. Loosen idler sprocket bolt (A), and raise sprocket (B) to the
highest position to release tension on the chain. Tighten
bolt (A) to hold the sprocket.
10. Remove washer and screw (C) that secure the drive
sprocket to the shaft.
MAINTENANCE AND SERVICING
