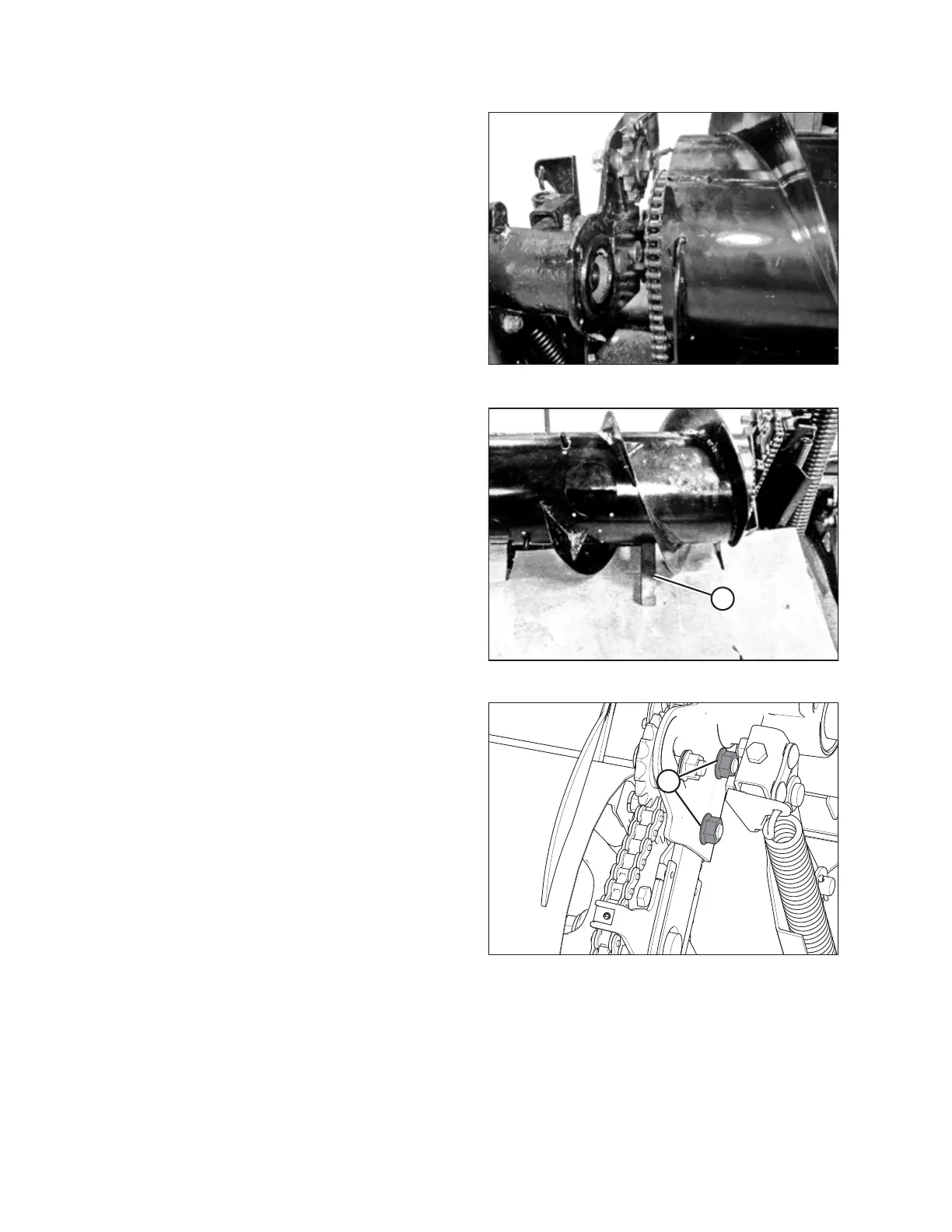

Figure 6.71: Auger Drive
NOTE:
Once the drum starts sliding to the right, the drive sprocket will
fall off.
1003292
A
Figure 6.72: Auger
13. Place a wooden block (A) under the drive end of the auger
to prevent the auger from dropping onto the feed draper
and damaging it.
1003296
A
Figure 6.73: Auger Support
14. Remove two bolts and nuts (A), and separate the drive
housing from the auger mount bracket.
NOTE:
You may need to lift or support the drum to remove
the bolts.
NOTE:
The bolts on the left side housing are longer than the bolts
on the right side housing.
