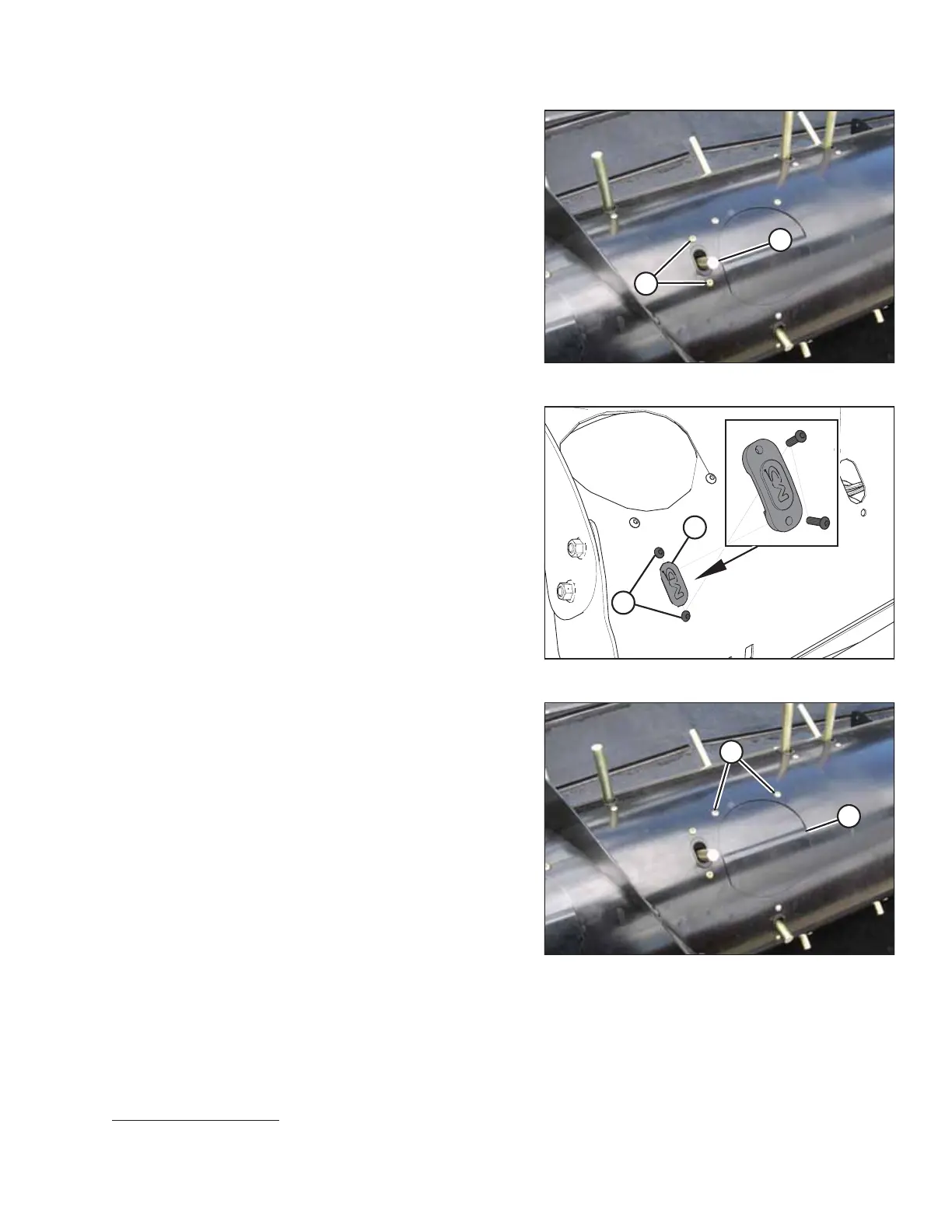

Figure 6.84: Auger
7. Remove screws (A) securing plastic guide (B) to the auger,
and remove the guide from inside the auger.
1014184
A
B
Figure 6.85: Plug
8. Position plug (A)
42
into the hole from inside the auger, and
secure with two socket button head screws (B). Coat the
screws with Loctite
®
#243 (or equivalent), and torque to
8.5 Nm (75 lbf∙in).
1001431
A
B
Figure 6.86: Auger
9. Reinstall access cover (B) and secure with screws (A). Coat
screws with Loctite
®
#243 (or equivalent) and torque to 8.5
Nm (75 lbf∙in).
MAINTENANCE AND SERVICING
42. If more plugs are required order MD #187137.
