214323 474 Revision B
1. Lower the header fully.
2. Raise the reel fully.
3. Shut down the engine, and remove the key from the ignition.
4. Engage the reel safety. For instructions, refer to Engaging Reel Safety Props, page 31.
NOTE:
If replacing only the cam end bushing, refer to Step 10, page 475.
Removing center disc and tail-end bushings:

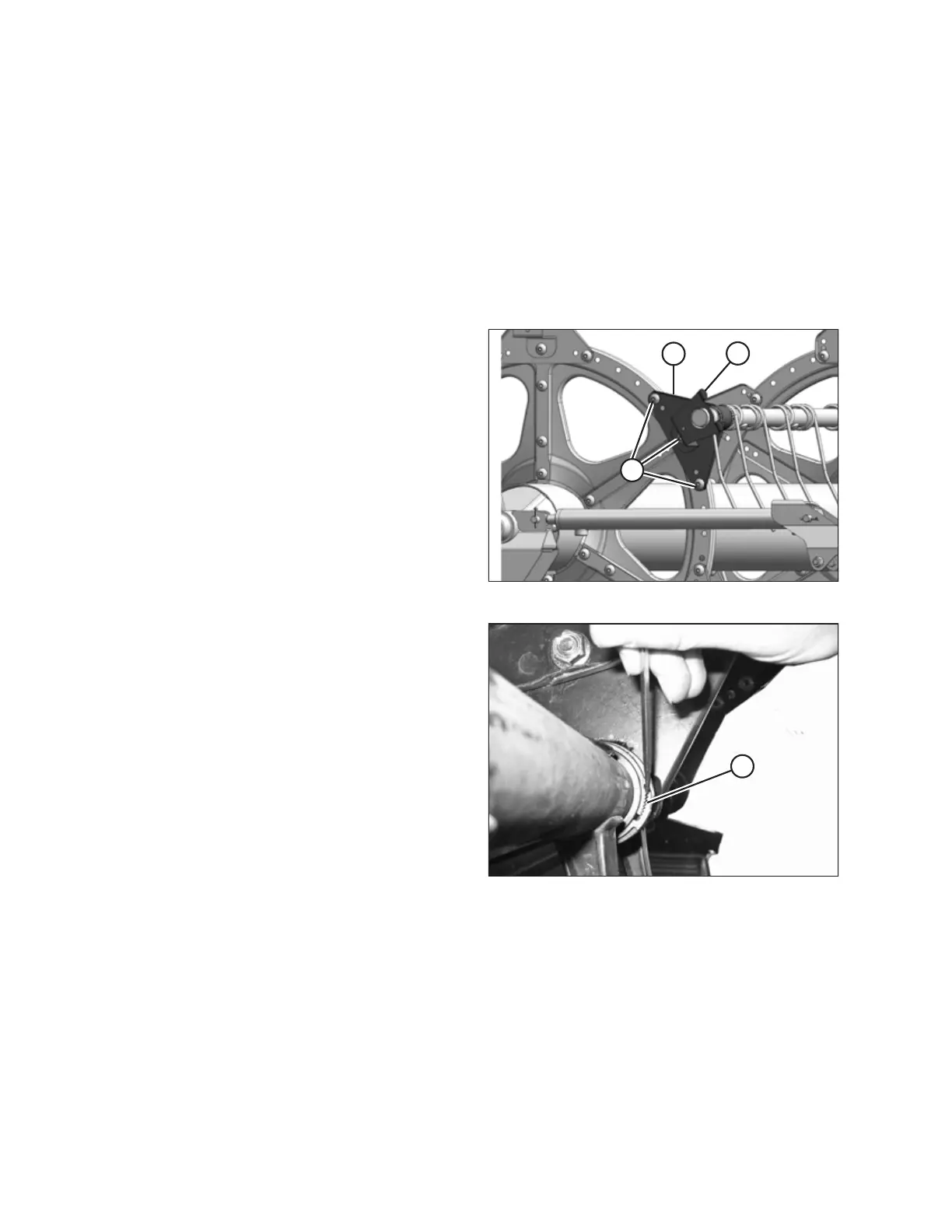

Figure 6.248: Tail End
5. Remove the reel endshields and endshield support (C) from
the tail end of the reel at the applicable tine tube location.
NOTE:
There are no endshields on the center disc.
6. Remove bolts (A) securing arm (B) to the disc.
IMPORTANT:
Note the hole locations in the arm and disc, and ensure
bolts (A) are reinstalled at the original locations.
Figure 6.249: Bushing Clamp
7. Release bushing clamps (A) using a small screwdriver to
separate the serrations. Pull the clamp off the tine tube.
MAINTENANCE AND SERVICING
