NEC Express 5800 - PCI Slot LED

Hardware
120
PCI Slot LED

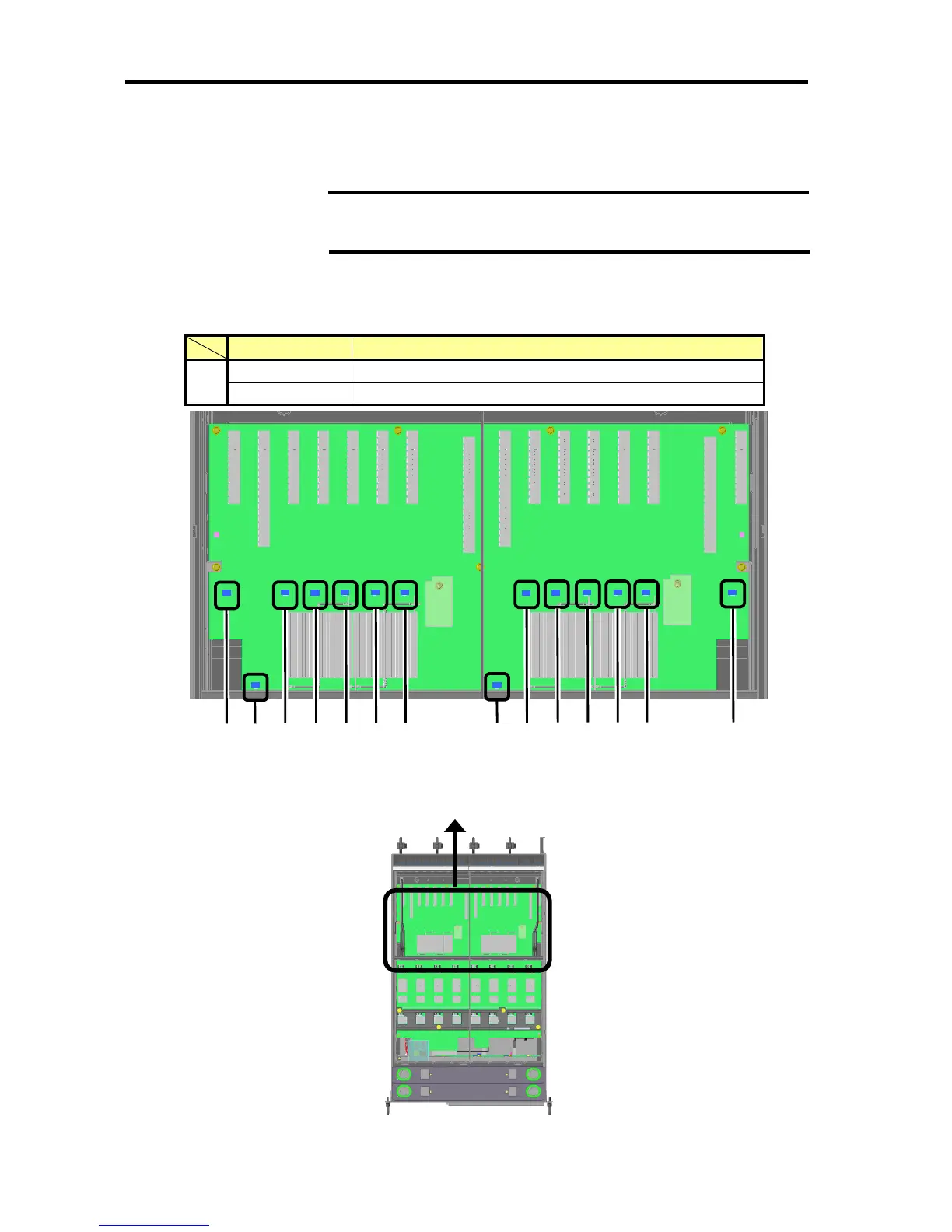

The power LEDs is located near PCI slots on the base module.
(1) PCI Slot Power LEDs
The following table shows LED status and its description.
LED Status Description
Off DC Power is off.
(1)
Lighting in green DC Power is on.
Front Side
Rear Side
PCI Slot 1
PCI Slot 2
PCI Slot 3 PCI Slot 4
PCI Slot 5
PCI Slot 6
PCI Slot 7
PCI Slot 8
PCI Slot 9 PCI Slot 10
PCI Slot 11
PCI Slot 12 PCI Slot 13 PCI Slot 14
PCI Slot 14 LED
PCI Slot 12 LED PCI Slot 13 LED PCI Slot 10 LED PCI Slot 11 LED
PCI Slot 8 LED PCI Slot 9 LED
PCI Slot 7 LED
PCI Slot 5 LED PCI Slot 6 LED PCI Slot 3 LED PCI Slot 4 LED PCI Slot 1 LED
PCI Slot 2 LED
IMPORTANT:
The PCI card cannot be replaced by customers.
