NEC Express 5800 - Front View

Hardware
77

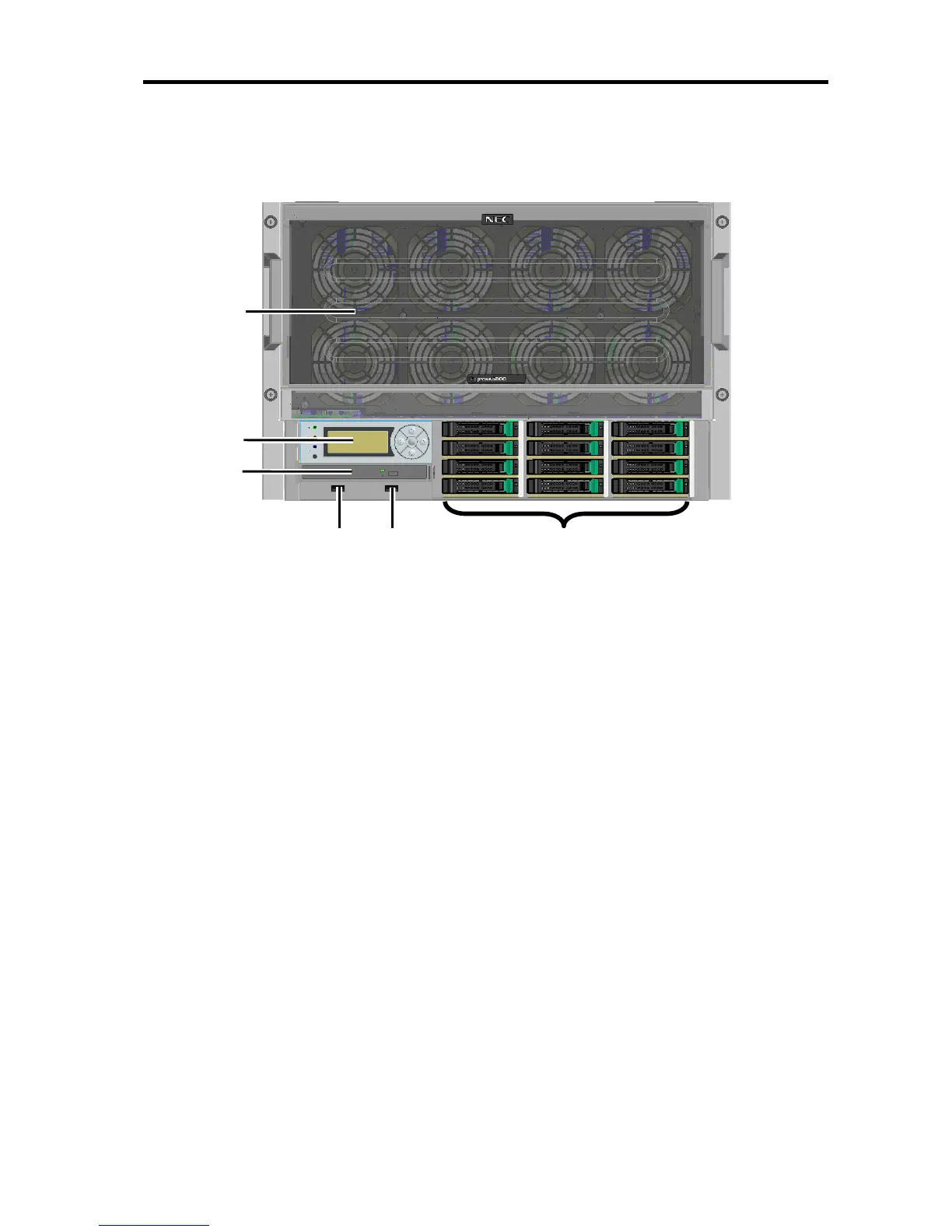

Front View
(1) Fan module 1 (First row of the front side of Server)
Fan module 2 (Second row of the front side of Server)
(2) EXPRESSSCOPE® Monitor
(3) DVD drive
(4) USB port
(5) USB port
(6) Internal disk drive
Drive Slot0 ～ Drive Slot 11
Slot number allocated to HDD such as DriveSlot only starts from the number “0”.
(6)
(2)
(3)
Drive Slot0
(1)
(4) (5)
Drive Slot1
Drive Slot3
Drive Slot10
Drive Slot11
Drive Slot8
Drive Slot5
Drive Slot2
Drive Slot6
Drive Slot9
Drive Slot7
Drive Slot4
