NEC Express 5800 - Rear View

Hardware
78

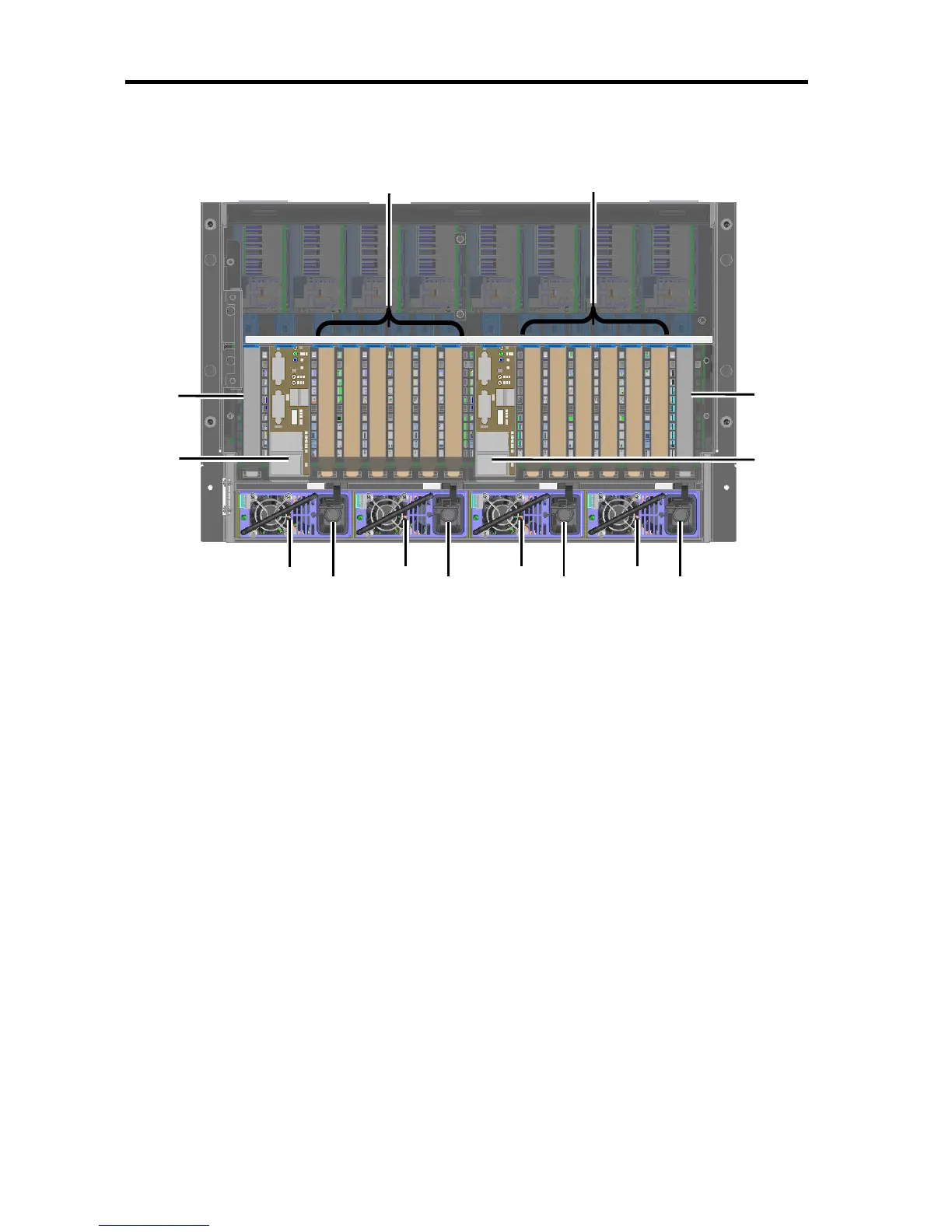

Rear View
(1) PCI slot 1 ････････････SAS RAID card supported slot(*1)
(2) PCI slot 2 ････････････WOL supported slot
PCI slot 3
PCI slot 4
PCI slot 5
PCI slot 6
PCI slot 7 ････････････x16､Middle size card supported slot (*2)
(3) PCI slot 8 ････････････WOL supported slot
PCI slot 9
PCI slot 10
PCI slot 11
PCI slot 12
PCI slot 13 ･･･････････x16､Middle size card supported slot (*2)
(4) PCI slot 14 ･･･････････SAS RAID card supported slot(*1)
(5) Management module 1
(6) Management module 2
(7) Power Supply Unit 1 (8) Power Supply Unit 2
(9) Power Supply Unit 3 (10) Power Supply Unit 4
(11) Power inlet 1
(12) Power inlet 2
(13) Power inlet 3
(14) Power inlet 4
(*1) SAS RAID card is available on this slot for RAID configuration using internal hard disk
drives.
(*2) Middle aize cards are avairable at only this slot.
PCI Slot1
PCI Slot2 PCI Slot3 PCI Slot4 PCI Slot5
PCI Slot6 PCI Slot7
PCI Slot8 PCI Slot9
PCI Slot10
PCI Slot11
PCI Slot12 PCI Slot13 PCI Slot14
(5)
(1)
(6)
(4)
(2)
(3)
(7)
(11)
(8)
(12)
(10)
(14)
(9)
(13)
