DIMM Adding/Mounting Rule
The following shows DIMM slot numbers to be mounted on the processor memory module.

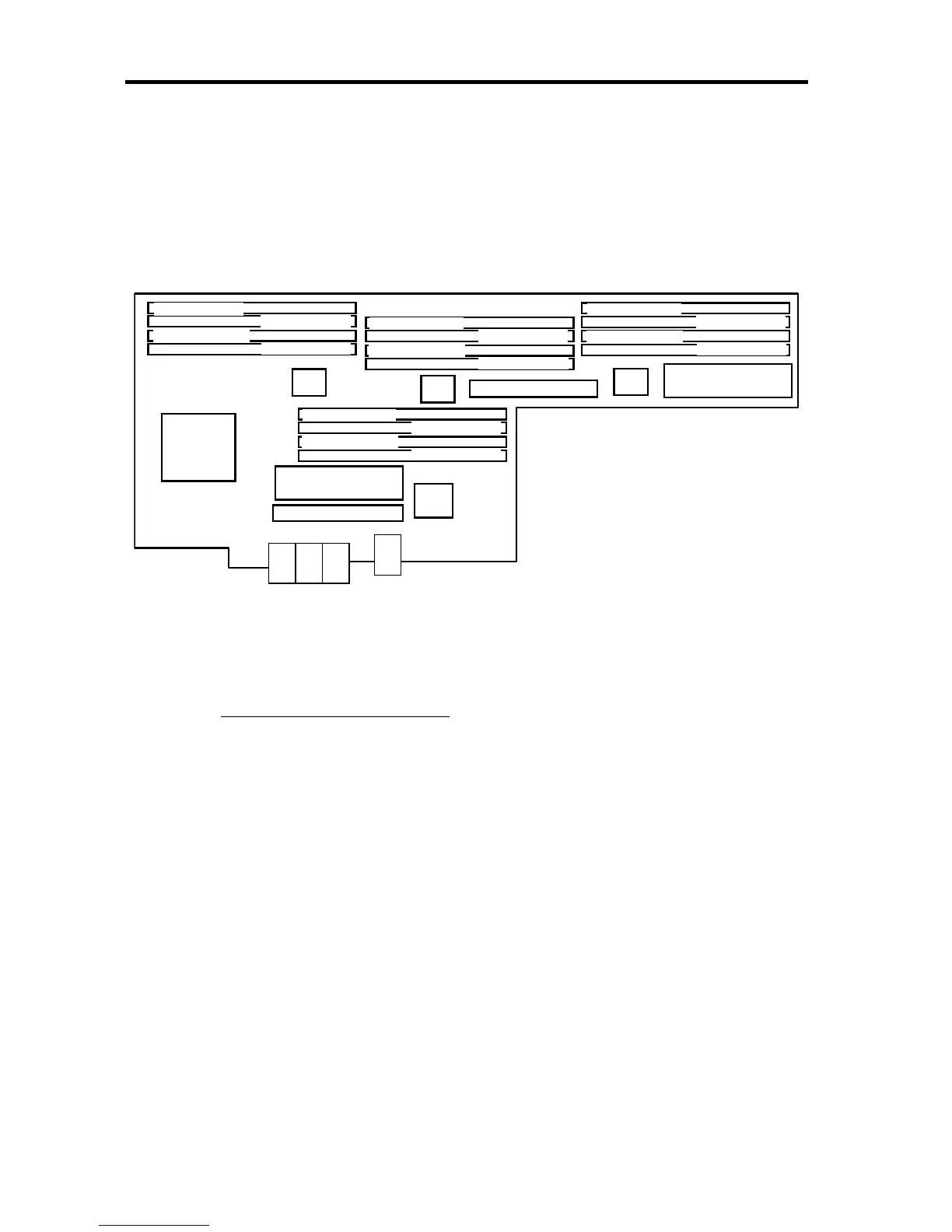

The following is an image showing DIMM slot numbers.
Front Rear
DIMM Adding Rule
Note that the addition unit of DIMMs differs
depending on the model for A1080a-S, A1080a-D,
A1080a-E or A1040a when adding DIMMs or changing configuration,.
 A1080a-S/A1080a-D/A1040a Model : Add per 2 DIMMs
 A1080a-E Model : Add per 4 DIMMs
Minimum/Maximum Memory Configuration
 A1080a-S,A1040a Model : 4GB(2GB x2) - 1TB(16GB x64) Server 1
 A1080a-D Model : 4GB(2GB x2) - 1TB(16GB x64) Same for both Server 1 and Server 2.
 A1080a-E Model : 8GB(2GB x4) - 2TB(16GB x128) Server 1
Refer to the mounting rule described on the next page for DIMM mounting order.
Processor
DIMM#9 (PAIR5)
DIMM#13 (PAIR7)
DIMM#5 (PAIR3)
DIMM#1 (PAIR1)
DIMM#10 (PAIR5)
DIMM#14 (PAIR7)
DIMM#6 (PAIR3)
DIMM#2 (PAIR1)
DIMM#11 (PAIR6)
DIMM#15 (PAIR8)
DIMM#7 (PAIR4)
DIMM#3 (PAIR2)
DIMM#12 (PAIR6)
DIMM#16 (PAIR8)
DIMM#8 (PAIR4)
DIMM#4 (PAIR2)
