NEC Express 5800 - Memory Scrubbing

Hardware
98

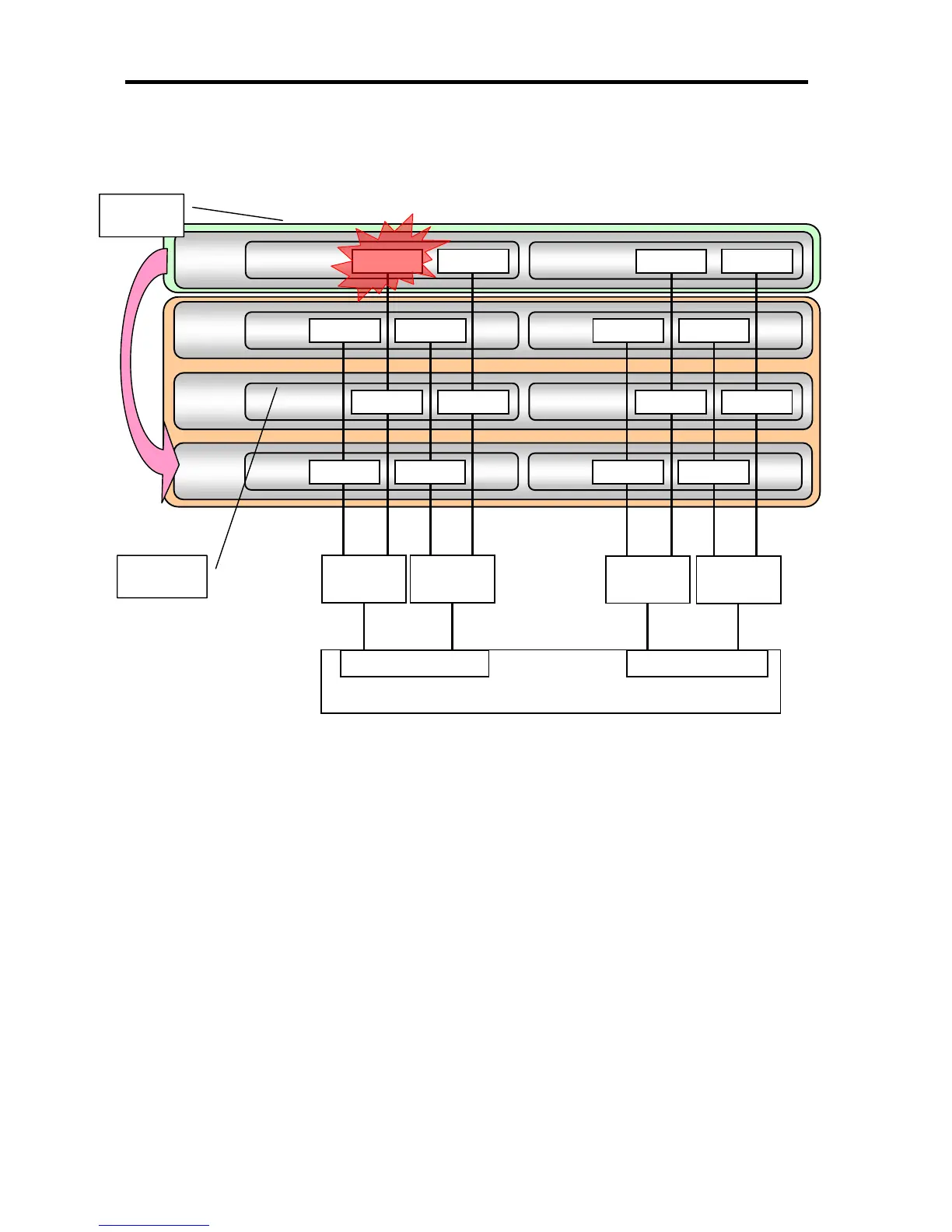

At DIMM sparing failure occurrence
Memory Scrubbing
This function provides the patrol scrubbing and demand scrubbing functions. It can search in the
system memory preliminarily to detect a single-bit error automatically and correct correctable
errors, and can reduce the possibility of a multi-bit error occurrence in the same memory by
setting to never use the memory location permanently as an unreadable area.
PAIR #7
PAIR #8
PAIR #5 PAIR #6
DIMM #5
PAIR #3
DIMM #6 DIMM #7
PAIR #4
DIMM #8
DIMM #1
PAIR #1
DIMM #2
DIMM #3
PAIR #2
DIMM #4
DIMM #9
DIMM #14DIMM #13
DIMM #10 DIMM #12
DIMM #11
DIMM #16 DIMM #15
Memory
Buffer#1
Memory
Buffer#2
Memory
Buffer#3
Memory
Buffer#4
Ch.0
Ch.0
Ch.1
Ch.1
Ch.0
Ch.0
Ch.1
Ch.1
Processor
Memory Controller#1 Memory Controller#2
Ch.A
Ch.B
Ch.C
Ch.D
QUARTET
#1
QUARTET
#2
QUARTET
#4
QUARTET
#3
Switch to
Standb
y
Switch to
Active
Failure Occurrence
At DIMM sparing failure occurrence
