Required Tools
Tools required for mounting to rack are a Phillips-head and a flat-blade screw driver.
Mounting Procedure
Mount the server to the rack by following the procedure below.
1. Specify the position (height) to mount the server.

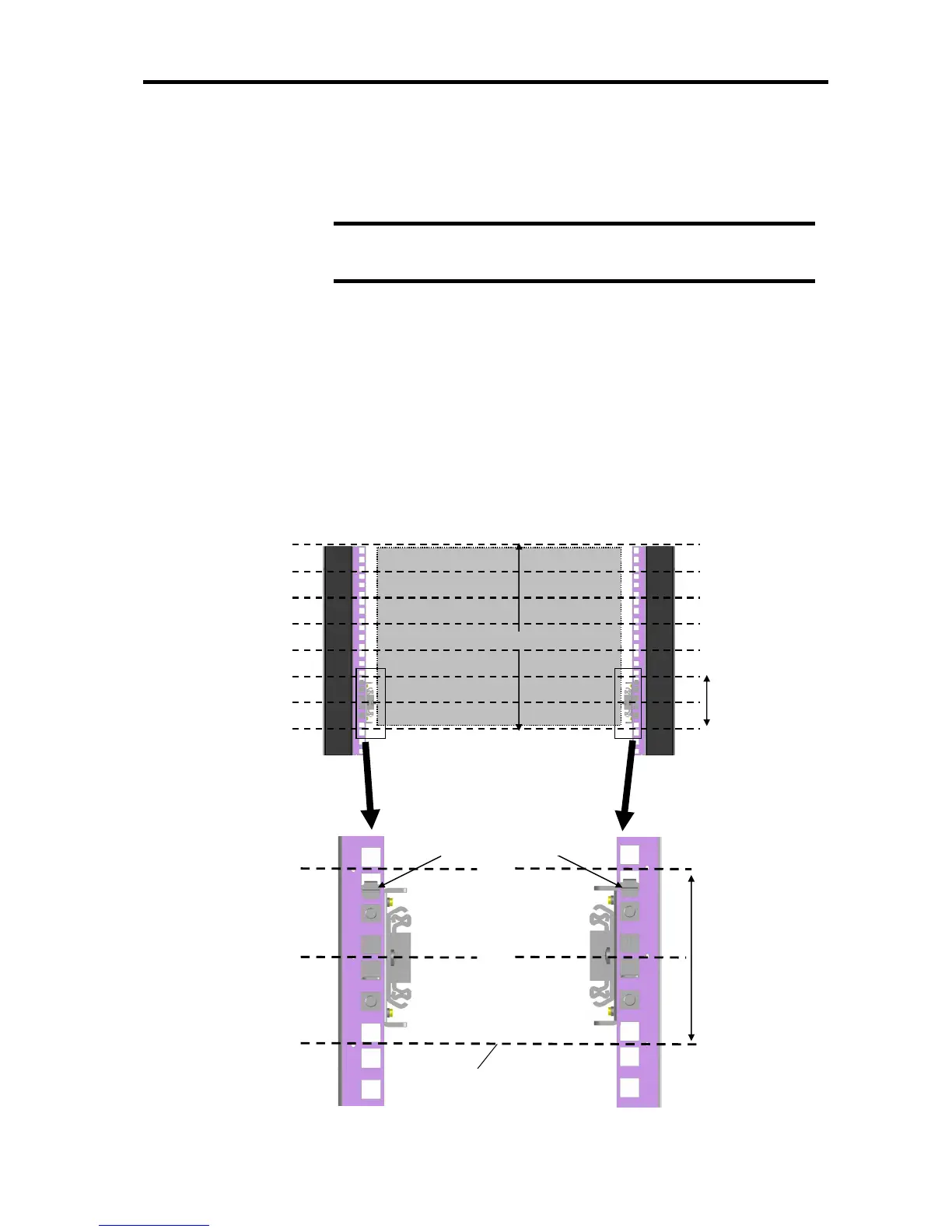

The height of the server is 7U. The following image shows the positional relation between the
lower side of the server and lower side of the slide rail assembly.Hitch the holding tabs to the
same height of the rack for both front side and rear side.
NOTE:
A minus driver is used when changing the position of rack nuts.
装置高
さ
7U
正面側
装置
の
底面位置。
2U
この位置にホー
ルディングタブ
を引っ掛
けます
2U
Front side
The hei
