Hardware
125

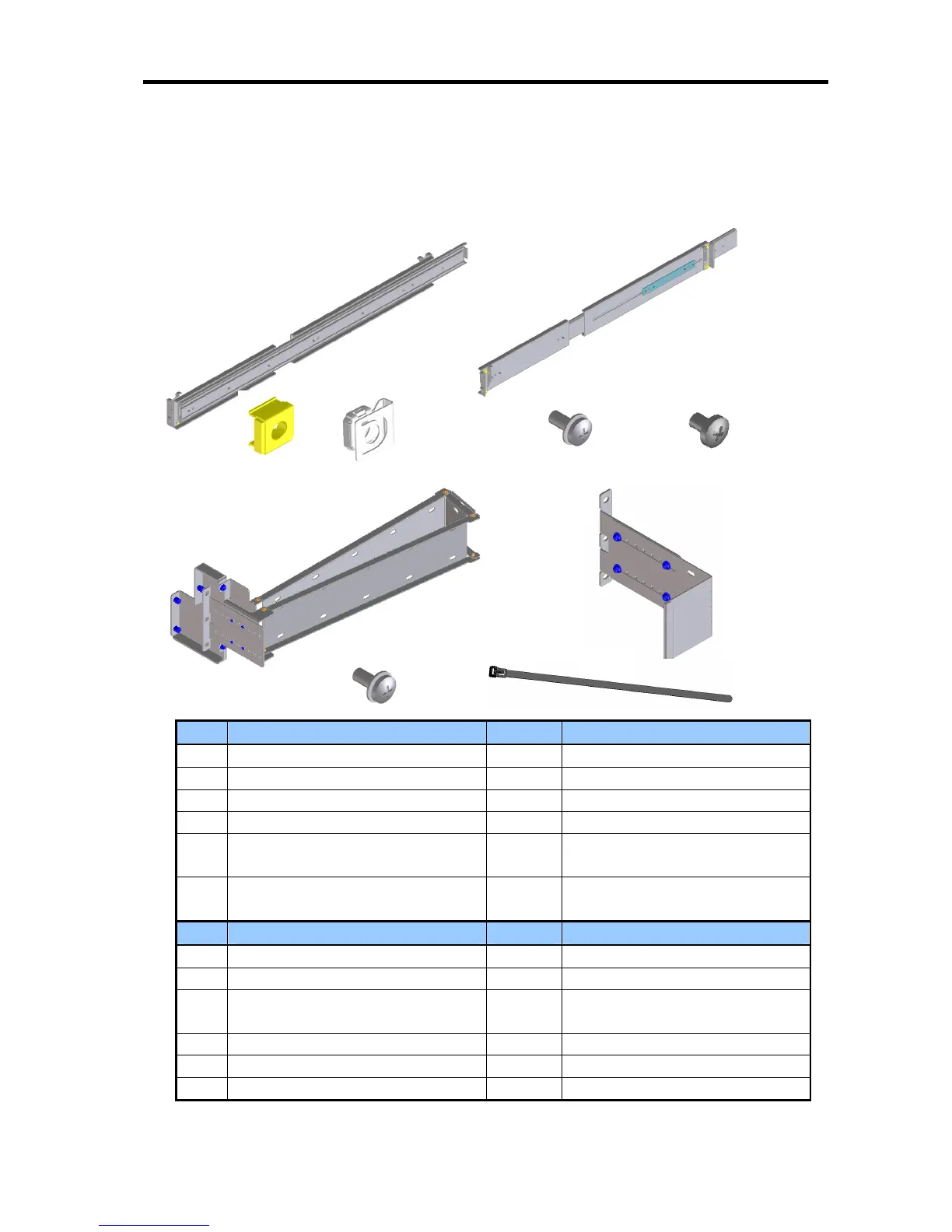

Checking Parts to be Mounted
Confirm that the following parts are provided for mounting to the rack.
Name（Rack Mount Kit）
Quantity Remarks
(1)
Slide Rail Assembly (L) 1
(2)
Slide Rail Assembly (R) 1
(3)
Rack Nut(for square holes of rack) 4
(4)
Rack Nut(for round holes of rack) 4
(5)
Screw A (for fixing rack）
8 Length 16mm, two positions each
for front, rear, right, and left side
(6)
Screw B (for fixing inner rail) 12 Length 5mm, six positions on right
and left side
Name(Standard Cable Arm Kit) Quantity Remarks
(7)
Support Bracket 1 1 Cable Arm
(8)
Support Bracket 2 1 Cable Cover
(9)
Screw C (for support bracket) 5 Length 16mm, three screws for rear
left, two screws for rear right
(10)
Repeat Tie 25
(3)
Rack Nut(for square holes of rack) 5
(4)
Rack Nut(for round holes of rack) 5
(1)
(2)
(5)
(3)
(7)
(8)
(6)
(9)
(10)
(4)
To Next Page
