5. The disk drive slot numbers written on the server front bay, the physical drive numbers
shown in WebBIOS and those shown in Universal RAID Utility are identified as follows.
WebBIOS
Enclosure number and Slot number shown in Physical Drives box*
* "X:X:X" shown in Physical Drives box represents Connector number:Enclosure
number:Slot number. With this server, the Connector number is not supported,
thus, it is always indicated as "()". The Enclosure Number is always "1". The Slot
number is the number on the drive tray of the server.
Universal RAID Utility
Enclosure number and Slot number shown in Physical Device Properties
Note that the slot numbers shown in Physical Drives box of WebBIOS are
represented by the numbers beginning with 0, but those in Universal RAID Utility
are numbers beginning with 1.

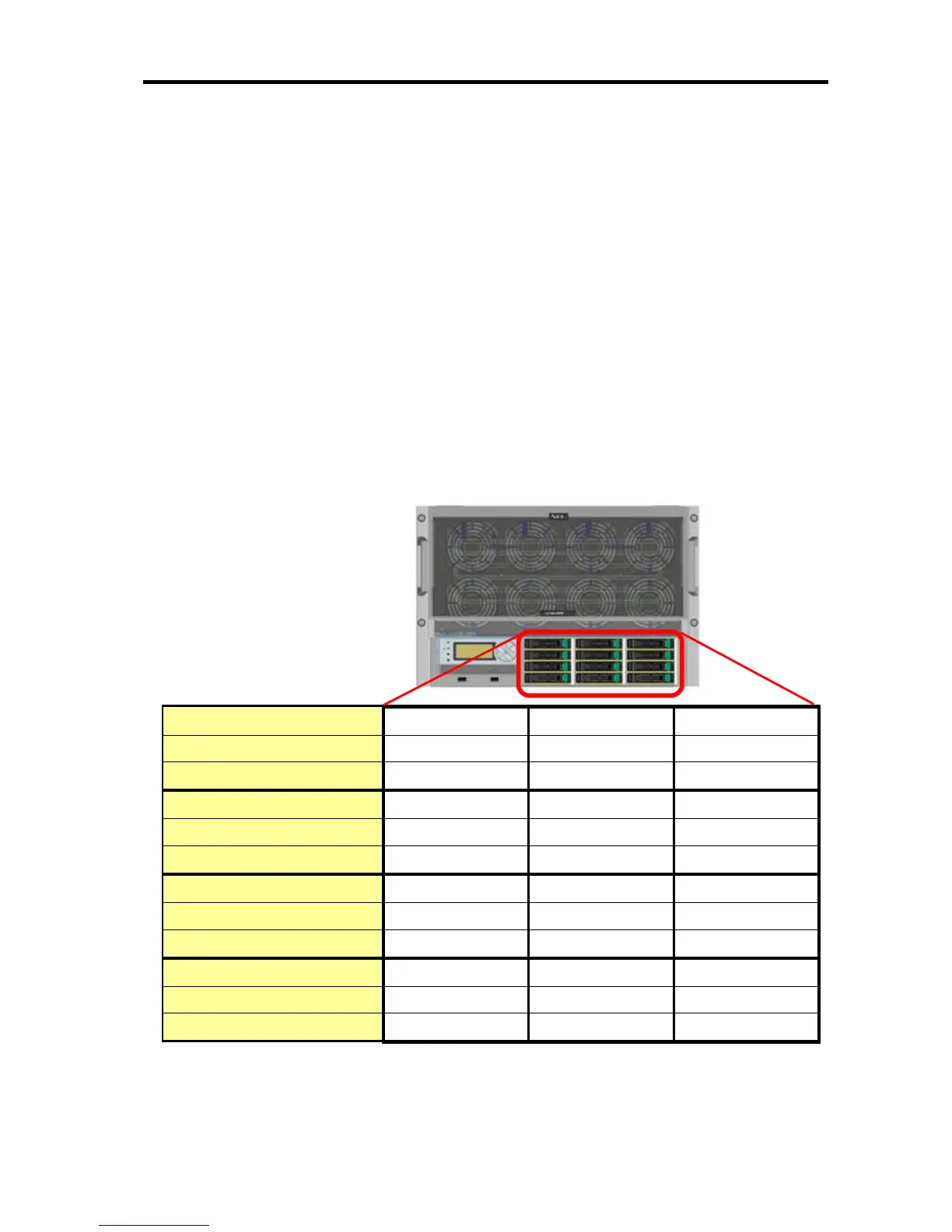

Slot numbers and their indications on utility software
Slot number of server Slot#0 Slot#1 Slot#2
Indication on WebBIOS ( ):0:1 ( ):1:1 ( ):1:2
Indication on URU Slot 1 Slot 2 Slot 3
Slot number of server Slot#3 Slot#4 Slot#5
Indication on WebBIOS ( ):1:4 ( ):1:5 ( ):1:6
Indication on URU Slot 5 Slot 6 Slot 7
Slot number of server Slot#6 Slot#7 Slot#8
Indication on WebBIOS ( ):1:0 ( ):1:1 ( ):1:2
Indication on URU Slot 1 Slot 2 Slot 3
Slot number of server Slot#9 Slot#10 Slot#11
Indication on WebBIOS ( ):1:4 ( ):1:5 ( ):1:6
Indication on URU Slot 5 Slot 6 Slot 7
