Hardware
84

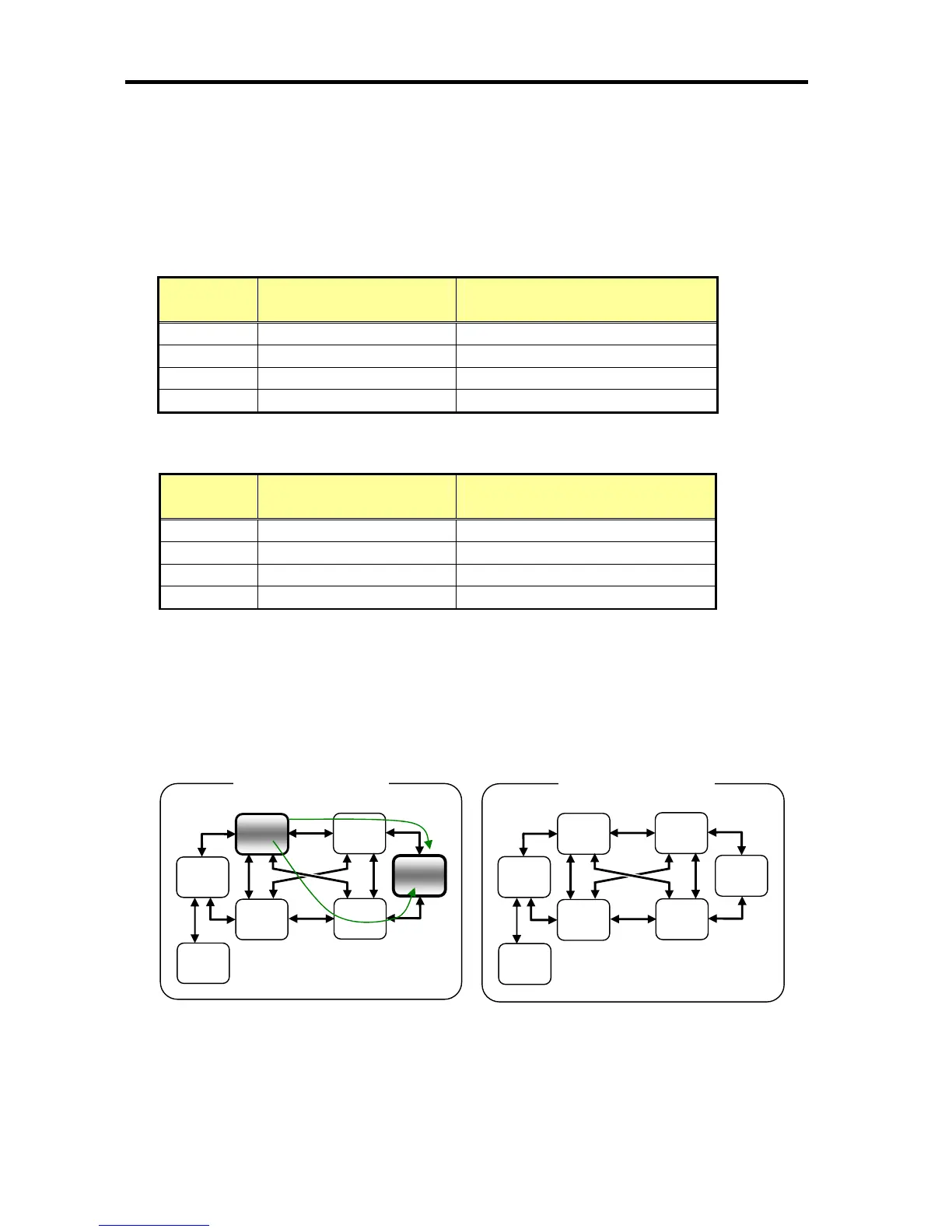

The following shows the connection of processor memory modules (PMMs) for A1080a-D
model.
All processor memory modules in the server can be connected one another. Some I/O
controllers (IOHs) cannot be connected to processor memory modules directly, but can be
connected via other processor modules.
For A1080a-D Model Server 1
For A1080a-D Model Server 2
Example) In the four-processor memory module configuration for server 1, PMM1 and IOH2
cannot be connected directly as shown below. However, a PCI card under IOH2 can
be used via PMM2 or PMM4.
For example, the PCI card under IOH2 can be used via PMM4 even in the case of
failure on PMM2.
The same applies to Server 2.
* PMMx is an abbreviation of a processor memory module.
* IOHx is an abbreviation of an I/O hub.
* ICH is an abbreviation of an I/O control hub.
Used PMM Connected PMM Connected IOH (next connection
after IOH)
PMM #1 PMM #2,PMM#3,PMM#4 IOH #1 (MGM #1/PCI #1,2,3,4)
PMM #2 PMM #1,PMM#3.PMM#4 IOH #2 (PCI #5,6,7)
PMM #3 PMM #1,PMM#2.PMM#4 IOH #1 (MGM #1/PCI #1,2,3,4)
PMM #4 PMM #1,PMM#2,PMM#3 IOH #2 (PCI #5,6,7)
Used PMM Connected PMM Connected IOH (next connection
after IOH)
PMM #5 PMM #6,PMM #7,PMM #8 IOH #3 (MGM#2/PCI#14,8,9,10)
PMM #6 PMM #5,PMM #7.PMM #8 IOH #4 (PCI#11,12,13)
PMM #7 PMM #5,PMM #6.PMM #8 IOH #3 (MGM#2/PCI#14,8,9,10)
PMM #8 PMM #5,PMM #6,PMM #7 IOH #4 (PCI#11,12,13)
PMM5
PMM7
PMM8
PMM6
IOH3
IOH4
ICH
Server 2
PMM1
PMM3
PMM4
PMM2
IOH1
IOH2
ICH
Server 1
