The switch can also detect trunk member ports that are physically misconfigured.
For example, in
Figure 1-57, trunk member ports 2, 4, and 6 of switch S1 are
configured correctly to trunk member ports 7, 9, and 11 of switch S2. The
Spanning Tree Port Configuration screen for each switch shows the port state field
for each port in the Forwarding state.

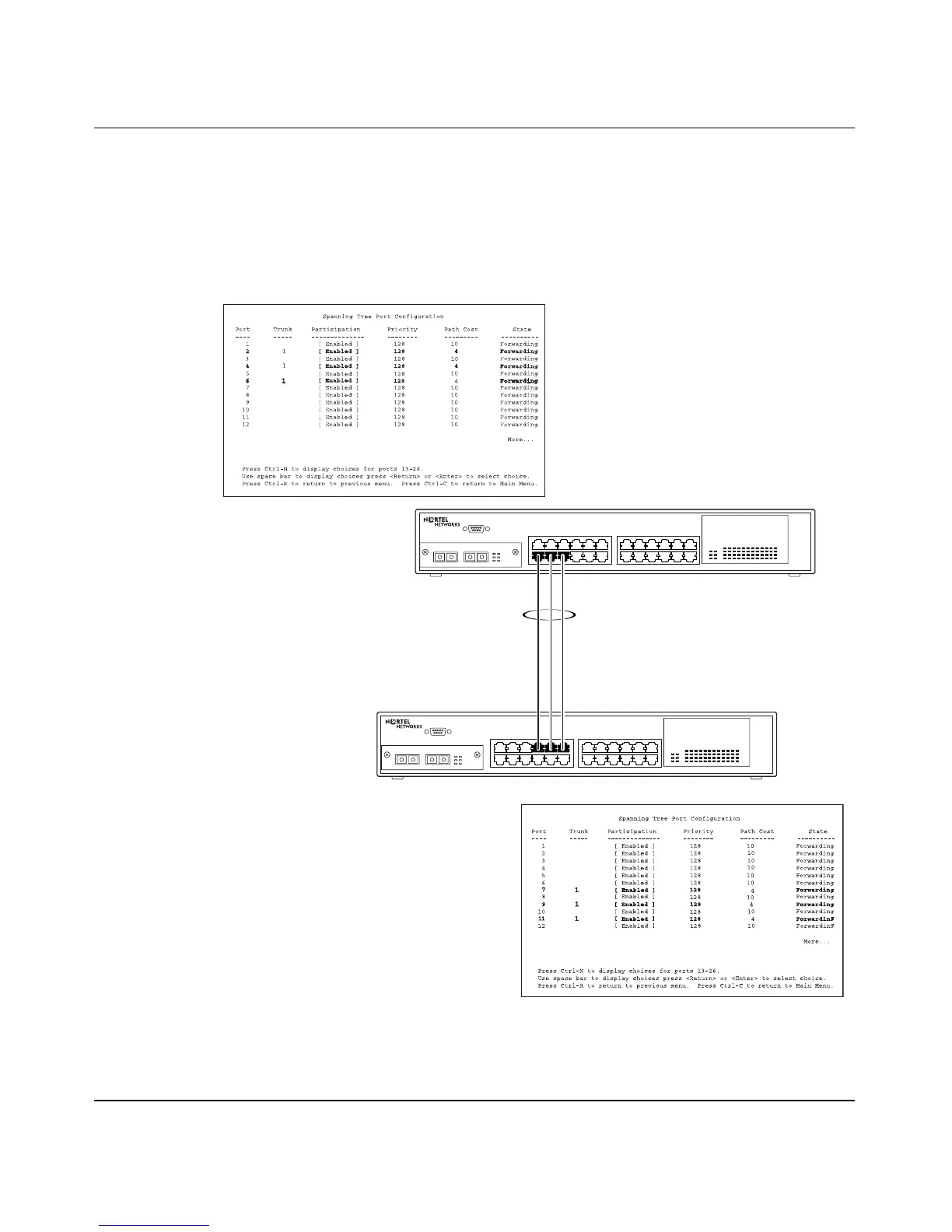

Figure 1-57. Example 1: Correctly Configured Trunk
T1
S1 Port Configuration screen
BS45030A
S2 Port Configuration screen
S1
S2
