BayStack 450 10/100/1000 Series Switches
309978-D Rev 01 1-61
Shared Servers
BayStack 450 switches allow ports to exist in multiple VLANs for shared
resources, such as servers, printers, and switch-to-switch connections. It is also
possible to have resources exist in multiple VLANs on one switch as shown in
Figure 1-33.
In this example, clients on different broadcast domains share resources. The
broadcasts from ports configured in VLAN 3 can be seen by all VLAN port
members of VLAN 3.

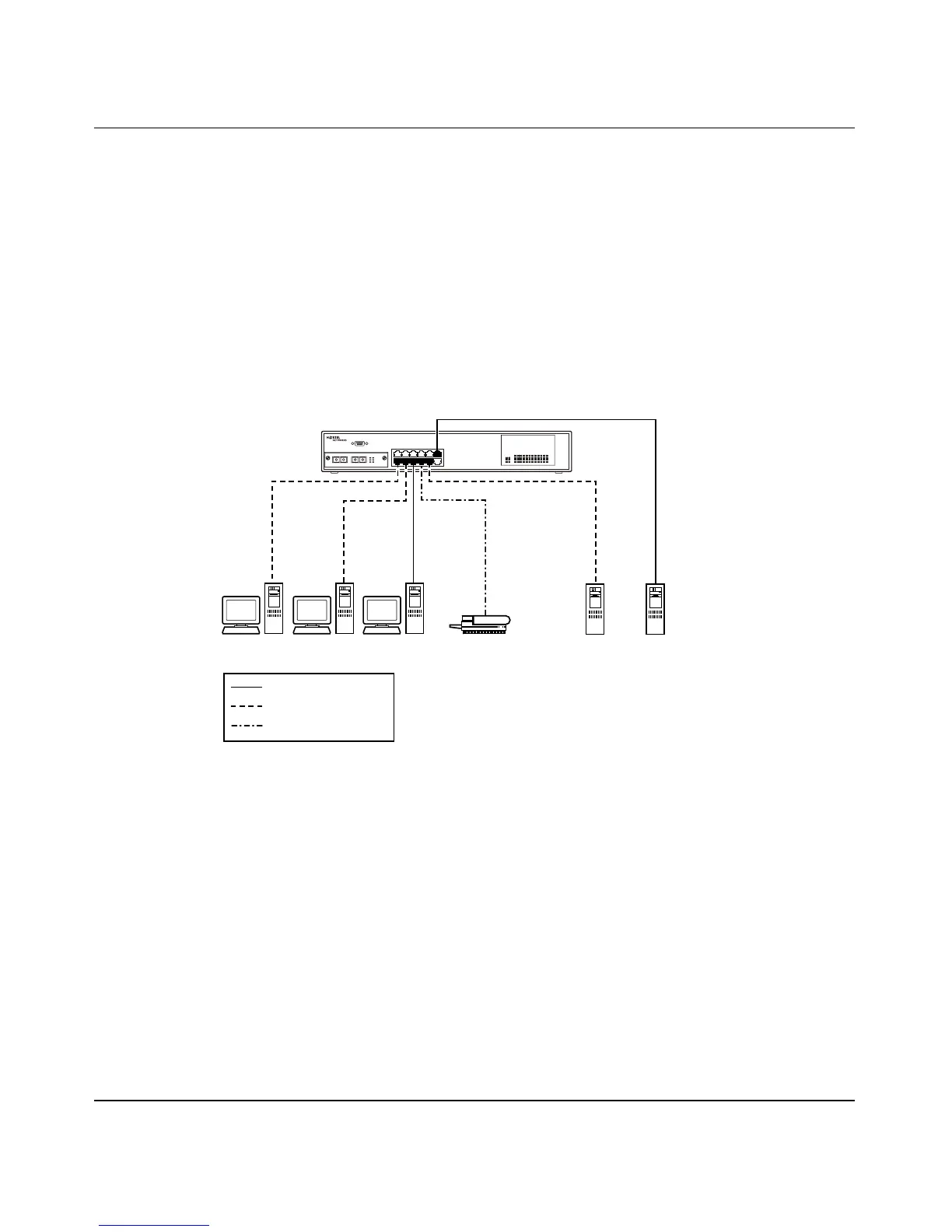

Figure 1-33. Multiple VLANs Sharing Resources
In the above configuration, all of the switch ports are set to participate as VLAN
port members. This allows the switch to establish the appropriate broadcast
domains within the switch (see
Figure 1-34).
BayStack 450-12T switch
BS45018A
S1
V2 V2 V1
V1V2
V3
Key
VLAN 1 (PVID=1)
VLAN 2 (PVID=2)
VLAN 3 (PVID=3)
