ATM Overview
309978-D Rev 01 D-7
ELAN VLAN Mapping
Figure D-3 shows how your BayStack 450-2M3/2S3 MDAs can provide ATM
connections to a Nortel Networks Centillion
™
100 switch. Clients (PCs) that are
connected to S1 can communicate with clients connected to S2, provided that the
VLANs (with their respective client members) are mapped onto the same ELANs
as shown.
Although this example shows standalone switches, you can apply the same
example to a stack of up to eight switches, with 32 VLANs and 32 ELANs.

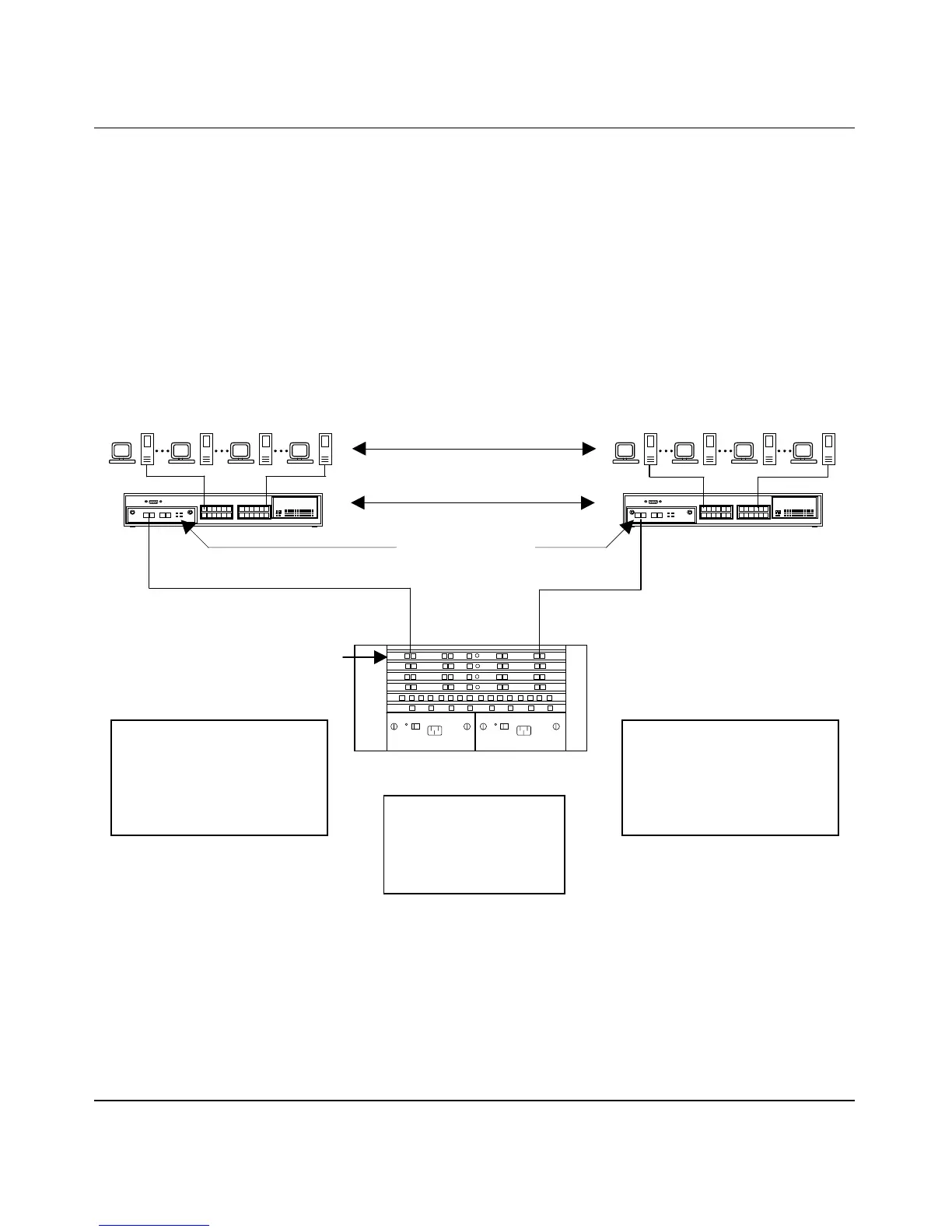

Figure D-3. ELAN VLAN Mapping
Available Services
This section describes the services that are available to support your
BayStack 450-2M3/2S3 MDA.
450-2M3/2S3 MDAs
BayStack switches
Centillion 100
switch
S1 S2
ATMSpeed
switch module
LEC 1/VLAN 1/ELAN 1/Vport 25
LEC 2/VLAN 2/ELAN 2/Vport 26
LEC 3/VLAN 3/ELAN 3/Vport 27
S1 ATM configuration:
LEC 4/VLAN 4/ELAN 4/Vport 28
LEC 1/VLAN 1/ELAN 1/Vport 25
LEC 2/VLAN 2/ELAN 2/Vport 26
LEC 3/VLAN 3/ELAN 3/Vport 27
S2 ATM configuration:
LEC 4/VLAN 4/ELAN 4/Vport 28
Centillion configuration:
ELAN 1
ELAN 2
ELAN 3
ELAN 4
BS45082A
PC1/V1 PC2/V2 PC3/V3 PC4/V4 PC1/V1 PC2/V2 PC3/V3 PC4/V4
Clients
