BayStack 450 10/100/1000 Series Switches
309978-D Rev 01 1-95
If switch S2’s trunk member port 11 is physically disconnected and then
reconnected to port 13, the Spanning Tree Port Configuration screen for switch S1
changes to show port 6 in the Blocking state (
Figure 1-58).

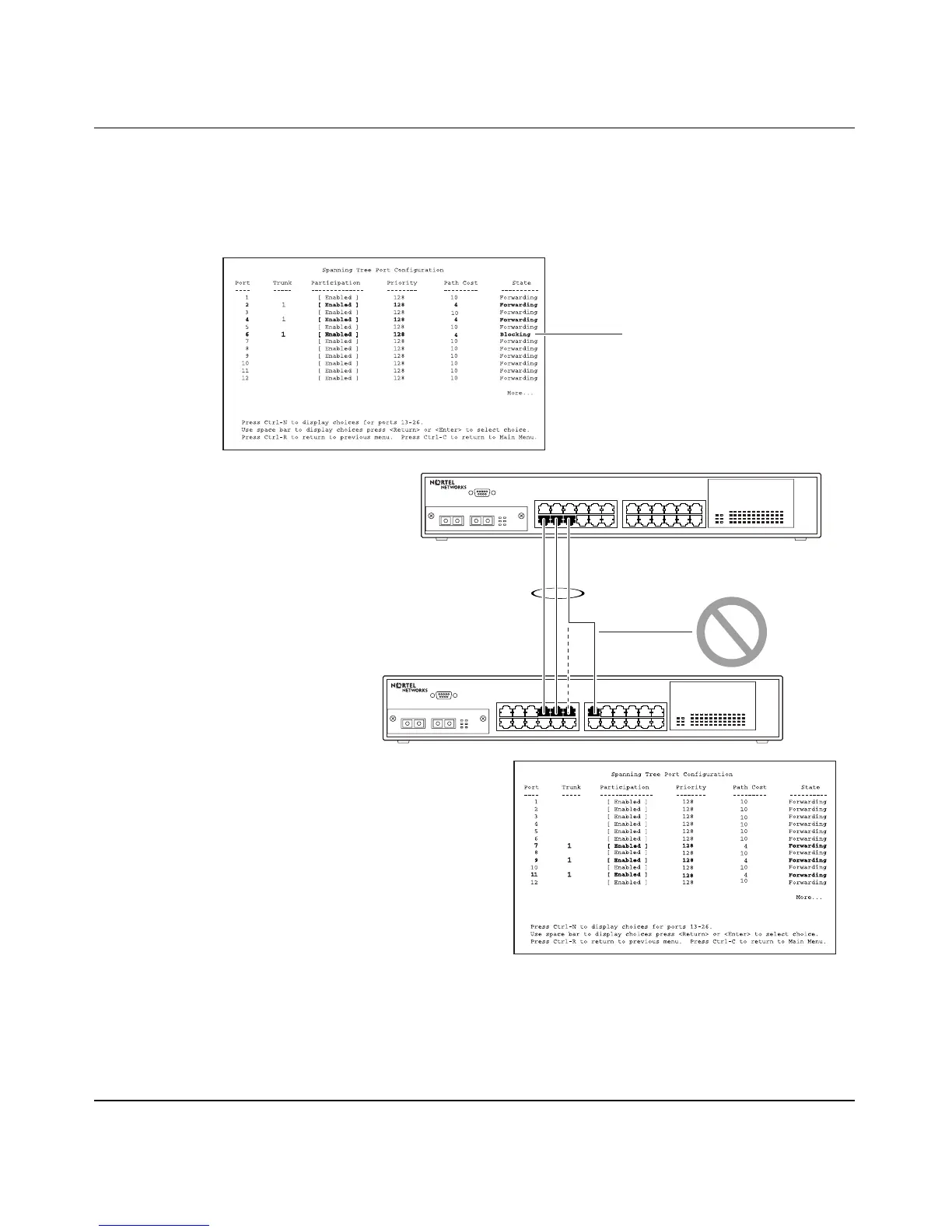

Figure 1-58. Example 2: Detecting a Misconfigured Port
S1
S2
T1
S1 Port Configuration screen
BS45031A
S2 Port Configuration screen
[Blocking]
