BayStack 450 10/100/1000 Series Switches
309978-D Rev 01 1-35
High-Density Switched Workgroup Application
Figure 1-13 shows an example of using a BayStack 450 switch with a high-speed
(gigabit) connection to a Nortel Networks Accelar
™
1100 switch. BayStack 303
and 304 switches are also shown in this example of a high-density switched
workgroup.
As shown in Figure 1-13, the Accelar 1100 switch is used as a backbone switch,
connecting to the BayStack 450 switch with an optional gigabit (1000BASE-SX)
MDA for maximum bandwidth. The BayStack 303 and 304 switches have 100
Mb/s connections to the BayStack 450 switch, a 100BASE-TX hub, and a 100
Mb/s server and 10 Mb/s connections to DTE (data terminal equipment).
See the Nortel Networks library Web page: www25.nortelnetworks.com/library/
for online documentation about the Nortel Networks Accelar 1100 switch and the
BayStack 303 and 304 switches.

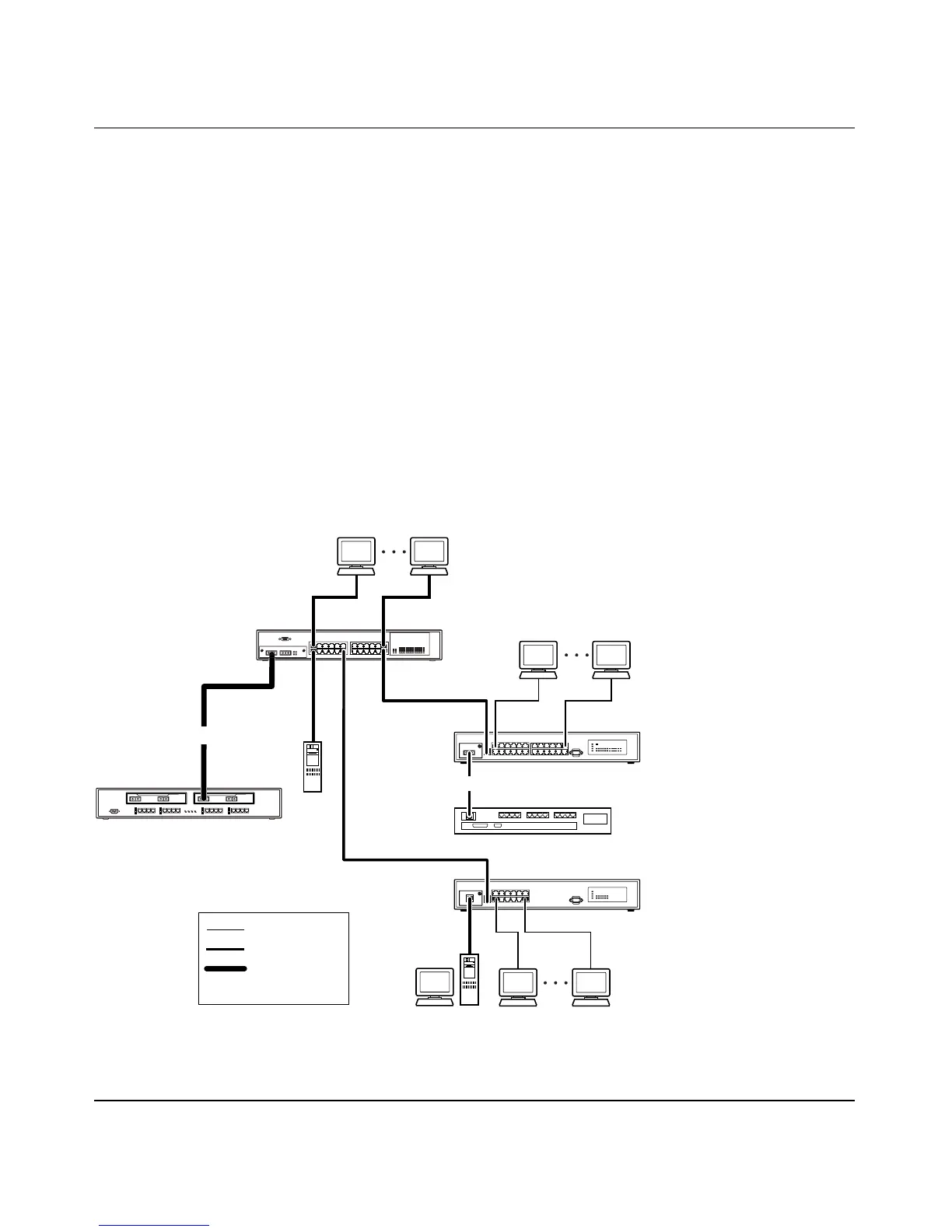

Figure 1-13. Configuring Power Workgroups and a Shared Media Hub
CPU PS1 PS2 FAN
BayStack 304
switch
BayStack 303
switch
100BASE-TX
hub
Key
10 Mb/s
100 Mb/s
1000 Mb/s
(Gigabit)
BayStack 450-24T
switch
Server
Accelar 1100 switch
BS45007A
