Using the BayStack 450 10/100/1000 Series Switch
C-18 309978-D Rev 01
To install an MDA into the Uplink Module slot:
1. Unplug the AC power cord from the back of the switch.
2. Loosen the thumb screws and remove the filler panel (or previously
installed MDA) from the Uplink Module slot.
3. Insert the MDA into the Uplink Module card guides (Figure C-7).
Make sure the MDA slides in on the card guides. Failure to align the MDA to
the card guides could damage the pins.

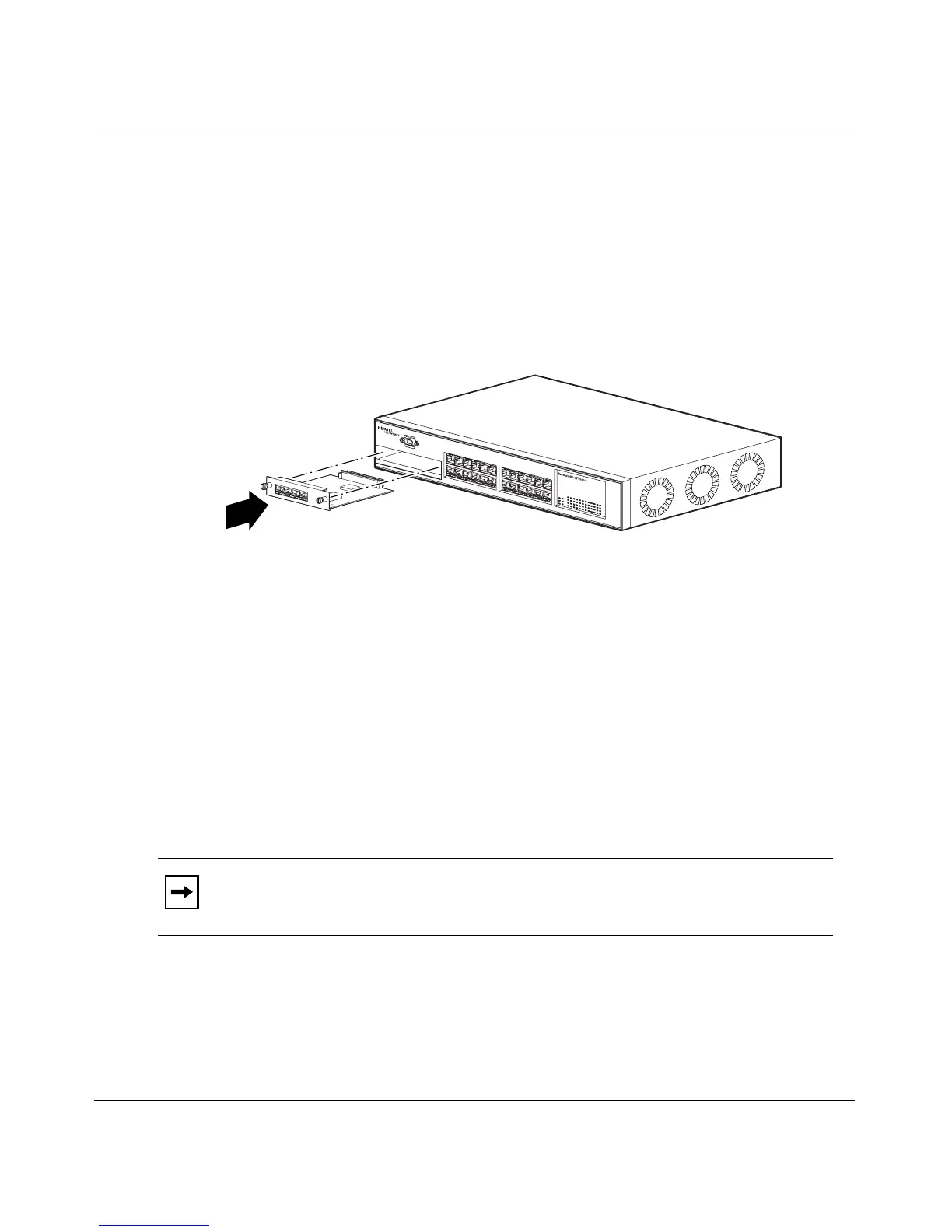

Figure C-7. Installing an MDA
4. Press the MDA firmly into the Uplink Module slot.
Be sure that the MDA is fully seated into the mating connector.
5. Secure the MDA by tightening the thumb screws on the MDA front panel.
6. Attach devices to the MDA ports (see “Attaching Devices to the BayStack
450 Switch” on page 2-7).
After connecting the port cables, continue to follow the instructions in
Chapter 2 to connect power and verify the installation.
Note: The IEEE 802.3u specification requires that all ports operating at
100 Mb/s use only Category 5 unshielded twisted pair (UTP) cabling.
BS35046A
