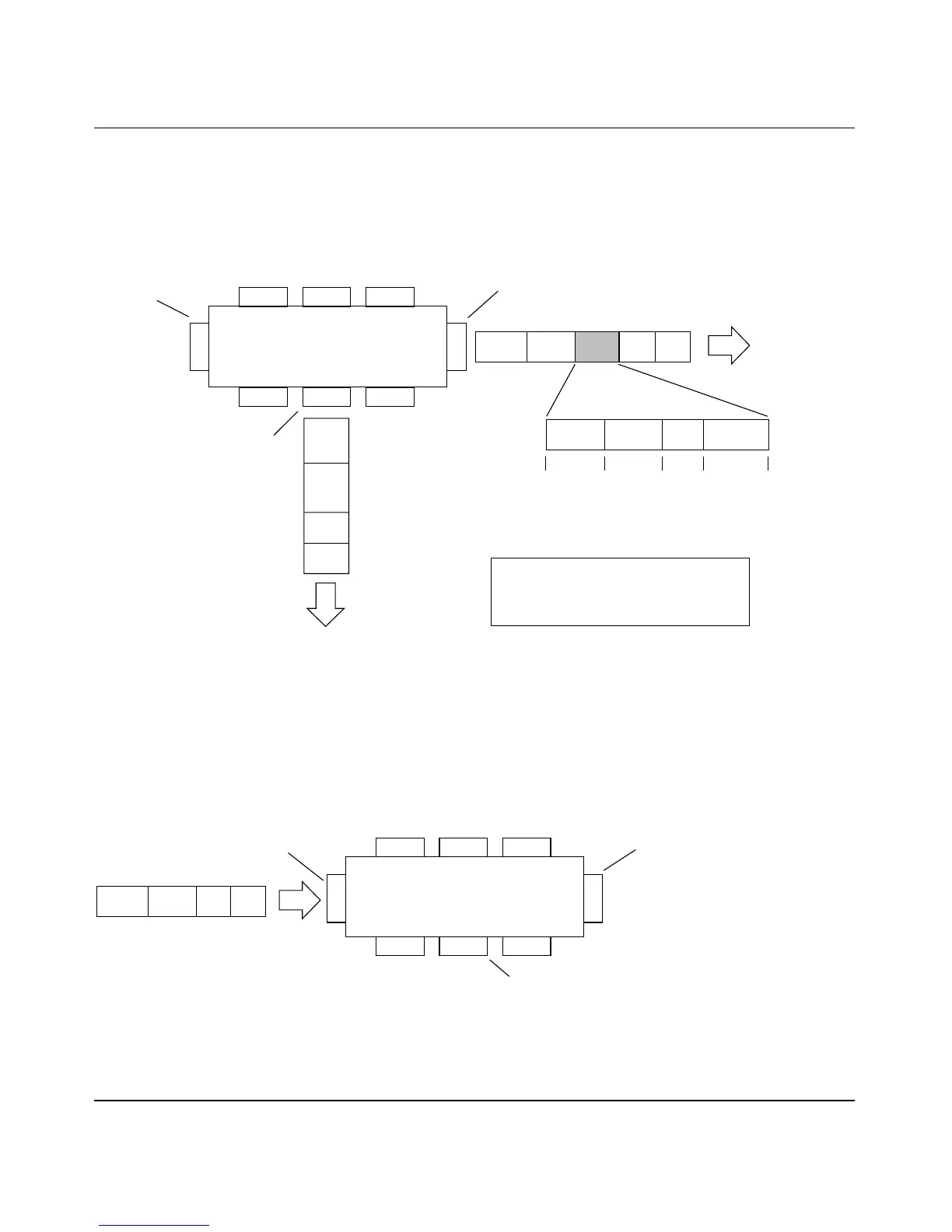

As shown in Figure 1-25, the untagged packet is marked (tagged) as it leaves the
switch through port 5, which is configured as a tagged member of VLAN 2. The
untagged packet remains unchanged as it leaves the switch through port 7, which
is configured as an untagged member of VLAN 2.
Figure 1-25. 802.1Q Tagging (After Port-Based VLAN Assignment)
In Figure 1-26, untagged incoming packets are assigned to VLAN 3 (IP Protocol
VLAN = 3, PVID = 2). Port 5 is configured as a tagged member of VLAN 3, and
port 7 is configured as an untagged member of VLAN 3.
Figure 1-26. Protocol-Based VLAN Assignment
