Using the BayStack 450 10/100/1000 Series Switch
D-6 309978-D Rev 01
Virtual paths enable you to separate network transport functions into types that are
related to an individual logical connection (virtual channel) and types that are
related to a group of logical connections (virtual path).
A transmission path is a physical connection that comprises several virtual paths,
each virtual path containing several virtual channels. The transmission path may
support multiple virtual paths across a single connection to the network.

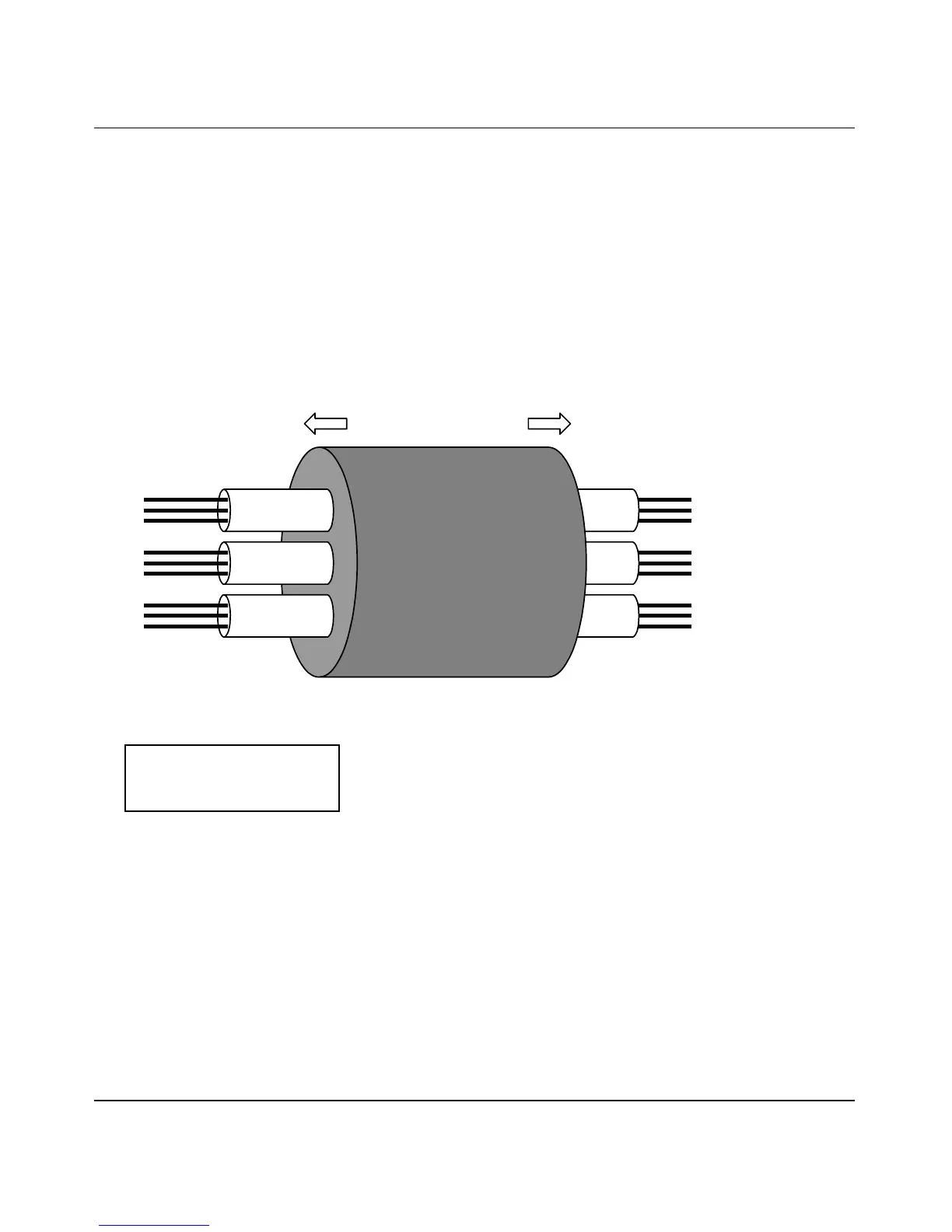

Figure D-2 shows the relationships between the virtual channel, the virtual path,
and the transmission path.
Figure D-2. ATM Transmission Components
Configuration Concepts
This section describes the configuration concepts related to the operation of the
BayStack 450-2M3/2S3 MDA in a standalone or stack configuration.
VC
VC
VC
VP
VP
VP
VC
VC
VC
VP
VP
VP
Transmission Path
VP = Virtual Path
VC = Virtual Channel
Legend
BS45089A
