Configuring Port Mirroring
To create or modify port-mirroring ports, follow the flowcharts in
Figures E-18 and E-19.
Choose Port Mirroring Configuration (or press i) from the Switch Configuration
Menu screen to open the Port Mirroring Configuration screen.

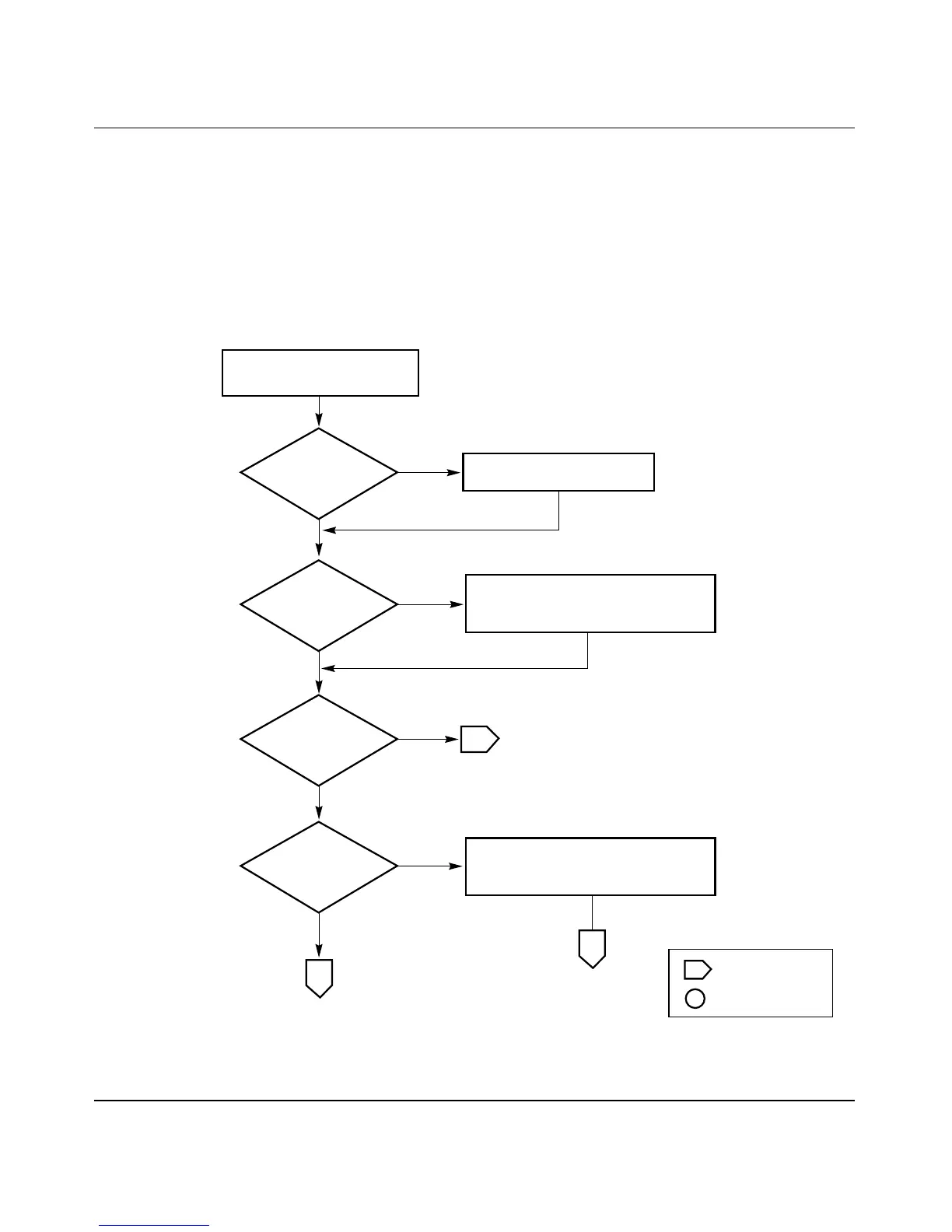

Figure E-18. Configuring Port Mirroring (1 of 2)
Yes
No
No
Set Monitoring Mode field.
Port Mirroring
Configuration screen
Set Monitor Port field (see
"Port Mirroring Configuration Rules").
Configure Ports X and Y fields (see
"Port Mirroring Configuration Rules").
BS45051A
Is
Monitoring Mode
field set?
Is
Monitor Port
field set?
Yes
Is
Monitor Port
set for port-based
mode?
Yes
Yes
No
1
Are
Ports X and Y fields
configured?
No
1
2
Off-page reference
On-page reference
Key
To Next Page
