Using the BayStack 450 10/100/1000 Series Switch
1-42 309978-D Rev 01
Cascade A In Connector
Provides an attachment point for accepting a cascade cable connection from an
adjacent unit in the stack. A return cable from this unit’s Cascade A Out connector
to the adjacent unit’s Cascade A In connector completes the stack connection (see
the example shown in
Figure 1-18).

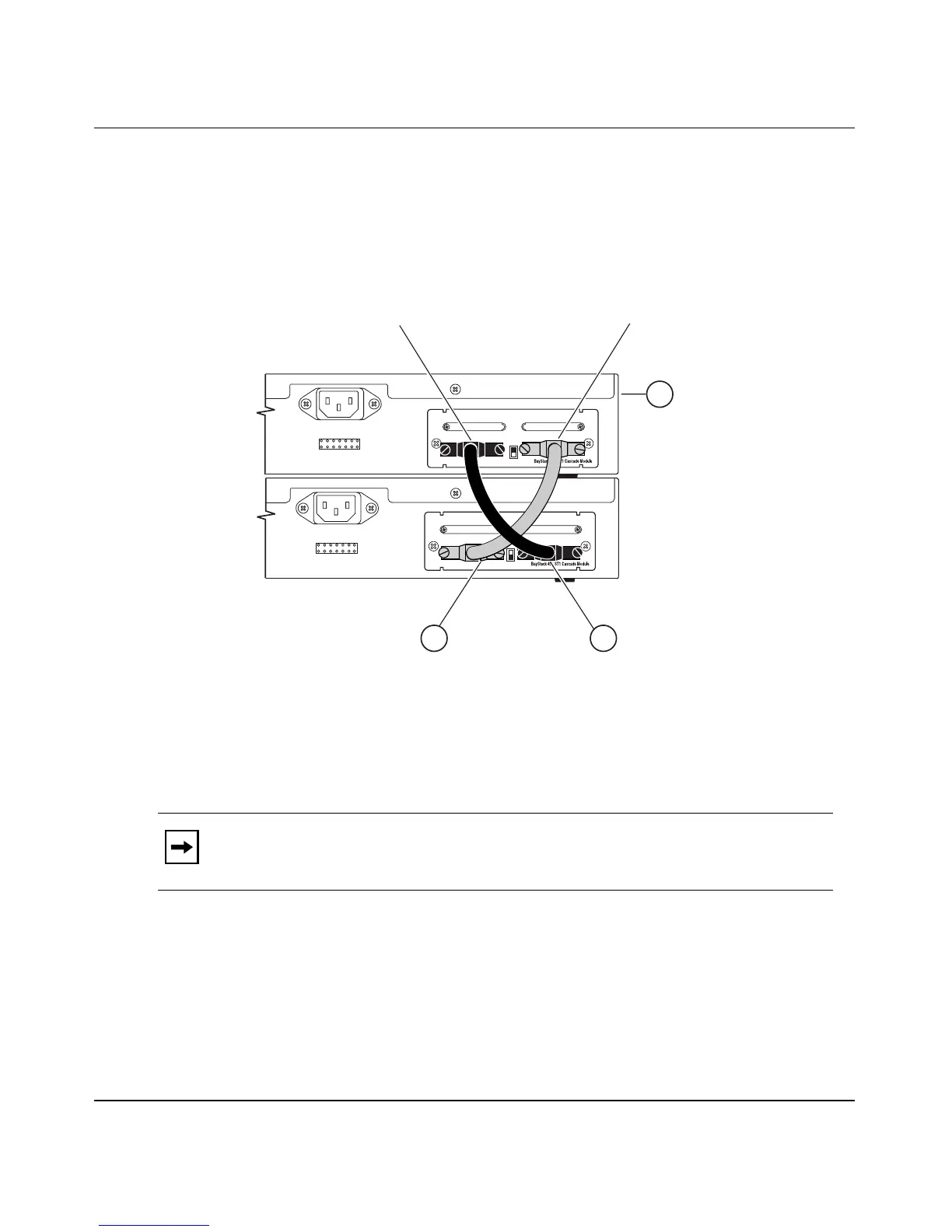

Figure 1-18. Connecting Cascade Cables
Note: For stacking three or more units (maximum 8 units per stack), order the
optional 1 meter (3.28 ft) cascade return cable (Order No. AL2018001).
Cascade A Out
Unit 1
Cascade A Out
Cascade A In
Unit 2
1 = Base unit
2 = 303978-A cascade cable
3 = 303978-A cascade cable (used for return)
BS0032B
Cascade A InUnit Select
Cascade A Out
Cascade A InUnit Select
32
1
