Using the BayStack 450 10/100/1000 Series Switch
E-4 309978-D Rev 01

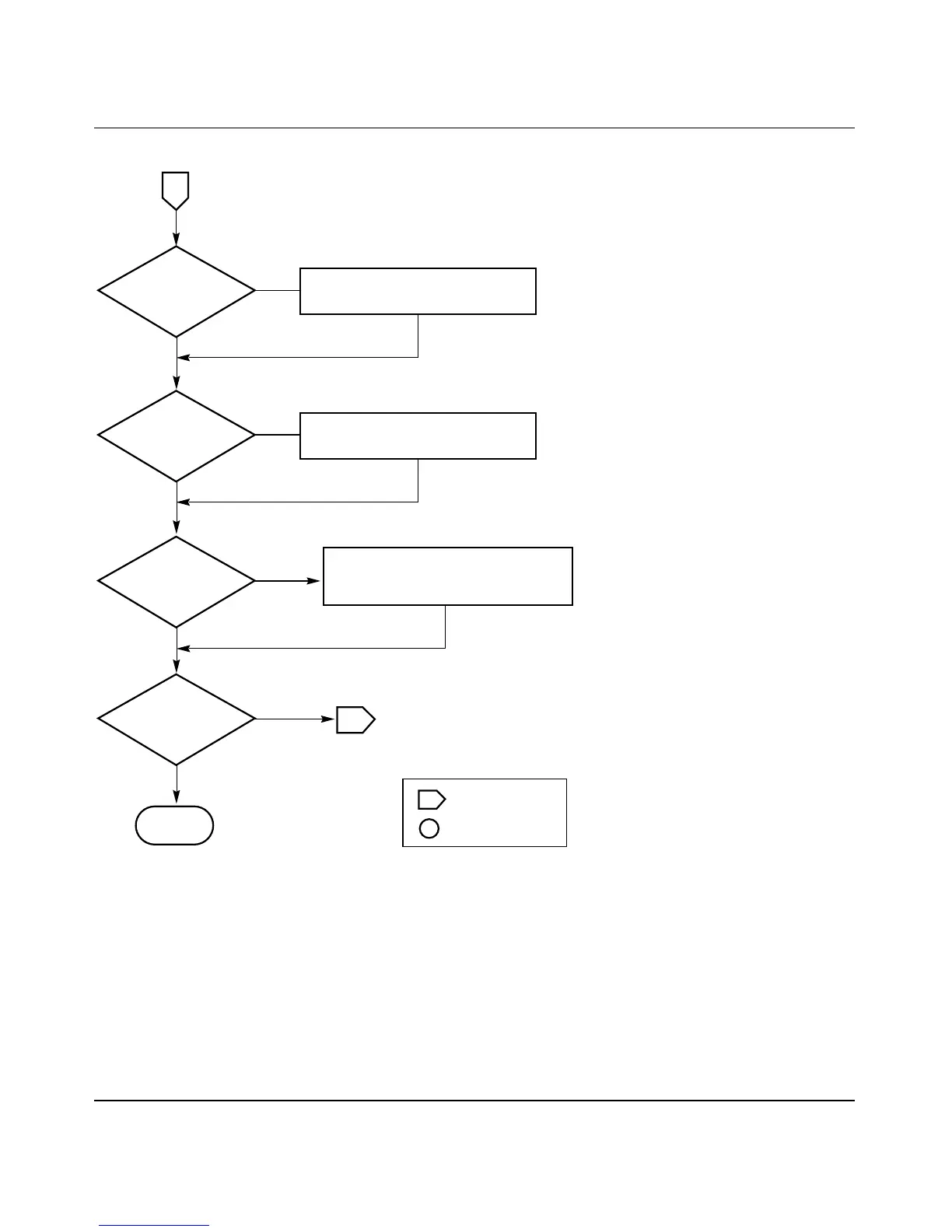

Figure E-3. Configuring 802.1Q VLANs (3 of 3)
Yes
No
No
Set tagged, untagged,
unregistered filters, if necessary.
Set Port Priority.
See also the Traffic Class
Configuration screen, if necessary.
BS45048C
Is filtering
correct?
Is
Port Priority
correct?
Yes
Are
all VLANs
configured?
Yes
2
No
3
Done
Off-page reference
On-page reference
Key
Yes
No
Set Tagging field on
VLAN Port Configuration screen.
Is
VLAN tag
correct?
