Physical Description
There are three versions of the BayStack 450 switch: the BayStack 450-24T
switch, the BayStack 450-12T switch, and the BayStack 450-12F switch
(Figure 1-1).

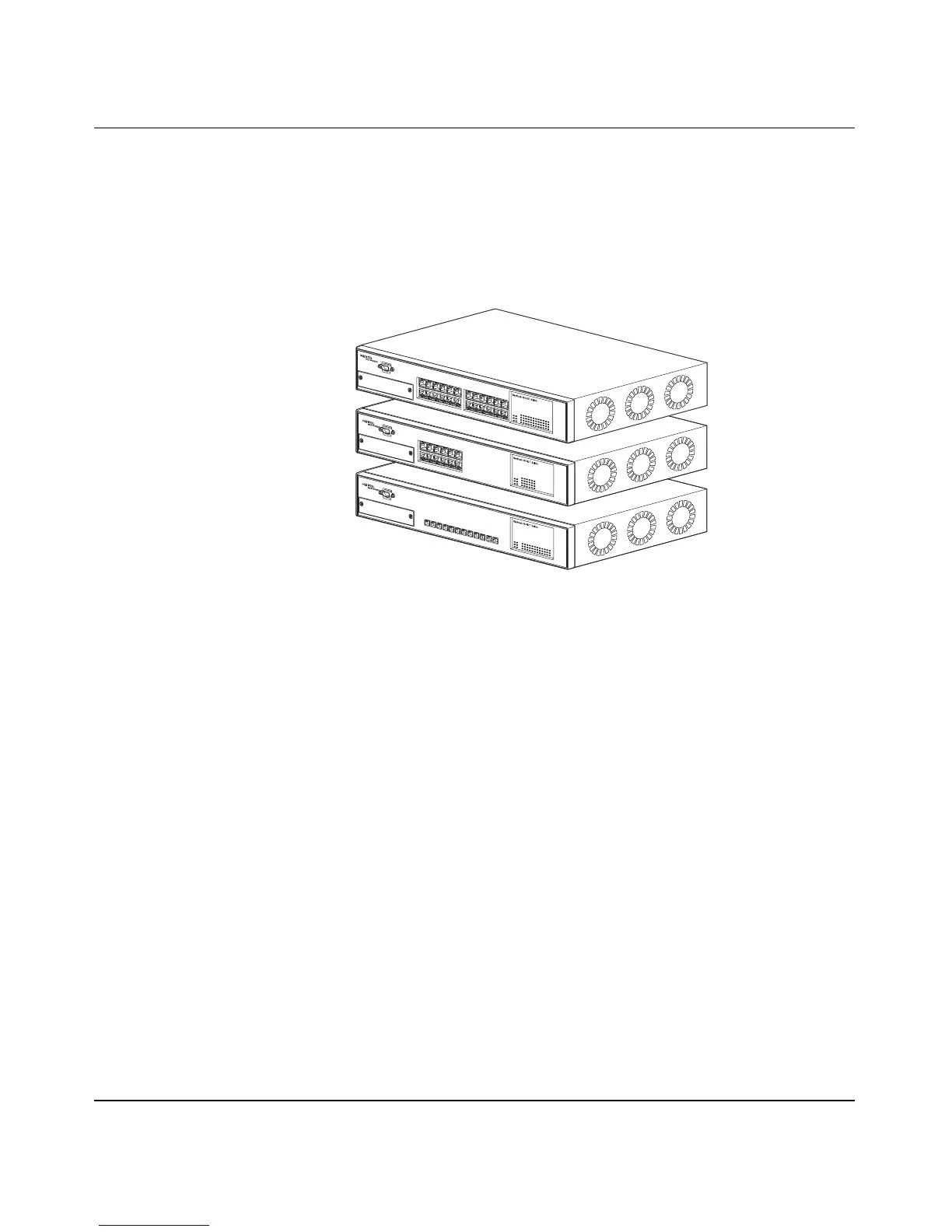

Figure 1-1. BayStack 450 Switch Versions
Front Panel
Figure 1-2 shows the front-panel configurations for the three BayStack 450 switch
models. Descriptions of the front-panel components follow the figures.
For a description of the components located on the back panel of the BayStack
450 switch, see “
Back Panel” on page 1-10.
BayStack 450-24T
BayStack 450-12T
BS45001B
BayStack 450-12F
