Nortel BayStack 450-24T User Manual

Using the BayStack 450 10/100/1000 Series Switch
F-4 309978-D Rev 01
MDI-X to MDI-X Cable Connections
If you are connecting the BayStack 450 switch to a device that also implements
MDI-X ports, use a crossover cable (
Figure F-3).

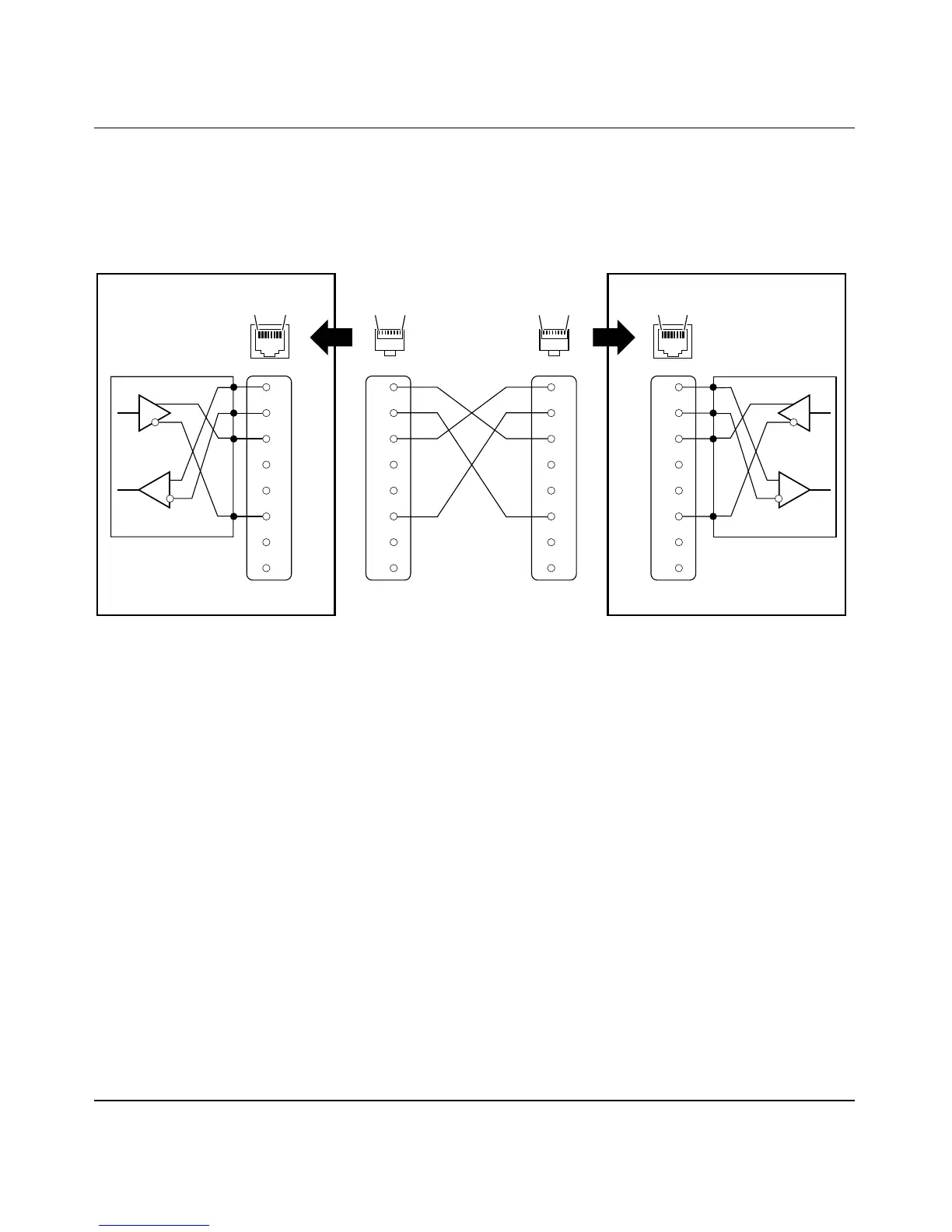

Figure F-3. MDI-X to MDI-X Cable Connections
1818
81 81
RX+
RX-
TX+
TX-
RX+
RX-
TX+
TX-
MDI-X port
BayStack 450 switch Switch or hub
Crossover cable MDI-X port
T
R
T
R
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
BS45057A
