There are two 100BASE-FX models (Figure C-2):
• 400-2FX MDA
The 400-2FX MDA uses two longwave 1300 nm SC connectors to attach
devices over 62.5/125- or 50/125-micron multimode fiber optic cable.
• 400-4FX MDA
The 400-4FX MDA uses four longwave 1300 nm MT-RJ connectors to attach
devices over 62.5/125- or 50/125-micron multimode fiber optic cable.

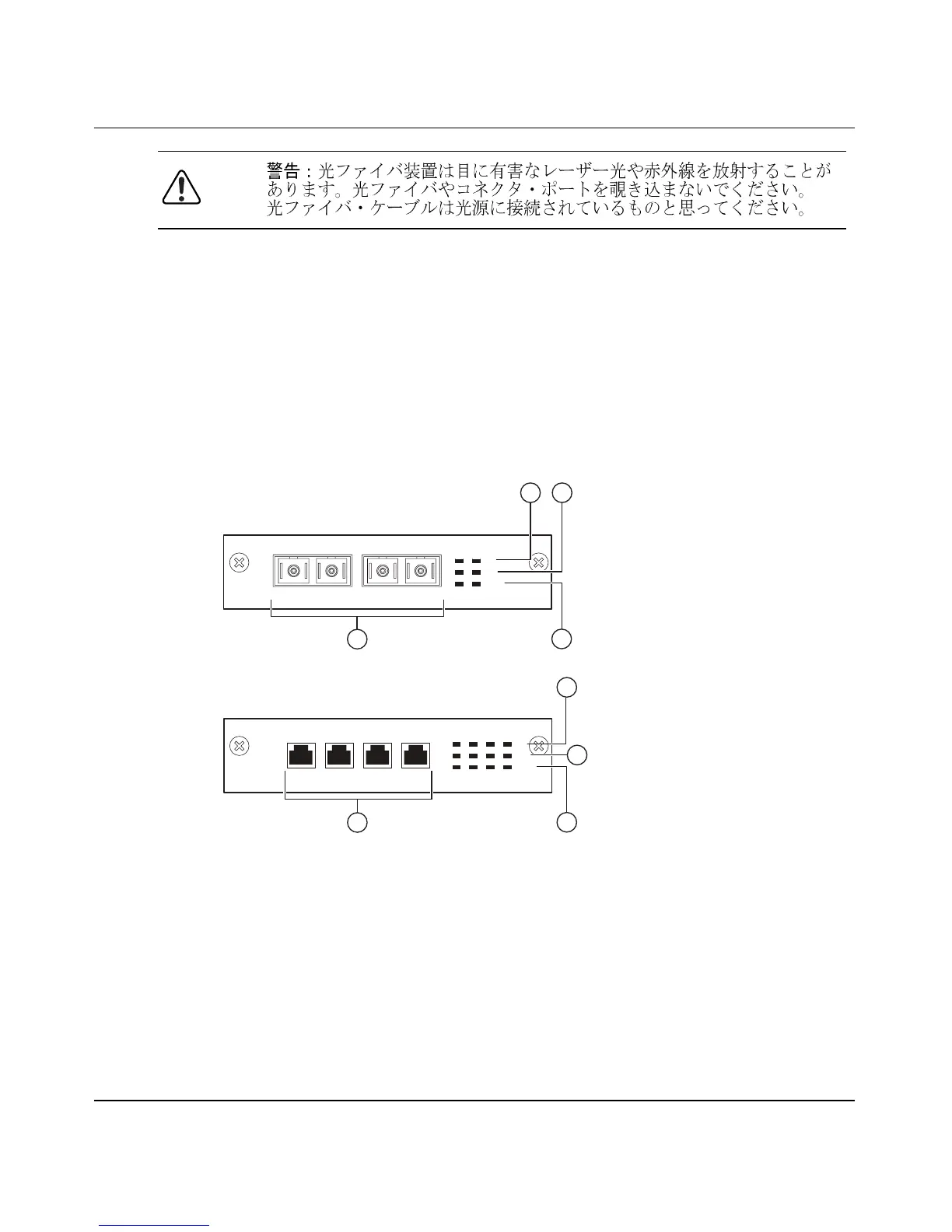

Figure C-2. 100BASE-FX MDA Front Panels
Both models conform to the IEEE 802.3u 100BASE-FX standard and can be used
for fiber-based 100 Mb/s connections (2 km/1.2 mi maximum distance) to other
compatible Fast Ethernet devices. Single-mode fiber cable is not supported.
Table C-2 describes the 100BASE-FX components and LEDs.
RXTX
100BASE-FX
RXTX
100BASE-FX
Activity
Link
F Dx
400-2FX MDA
BS45043A
3
4
21
Activity
Link
F Dx
400-4FX MDA
3
4
2
1
