R&S FSW Series User Manual

Common Analysis and Display Functions
R&S
®
FSW
583User Manual 1173.9411.02 ─ 43
Trace 1/Trace 2/Trace 3/Trace 4/Trace 5/Trace 6.......................................................583
Trace Mode................................................................................................................. 583
Detector.......................................................................................................................584
Hold.............................................................................................................................584
Smoothing...................................................................................................................585
Average Mode.............................................................................................................585
Average Count............................................................................................................ 585
Predefined Trace Settings - Quick Config...................................................................586
Trace 1/ Trace 2/ Trace 3/ Trace 4 (Softkeys).............................................................586
Copy Trace..................................................................................................................586

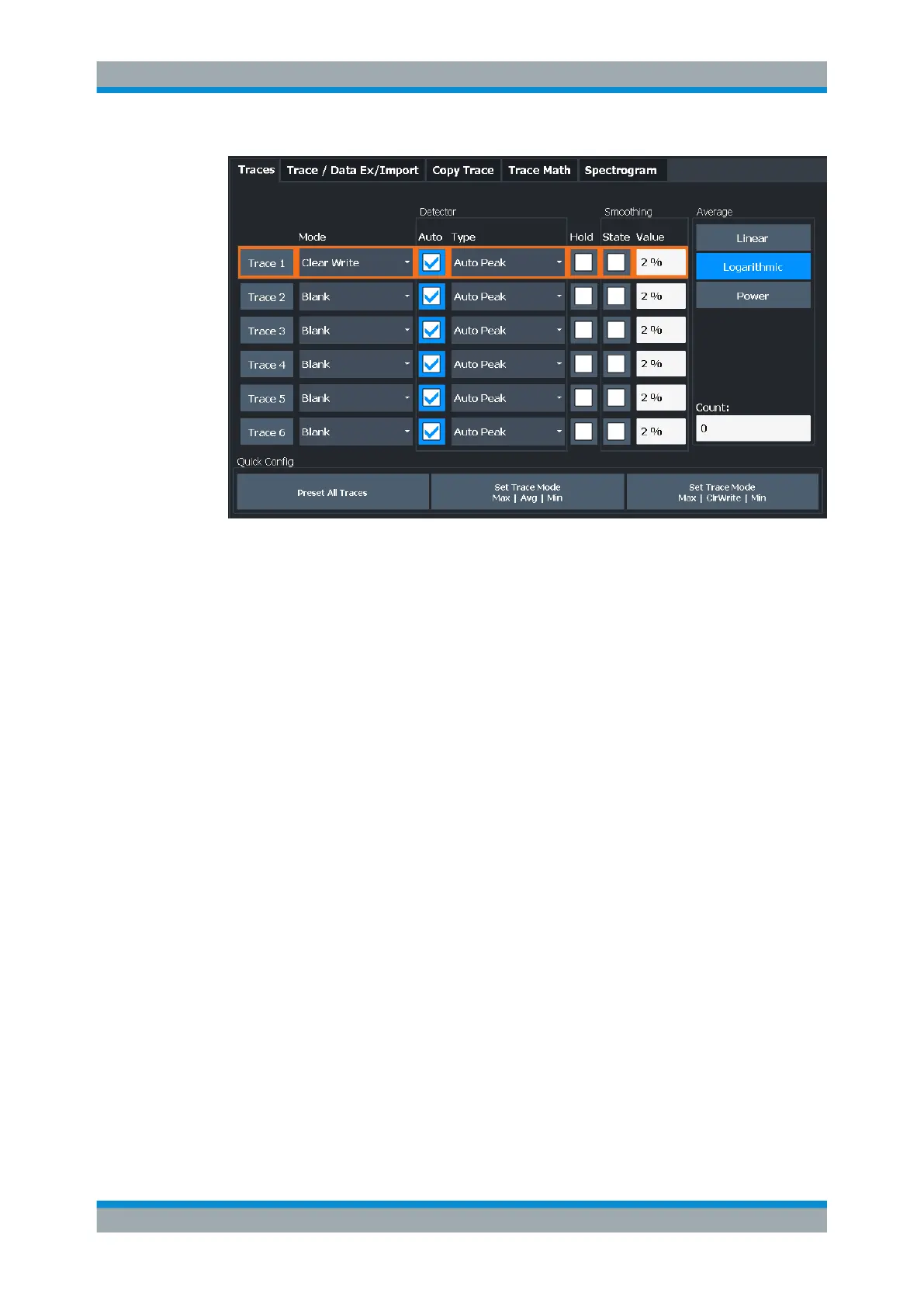

Trace 1/Trace 2/Trace 3/Trace 4/Trace 5/Trace 6
Selects the corresponding trace for configuration. The currently selected trace is high-
lighted.
For details see Chapter 9.5.1.3, "How to Configure a Standard Trace", on page 587.
Remote command:
Selected via numeric suffix of:TRACe<1...6> commands
DISPlay[:WINDow<n>][:SUBWindow<w>]:TRACe<t>[:STATe] on page 1127
Trace Mode
Defines the update mode for subsequent traces.
For details, see "Analyzing Several Traces - Trace Mode" on page 579.
"Clear/ Write"
Overwrite mode (default): the trace is overwritten by each sweep.
The "Detector" is automatically set to "Auto Peak".
"Max Hold"
The maximum value is determined over several sweeps and dis-
played. The R&S FSW saves each trace point in the trace memory
only if the new value is greater than the previous one.
The "Detector" is automatically set to "PositivePeak".
This mode is not available for statistics measurements.
Trace Configuration
