General Instrument Setup
R&S
®
FSW
668User Manual 1173.9411.02 ─ 43
Theme.........................................................................................................................668
Screen Colors............................................................................................................. 668
Print Colors................................................................................................................. 668
Showing Print Colors on Display.................................................................................669
Modifying User-Defined Color Assignments............................................................... 669
â”” Selecting the Object......................................................................................670
â”” Predefined Colors......................................................................................... 670
â”” Preview......................................................................................................... 670
Defining User-specific Colors......................................................................................671
Restoring the User Settings to Default Colors............................................................ 671

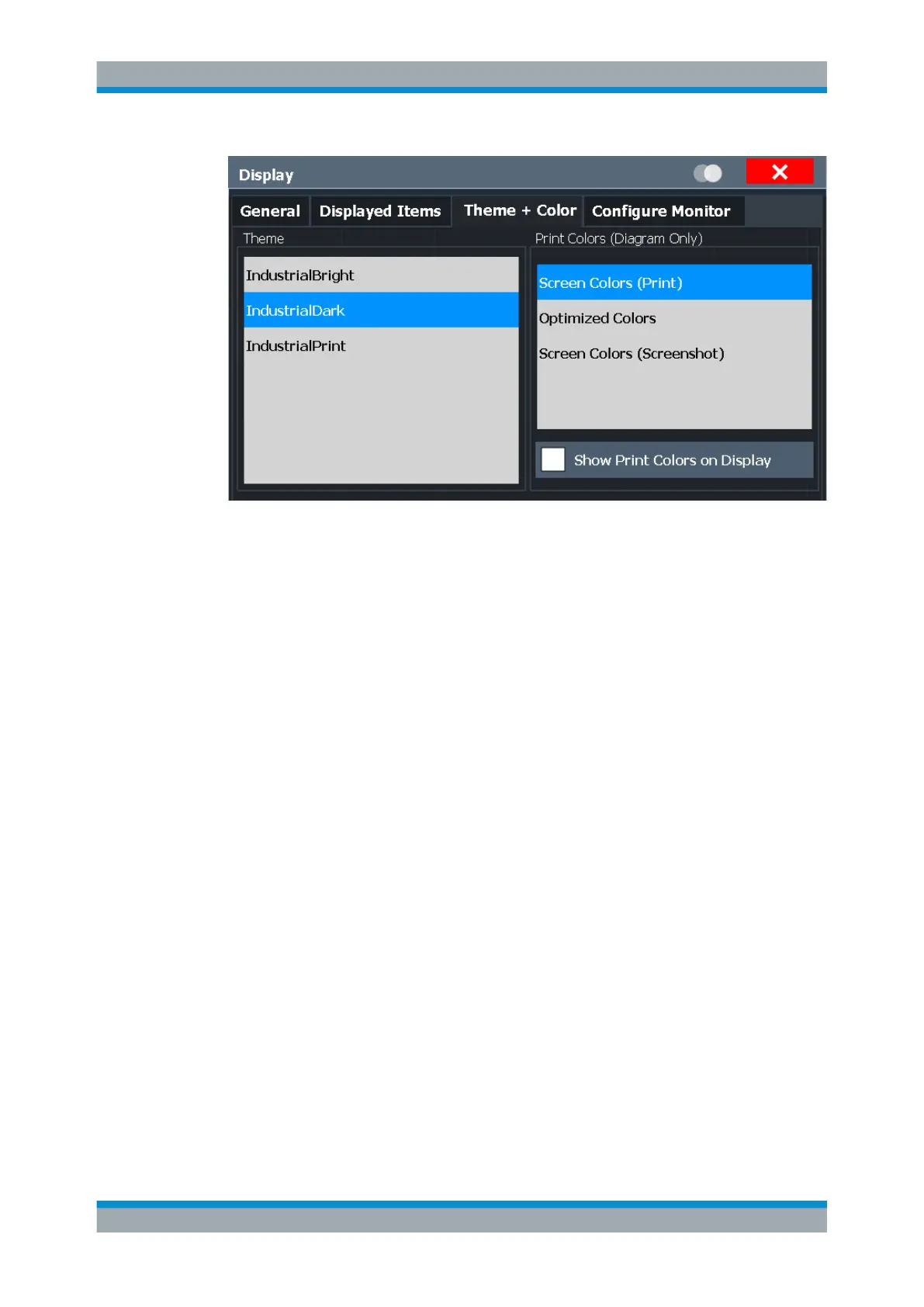

Theme
The theme defines the colors and style used to display softkeys and other screen
objects.
The default theme is "IndustrialDark".
Remote command:
DISPlay:THEMe:SELect on page 1293
Screen Colors
Two different color sets are provided by the instrument, a third user-defined set can be
configured.
The default color schemes provide optimum visibility of all screen objects when regard-
ing the screen from above or below. Default setting is "Default Colors 1".
If "User Defined Colors" is selected, a user-defined color set can be defined (see
"Defining User-specific Colors" on page 671).
Remote command:
DISPlay:CMAP<it>:DEFault<ci> on page 1292
Print Colors
Defines the color settings used for printout.
