RL78/G10 CHAPTER 12 SERIAL ARRAY UNIT

R01UH0384EJ0311 Rev. 3.11 398

Dec 22, 2016

(2) Processing flow

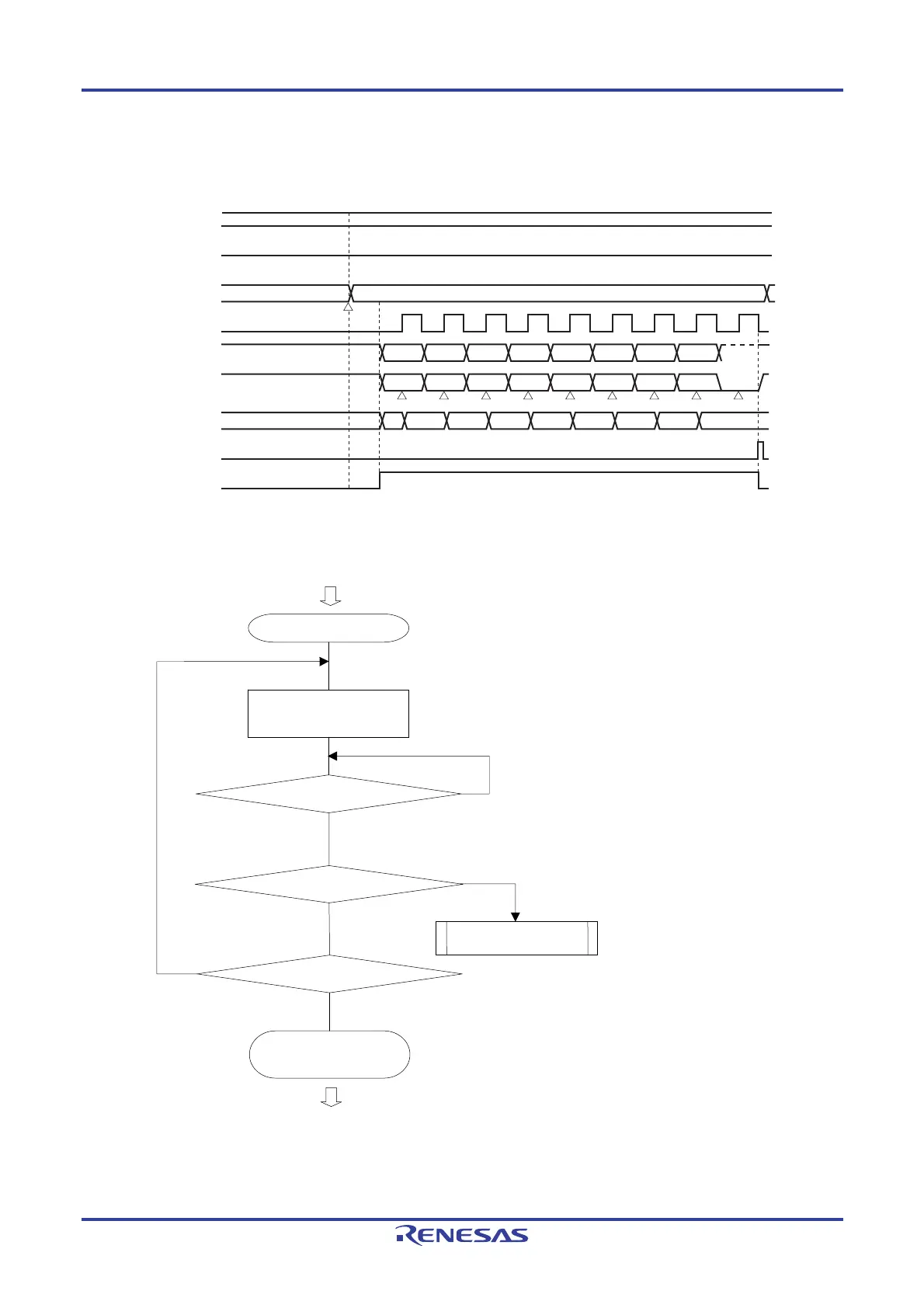

Figure 12-91. Timing Chart of Data Transmission

D7 D6 D5 D4 D3 D2 D1 D0

D7 D6

SS0n

SE0n

SOE0n

SDR0nL

SCLr output

SDAr output

SDAr input

Shift

INTIICr

TSF0n

D5 D4 D3 D2 D1 D0

Shift operation

“L”

“H”

Transmit data 1

Figure 12-92. Flowchart of Simplified I

C Data Transmission

Starting data transmission

Data transmission

completed

Transfer end interrupt

enerated?

Yes

Writing data to SIOr

(SDR0nL)

Yes

Stop condition generation

Data transfer completed?

Yes

Address field

transmission completed

Responded ACK?

Communication error

processing

Wait for transmission complete.

(Clear the interrupt request flag)

Transmission start by writing

CK acknowledgment from the slave

If ACK (PEF = 0), to the next process

if NACK (PEF = 1), to error handling
