RL78/G10 CHAPTER 13 SERIAL INTERFACE IICA

R01UH0384EJ0311 Rev. 3.11 433

Dec 22, 2016

13.5.5 Stop condition

When the SCLA0 pin is at high level, changing the SDAA0 pin from low level to high level generates a stop condition.

A stop condition is a signal that the master device generates to the slave device when serial transfer has been

completed. When the device is used as a slave, stop conditions can be detected.

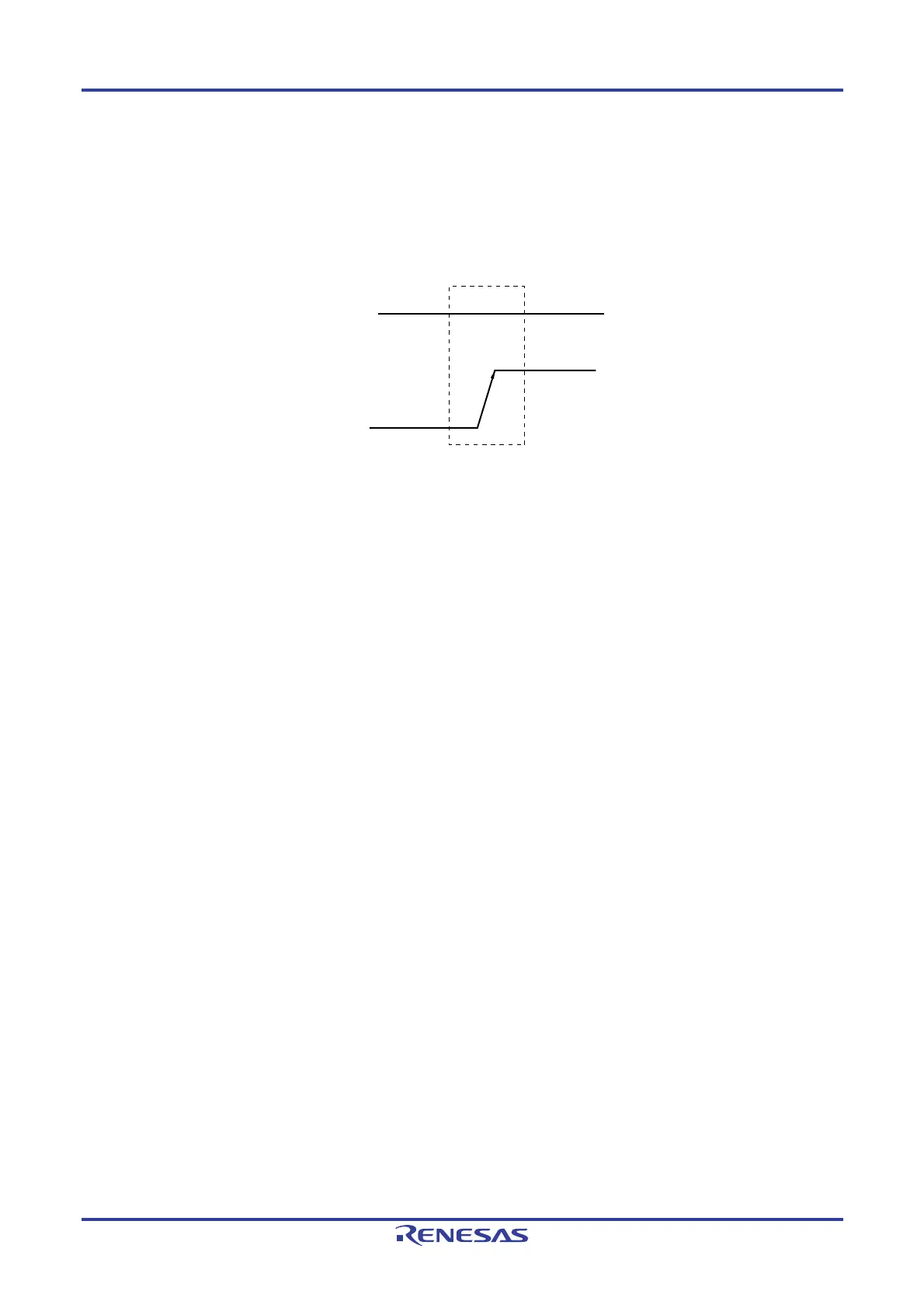

Figure 13-18. Stop Condition

SCLA0

SDAA0

A stop condition is generated when bit 0 (SPT0) of IICA control register 00 (IICCTL00) is set to 1. When the stop

condition is detected, bit 0 (SPD0) of the IICA status register 0 (IICS0) is set to 1 and INTIICA0 is generated when bit 4

(SPIE0) of the IICCTL00 register is set to 1.
