RL78/G10 CHAPTER 13 SERIAL INTERFACE IICA

R01UH0384EJ0311 Rev. 3.11 464

Dec 22, 2016

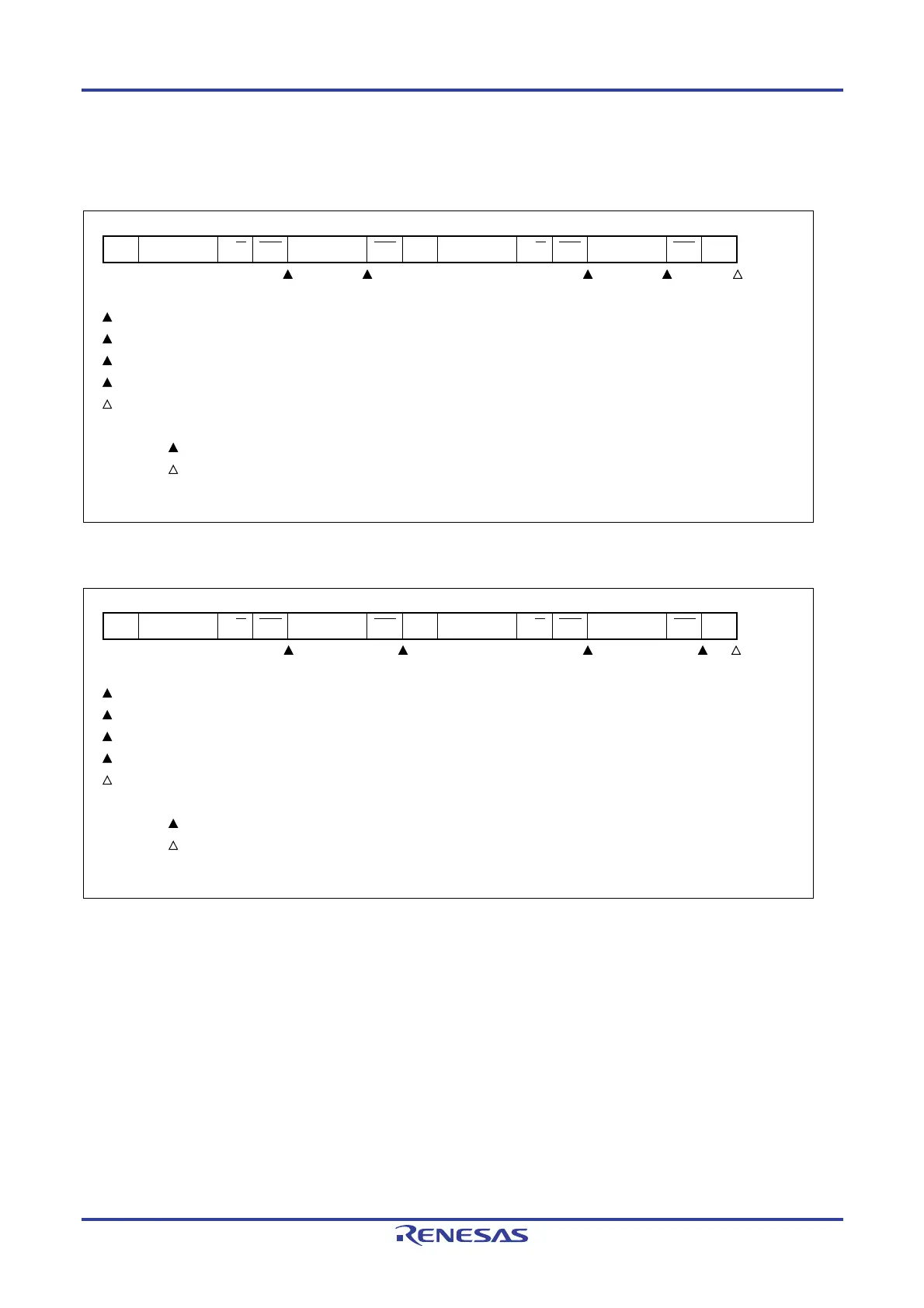

(b) Start ~ Address ~ Data ~ Start ~ Address ~ Data ~ Stop

(i) When WTIM0 = 0 (after restart, matches with SVA0)

ST AD6 to AD0 R/W ACK D7 to D0 AD6 to AD0ACK ACK SPST R/W D7 to D0 ACK

3 4 5 2 1

1: IICS0 = 0001×110B

2: IICS0 = 0001×000B

3: IICS0 = 0001×110B

4: IICS0 = 0001×000B

5: IICS0 = 00000001B

Remark

: Always generated

: Generated only when SPIE0 = 1

×: Don’t care

(ii) When WTIM0 = 1 (after restart, matches with SVA0)

ST AD6 to AD0 R/W ACK D7 to D0 AD6 to AD0ACK ACK SPST R/W D7 to D0 ACK

3 4 5 2 1

1: IICS0 = 0001×110B

2: IICS0 = 0001××00B

3: IICS0 = 0001×110B

4: IICS0 = 0001××00B

5: IICS0 = 00000001B

Remark : Always generated

: Generated only when SPIE0 = 1

×: Don’t care
