RL78/G10 CHAPTER 13 SERIAL INTERFACE IICA

R01UH0384EJ0311 Rev. 3.11 468

Dec 22, 2016

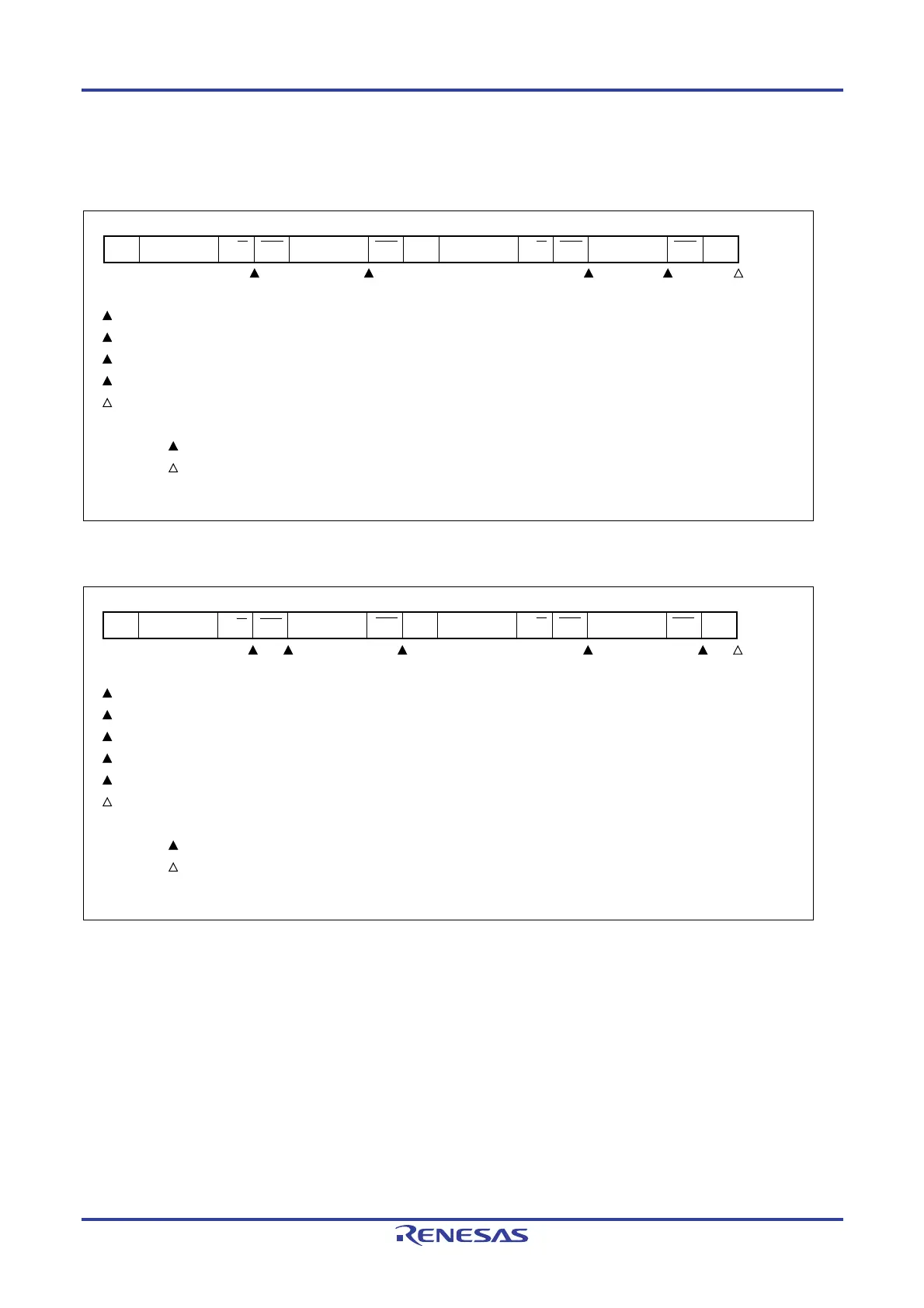

(b) Start ~ Code ~ Data ~ Start ~ Address ~ Data ~ Stop

(i) When WTIM0 = 0 (after restart, matches SVA0)

ST AD6 to AD0 R/W ACK D7 to D0 AD6 to AD0ACK ACK SPST R/W D7 to D0 ACK

3 4 5 2 1

1: IICS0 = 0010×010B

2: IICS0 = 0010×000B

3: IICS0 = 0001×110B

4: IICS0 = 0001×000B

5: IICS0 = 00000001B

Remark : Always generated

: Generated only when SPIE0 = 1

×: Don’t care

(ii) When WTIM0 = 1 (after restart, matches SVA0)

ST AD6 to AD0 R/W ACK D7 to D0 AD6 to AD0ACK ACK SPST R/W D7 to D0 ACK

3 4 6 2 1 5

1: IICS0 = 0010×010B

2: IICS0 = 0010×110B

3: IICS0 = 0010××00B

4: IICS0 = 0001×110B

5: IICS0 = 0001××00B

6: IICS0 = 00000001B

Remark

: Always generated

: Generated only when SPIE0 = 1

×: Don’t care
