Sel 2414 - Event Messenger Points

6.13
Date Code 20130214 Instruction Manual SEL-2414 Transformer Monitor
Settings
Global Settings (SET G Command)
Set the FNOM setting equal to your system nominal frequency. The DATE_F set-
ting allows you to change the device date presentation format to either North
American standard (Month/Day/Year), engineering standard (Year/Month/Day),
or European standard (Day/Month/Year).
Event Messenger
Points
The SEL-2414 can be configured to automatically send ASCII message on a
communications port when trigger condition is satisfied. Use the SET P
command to set PROTO := EVMSG on the desired port to select the port. This
feature is designed to send messages to the SEL-3010 Event Messenger,
however, any device capable of receiving ASCII messages can be used.
NOTE: When Event Messenger points
are selected for the desired port, all
other communications on the selected
port are disabled.
Set each of MPTRx (x = 1–5) to the desired Device Word bits, the rising edge of
which defines the trigger condition. Trigger conditions for Event Messenger
points are updated every five seconds.

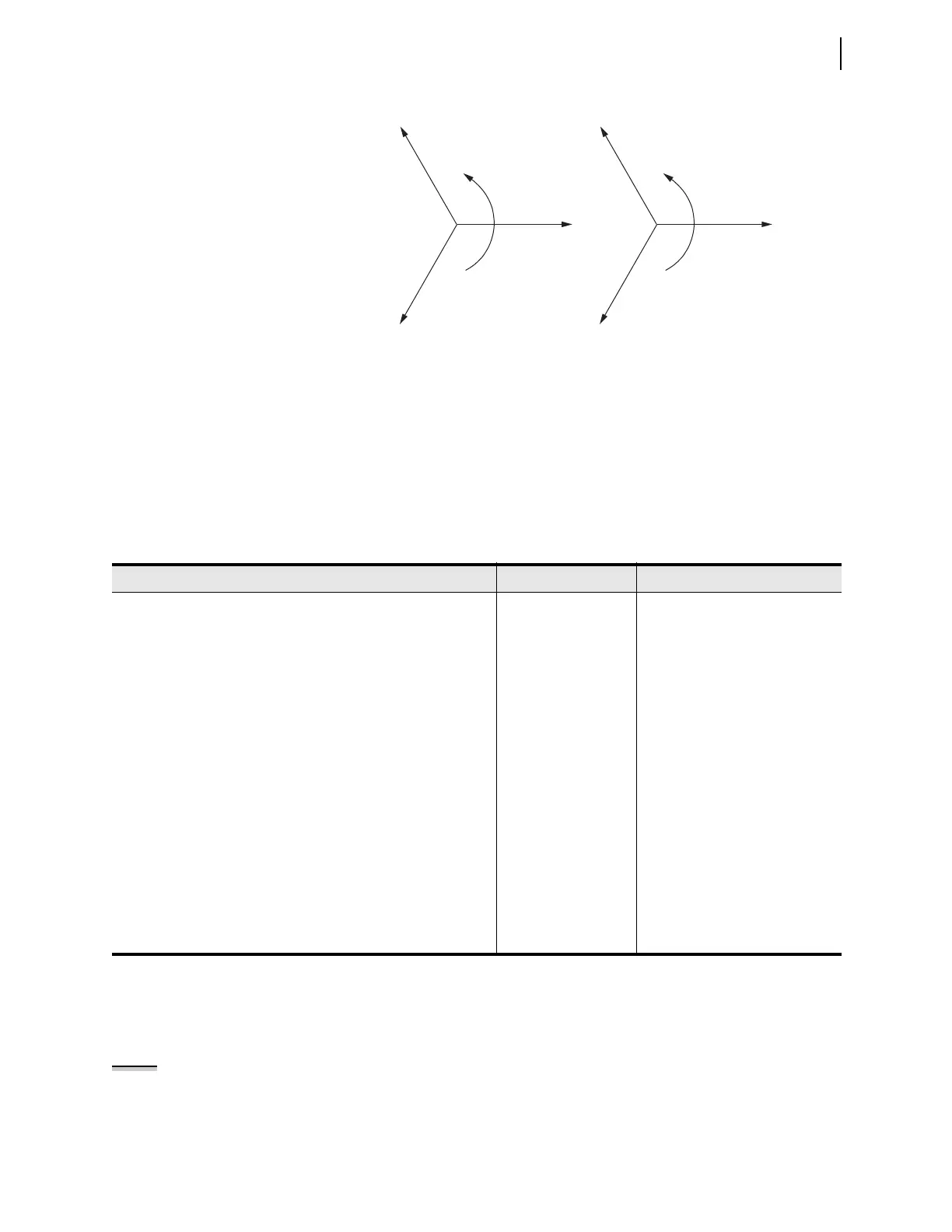

Figure 6.6 Phase Rotation Setting
B
C
A
C
PHROT = ABC
A
PHROT = ACB
B
Tab l e 6 .1 4 Eve nt Messe n ge r Po i nt s
Setting Prompt Setting Range Setting Name := Factory Default
MESSENGER POINT TRIGGER Off, 1 Device Word bit MPTR1 := OFF
MESSENGER POINT ANALOG QUANTITY None, 1 analog quantity MPAQ1 := NONE
MESSENGER POINT TEXT 148 characters MPTX1 :=
MESSENGER POINT TRIGGER Off, 1 Device Word bit MPTR2 := OFF
MESSENGER POINT ANALOG QUANTITY None, 1 analog quantity MPAQ2 := NONE
MESSENGER POINT TEXT 148 characters MPTX2 :=
MESSENGER POINT TRIGGER Off, 1 Device Word bit MPTR3 := OFF
MESSENGER POINT ANALOG QUANTITY None, 1 analog quantity MPAQ3 := NONE
MESSENGER POINT TEXT 148 characters MPTX3 :=
MESSENGER POINT TRIGGER Off, 1 Device Word bit MPTR4 := OFF
MESSENGER POINT ANALOG QUANTITY None, 1 analog quantity MPAQ4 := NONE
MESSENGER POINT TEXT 148 characters MPTX4 :=
MESSENGER POINT TRIGGER Off, 1 Device Word bit MPTR5 := OFF
MESSENGER POINT ANALOG QUANTITY None, 1 analog quantity MPAQ5 := NONE
MESSENGER POINT TEXT 148 characters MPTX5 :=
