9.3
Date Code 20130214 Instruction Manual SEL-2414 Transformer Monitor
Analyzing Events
Event Reporting
Event Summaries
For every triggered event, the device generates and stores an event summary. The
device stores the most recent 17 (if event report length setting LER := 15) or 4 (if
LER := 64) event summaries. When the device stores a new event summary, it
discards the oldest event and event summary if the event memory is full. The
example event summary in Figure 9.1 shows the available information.
The device sends event summaries to all serial ports with setting AUTO := Y
each time an event triggers.
With optional currents and/or voltages installed, the current and/or voltage fields
will display the magnitudes shown below at the instant the ER equation asserted.

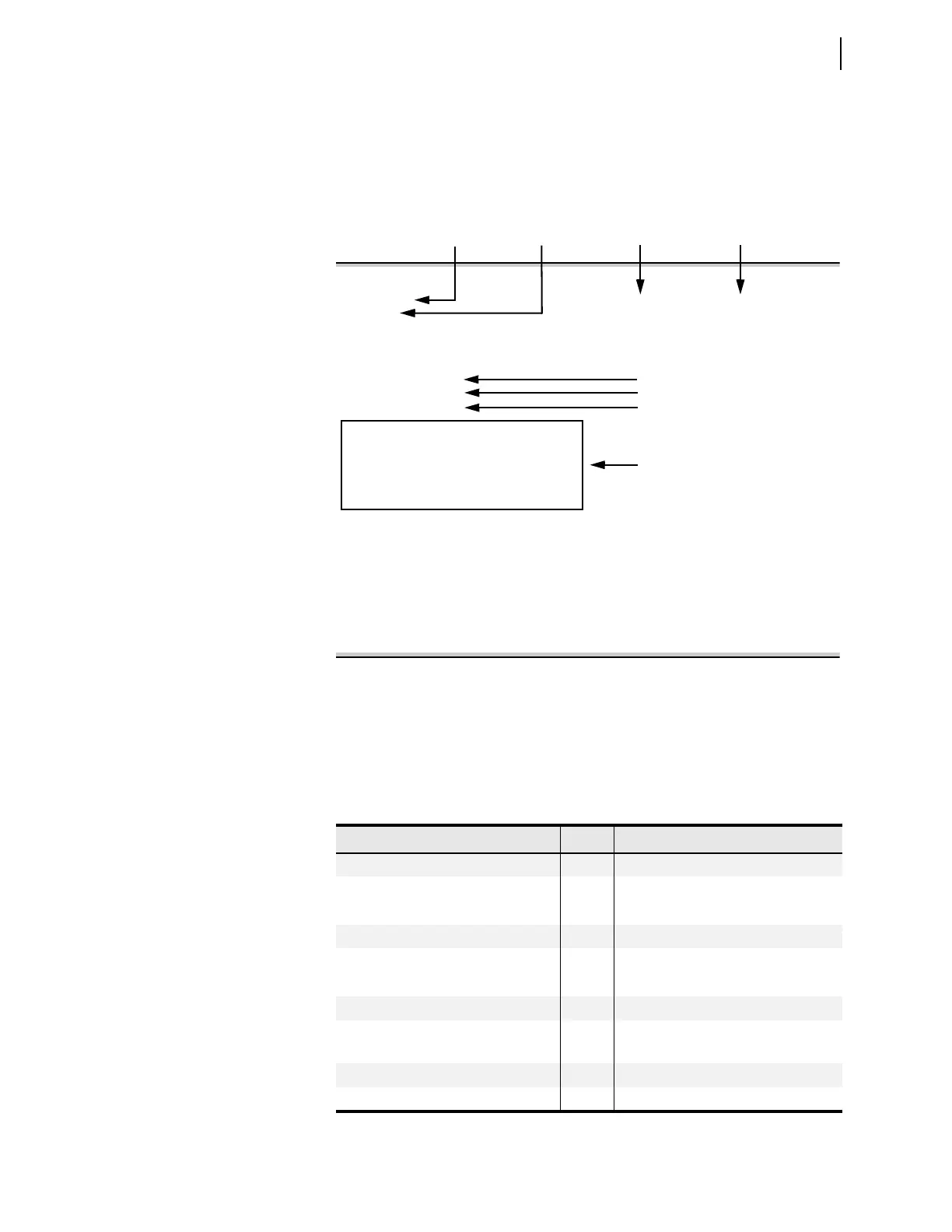

Figure 9.1 Example Event Summary
Table 9.2 Currents and Voltages
Values Units Description
Currents (4 ACI)
IA, IB, IC, IN A Line
3I2 A Negative-Sequence
Currents (3 ACI/3 AVI)
IAX, IBX, ICX A Line
3I2X A Negative-Sequence
Voltages (3 AVI or 3 ACI/3 AVI)
VA, VB, VC or
VAB, VBC, VCA
V
V
DELTA Y : = WYE
DELTA_Y := DELTA
Other
HZ Hz System Frequency
=>>SUM <Enter>
SEL-2414 Date: 05/30/2005 Time: 06:54:12.662
DEVICE
Serial No = 2005XXXXXXXXXXX
FID = SEL-2414-R202-V0-Z003003-D20080429
CID = 0100
EVENT = Trigger
TARGETS = 00000000
FREQ (Hz) = 60.0
Current Mag
IA IB IC IN
(A) 2527.2 2534.6 2540.0 0.12
Voltage Mag
VAB VBC VCA
(V) 2129 2126 3705
Analog Input Slot 3
TX_TRFR 0.008 mA
AI302 0.016 mA
AI303 0.024 mA
AI304 0.033 mA
AI305 0.041 mA
AI306 0.049 mA
AI307 0.057 mA
AI308 0.065 mA
=>>
Event Type
Event
Date
Event
Time
Device
Identification
Terminal
Identification
Event Targets
Event Frequency
Primary Magnitudes of
Currents and/or Voltages
