Sel 2414 - Edit (New, Open, Read) Settings; File > New

3.6
SEL-2414 Transformer Monitor Instruction Manual Date Code 20130214
Getting Started
ACSELERATOR QuickSet
Edit (New, Open,
Read) Settings
Begin the settings process by selecting New, Open, or Read from the launchpad
shown in Figure 3.2,
ACSELERATOR QuickSet launchpad, or by selecting File >
New, File > Open, or File > Read from the menu bar, as shown in Figure 3.2.
File > New
Selecting the New menu item creates new settings files. ACSELERATOR QuickSet
makes the new settings files from the driver that you specify in the Settings Edi-
tor Selection dialog box.
ACSELERATOR QuickSet uses the Z number in the FID
string to create a particular version of settings. To get started making SEL-2414
settings with the Device Editor in the Editor Mode, select Settings > New from
the main menu bar, and SEL-2414 and 002 from the Settings Editor Selection
window as shown in Figure 3.6.
After device model and settings driver selection, ACSELERATOR QuickSet pres-
ents the Device Part Number dialog box. Use this dialog box to configure the
Device Editor to produce settings for a device with options determined by the
part number, as shown in Figure 3.7. Press OK when finished.

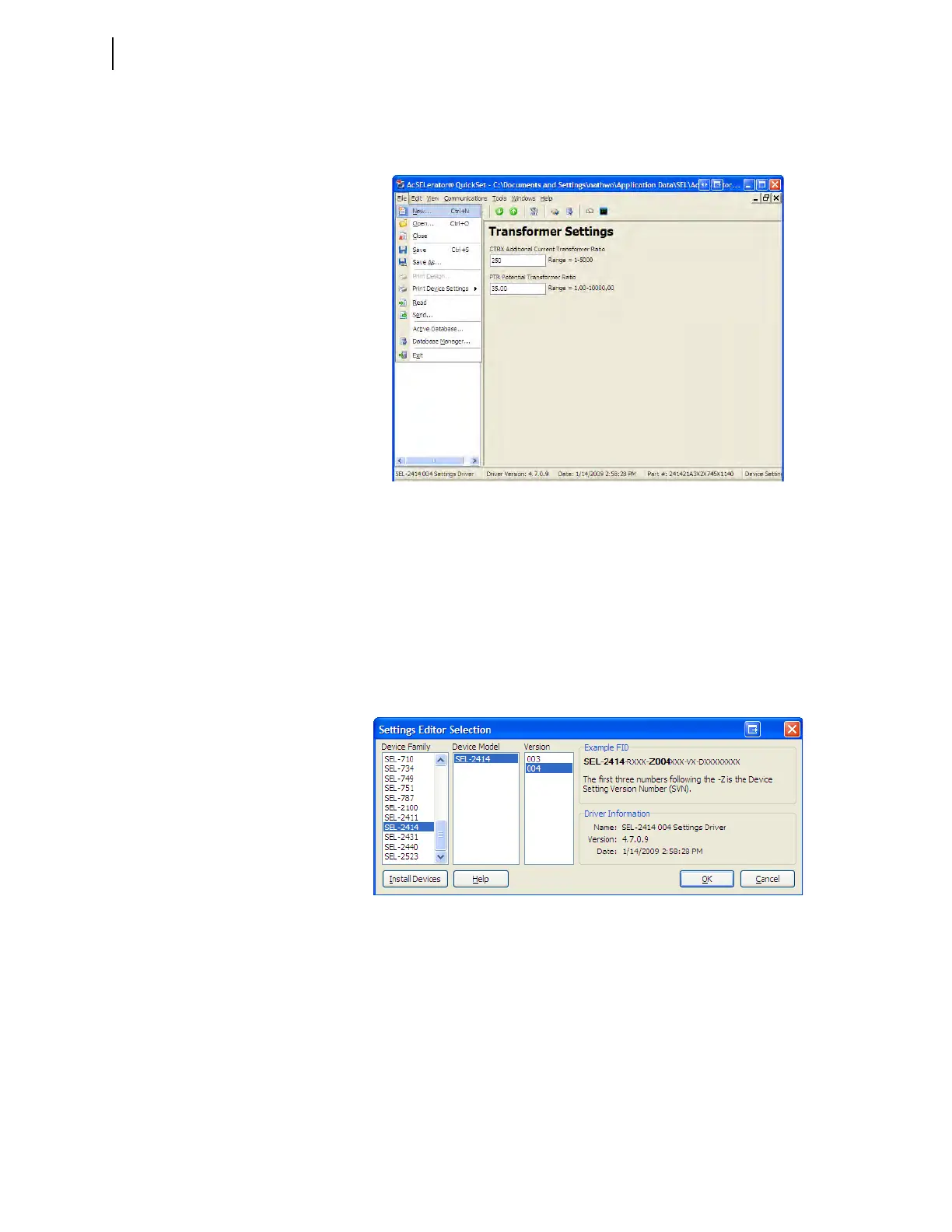

Figure 3.5 Creating a New Settings File
Figure 3.6 Selection of Drivers
