SEL-2414 Transformer Monitor Instruction Manual Date Code 20130214
Installation
Card Configuration
Digital Input/Output
Card (4 DI/4 DO)
Supported in any expansion slot (Slot C through Slot Z), this card has four digital
inputs and four outputs. The four outputs are either all normally open contact out-
puts, electromechanical, or fast high-current interrupting outputs. Table 2.14
shows the terminal allocation.
Digital Input/Output
Card (4 DI/3 DO)
Supported in any expansion slot (Slot C through Slot Z), this card has four digital
inputs and three outputs. The three outputs are one Form B output and two Form
C outputs. Table 2.15 shows the terminal allocation.
Changing Cards
Changing card positions, or expanding on the initial number of cards, requires no
card programming; the device detects the new hardware and updates the software
accordingly (you still have to program the I/O using the SET command).
Following a change in configuration, the device is always disabled until you
accept the new device configuration. You can accept the new device configura-
tion in two ways, depending on the AUTO setting (Port settings). In the following
steps, Step 6 describes accepting the new configuration with the AUTO setting =
Y, and Step 7 and Step 8 describe accepting the new configuration with the

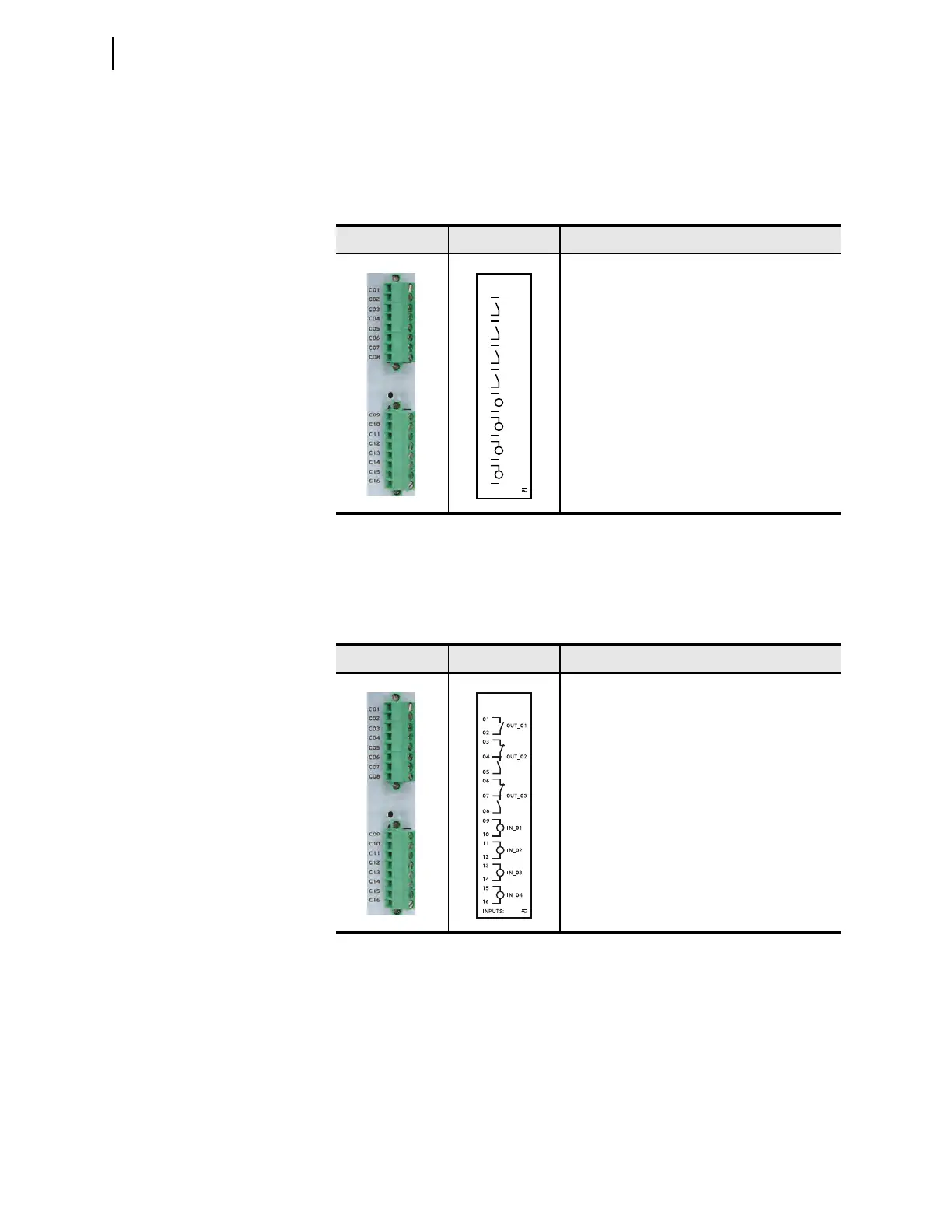

Table 2.14 Four Digital Input/Four Digital Output Card (SELECT 4DI/4DO)
Terminal Allocation
Term i n a l s Label Description
OUT01, driven by OUTx01 SELOGIC equation
OUT02, driven by OUTx02 SEL
OGIC equation
OUT03, driven by OUTx03 SEL
OGIC equation
OUT04, driven by OUTx04 SEL
OGIC equation
IN01, drives INx01 element
IN02, drives INx02 element
IN03, drives INx03 element
IN04, drives INx04 element
INPUTS:
11
12
09
10
IN_01
IN_02
IN_03
IN_04
OUT_01
01
02
OUT_02
13
14
OUT_03
15
16
OUT_04
03
04
05
06
07
08
Table 2.15 Four Digital Input/Three Digital Output Card (SELECT 4DI/3DO)
Terminal Allocation
Term i n a l s Label Description
OUT01, driven by OUTx01 SELOGIC equation
OUT02, driven by OUTx02 SEL
OGIC equation
OUT03, driven by OUTx03 SEL
OGIC equation
IN01, drives INx01 element
IN02, drives INx02 element
IN03, drives INx03 element
IN04, drives INx04 element
