2.14
SEL-2414 Transformer Monitor Instruction Manual Date Code 20130214
Installation
Rear-Panel Connections

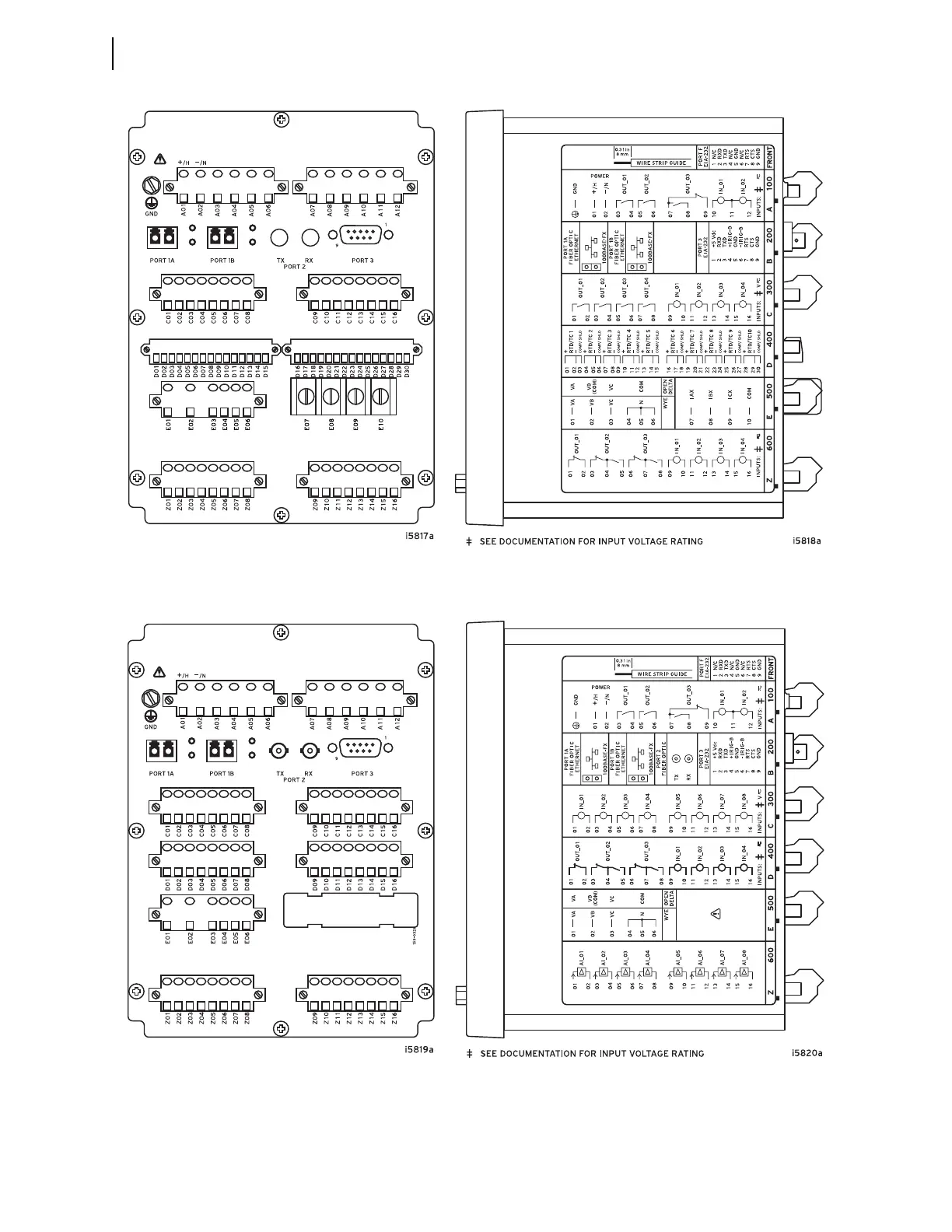

Figure 2.6 Dual Fiber Ethernet, EIA-232, 4 DI/4 DO, 10 RTD/TC, 3 CT/3 PT, 3 DI/4 DO
(A) Rear-Panel Layout (B) Side-Panel Input and Output Designations
Figure 2.7 Dual Fiber Ethernet, Fiber Serial, EIA-232, 3 DO/2 DI, 8 DI, 3 DO/4 DI, 3 PT, 8 AI
(A) Rear-Panel Layout (B) Side-Panel Input and Output Designations
