 Be noted that the default sensor position is 22mm, defined to detect standard EPAL pallet corner,
with a range of 17 +4/-2, or smaller size.

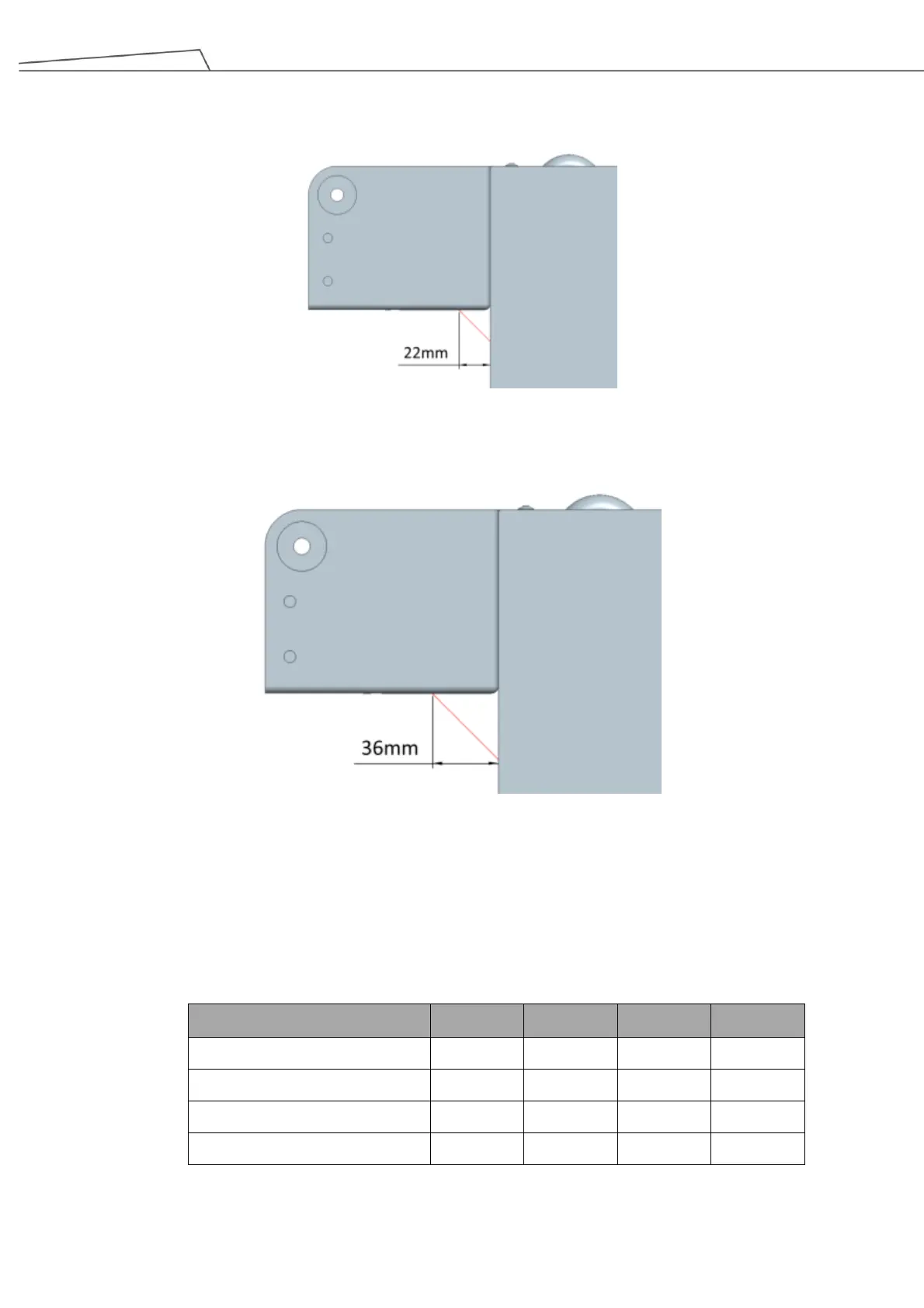

Figure 76: Default sensor position
 The maximum sensor position is defined to detect pallet corner chamfer up to 36mm.
Figure 77: Maximum sensor position
For detailed specifications about EPAL EURO PALLET, visit their official website.
5.8 Connecting Power Supply to TM Palletizing Operator
1. Before establishing the AC power connections, refer to the table below regarding the AC input
specifications of the TM Palletizing Operator.
Parameter
Min.
Typical
Max.
Unit
Input voltage
100
-
240
VAC
External AC fuse (100V – 120V)
-
-
17
A
External AC fuse (220V – 240V)
-
-
11
A
Input frequency
43
-
63
Hz
Table 22: AC Input Specifications of TM Palletizing Operator
