5.2.5 Installing Adjustable Flexible Gripper

TM Adjustable Flexible Gripper can be installed in 2 positions: centered or 10cm shifted.

By default, the gripper is delivered in centered position.

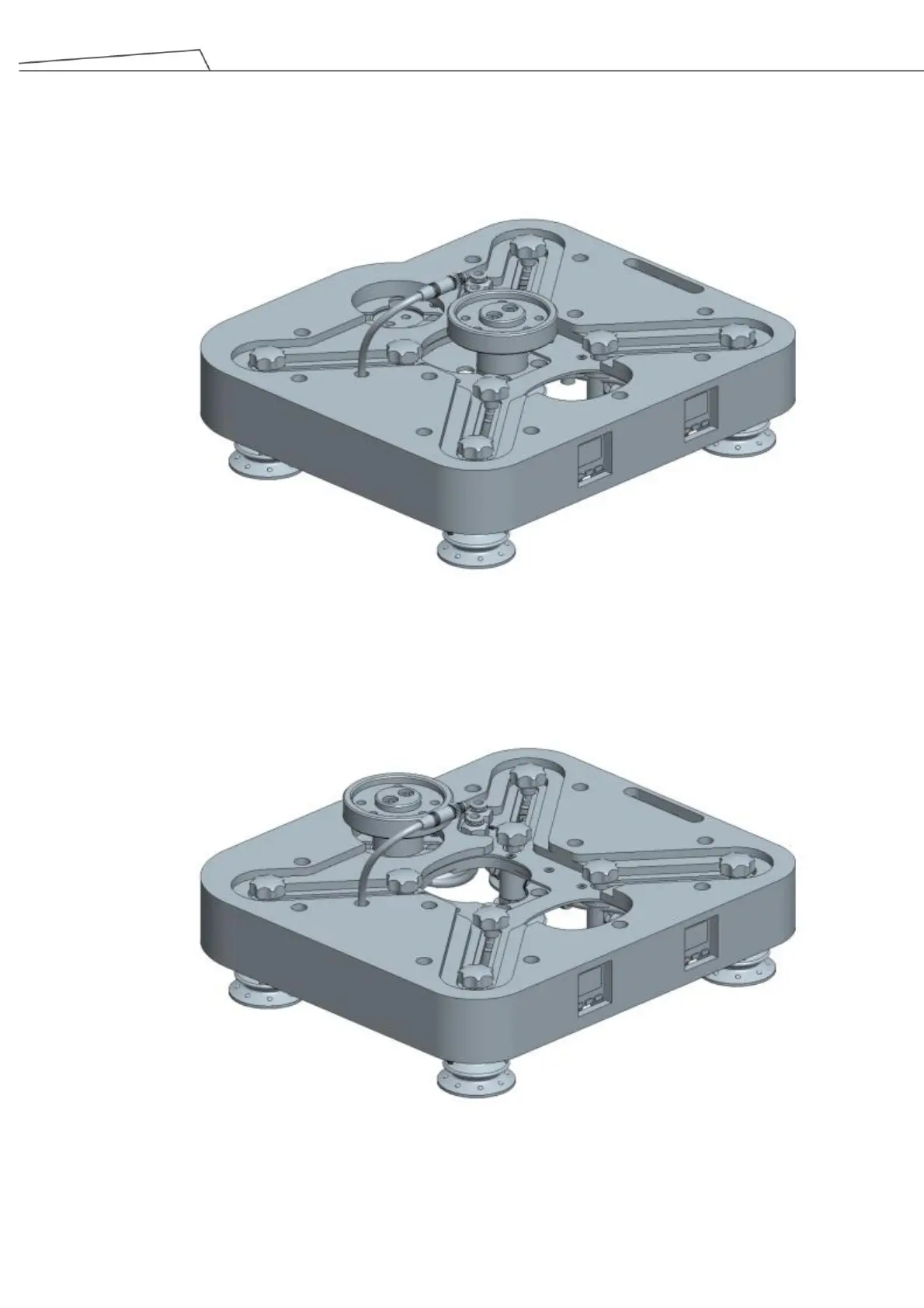

Figure 49: Gripper flange at centered position as delivered

If users wish to change the gripper flange to 10cm-shifted position, follow the steps in the following

sub-sections.

Figure 50: Gripper flange at shifted position
