Techman Robot TM Palletizing Operator - Figure 91: Import the Pallet Tool; Figure 92: TCP Values for Non-Shifted Gripper

To Next Page

To Previous Page

TM Palletizing Operator User’s Manual Product Version: 1.0 / Document Version: 1.0 110

3. Click “Open” and import “TMOperator_TMROBOT_pallet_tool” from the Import menu.

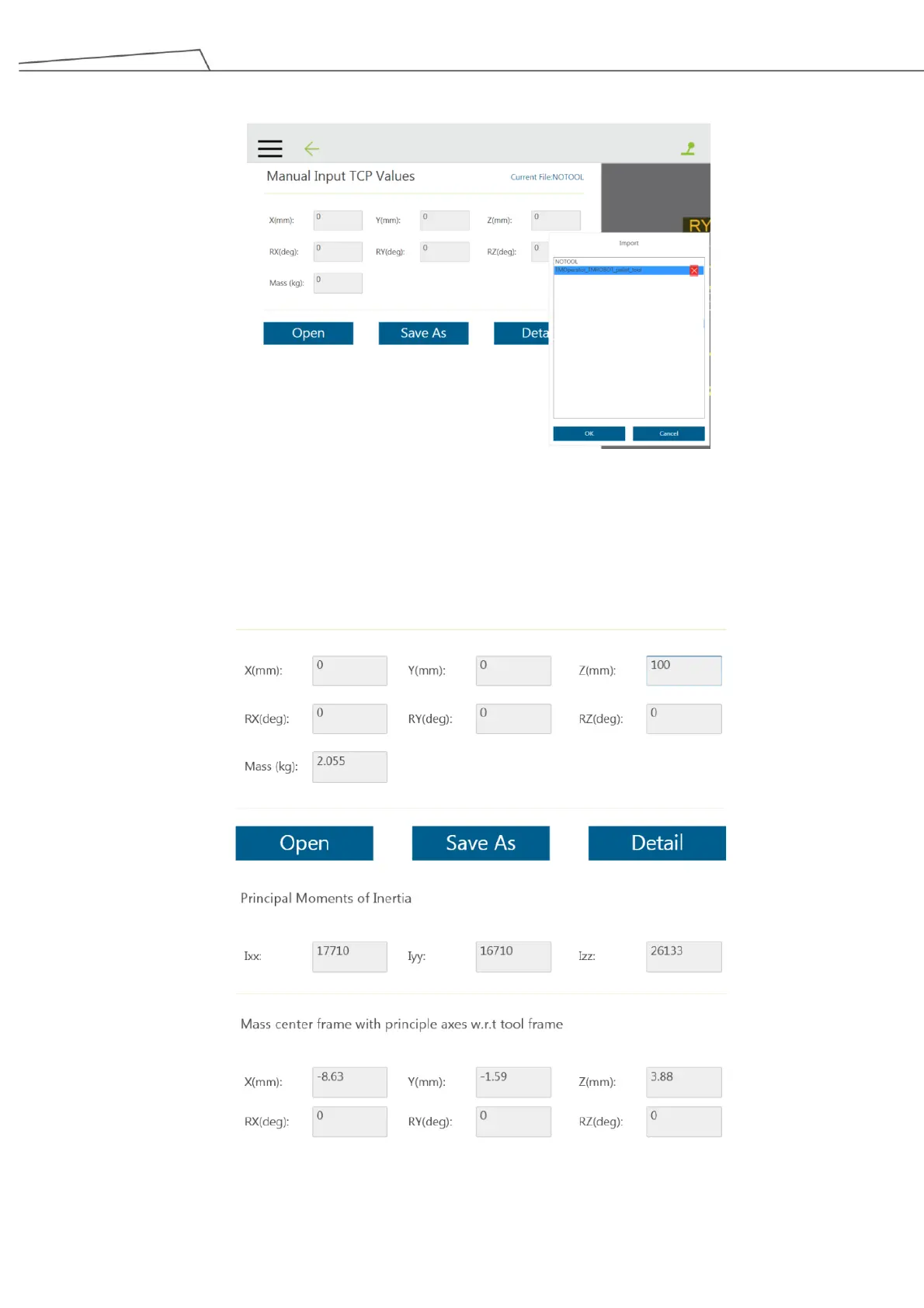

Figure 91: Import the pallet tool

4. Enter the appropriate TCP values depending on whether your gripper is shifted or not. Click “Apply”

when all the appropriate values are entered.

Non-shifted Gripper:

Figure 92: TCP values for non-shifted gripper
