Techman Robot TM Palletizing Operator - Figure 47: Wire the Robot Cable through Notch; Figure 48: Reinstallation of the Side Cover

To Next Page

To Previous Page

TM Palletizing Operator User’s Manual Product Version: 1.0 / Document Version: 1.0 83

2. Be sure to wire the robot connection cable through the notch of the housing as shown.

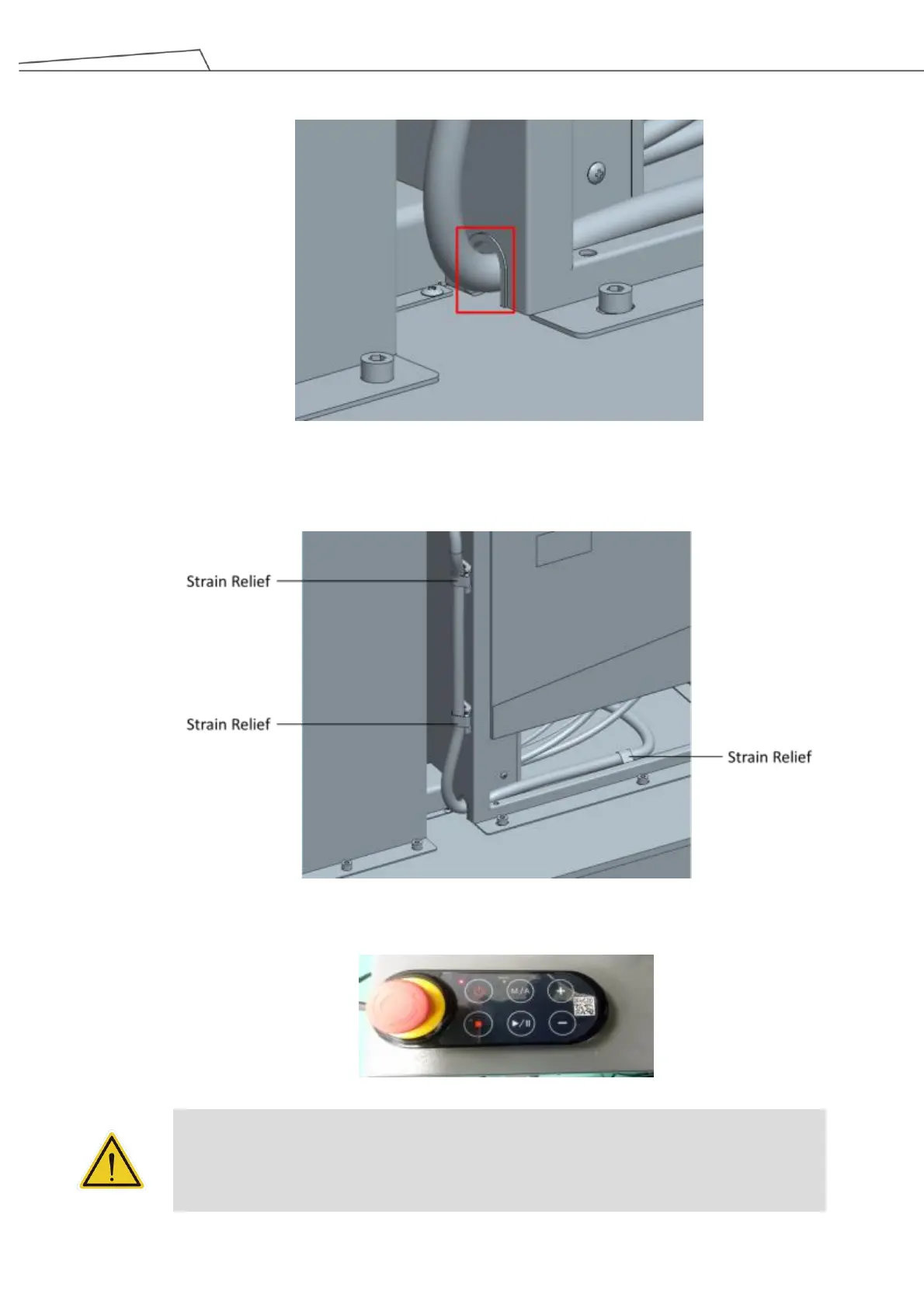

Figure 47: Wire the robot cable through notch

3. Apply strain reliefs to fix the cables in place.

4. Then reinstall the side covers of the rear housing.

Figure 48: Reinstallation of the side cover

5. Place the robot stick on the top cover or inner side of the side cover.

WARNING:

Do NOT simultaneously use both pendant and stick to initialize or to control robot motion.

When using a teach pendant, user is responsible for ensuring that the stick is immediately

stored out of sight and reach of personnel working on the robot.
