Techman Robot TM Palletizing Operator - Figure 111: Robot List; Figure 112: Import Selected Components

To Next Page

To Previous Page

TM Palletizing Operator User’s Manual Product Version: 1.0 / Document Version: 1.0 127

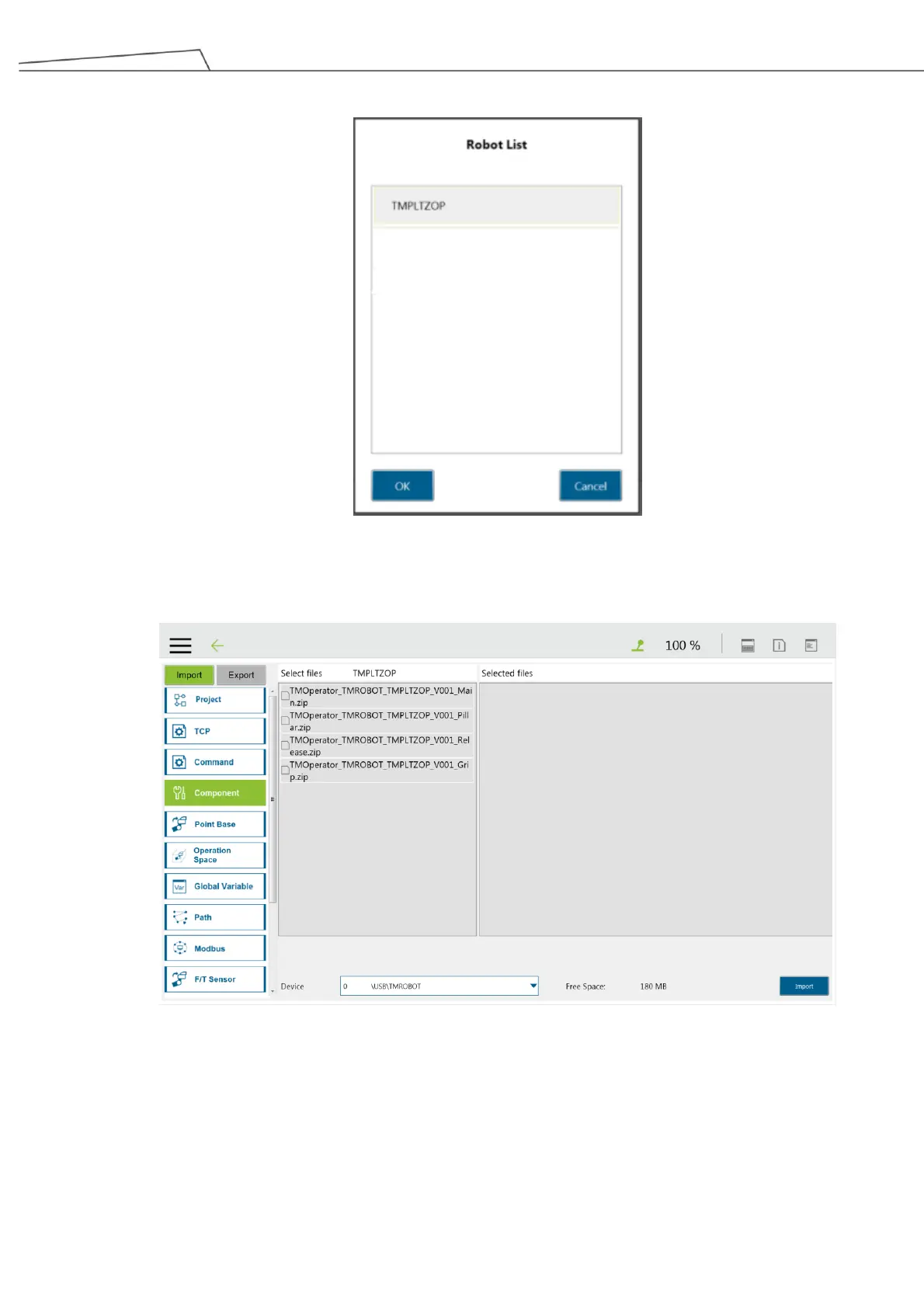

3. On Robot List, select your robot name and click or tap OK.

Figure 111: Robot list

4. Click or tap Compoent and select the components as listed.

Figure 112: Import selected components
