TM Palletizing Operator User’s Manual Product Version: 1.0 / Document Version: 1.0 80

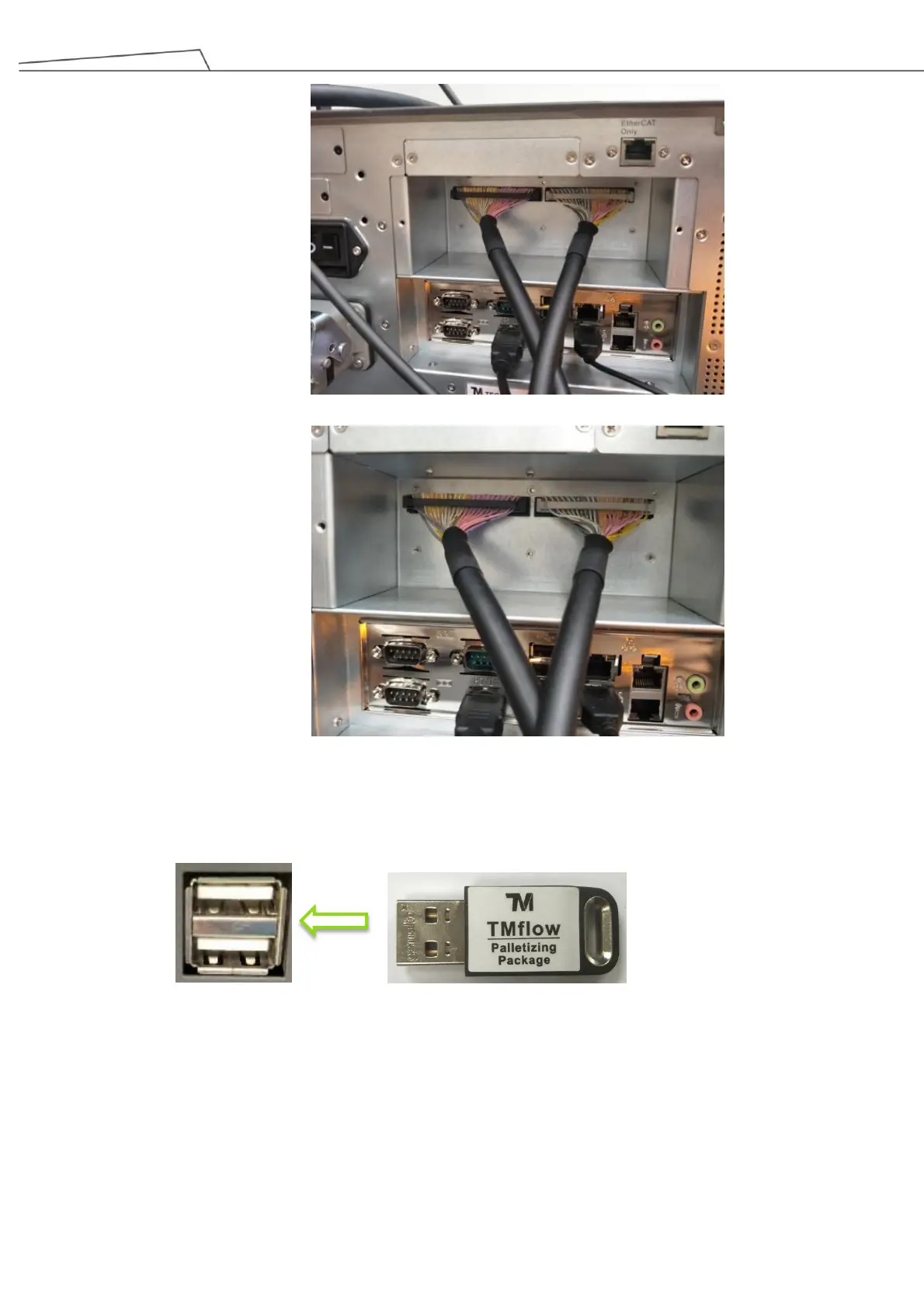

Figure 44: All cables are firmly plugged

6. Insert the supplied USB dongle into an available USB port.

7. Secure the bracket plates of the control box onto the base. Apply 4 x M6 screws to tighten the plates

so that the control box is securely fixed.
